operating modes: PUSH & PULL. The mode is selected by
moving the mode control lever to the appropriate position.
“A” for push (piston advances) and “B” for
pull
(pisto
n retracts) in either mode, simply press the switch to
move the piston
NB: The movement of the piston is limited by a safety valve. To
prevent overheating , release the trigger switch when the piston has
reached its travel limit.

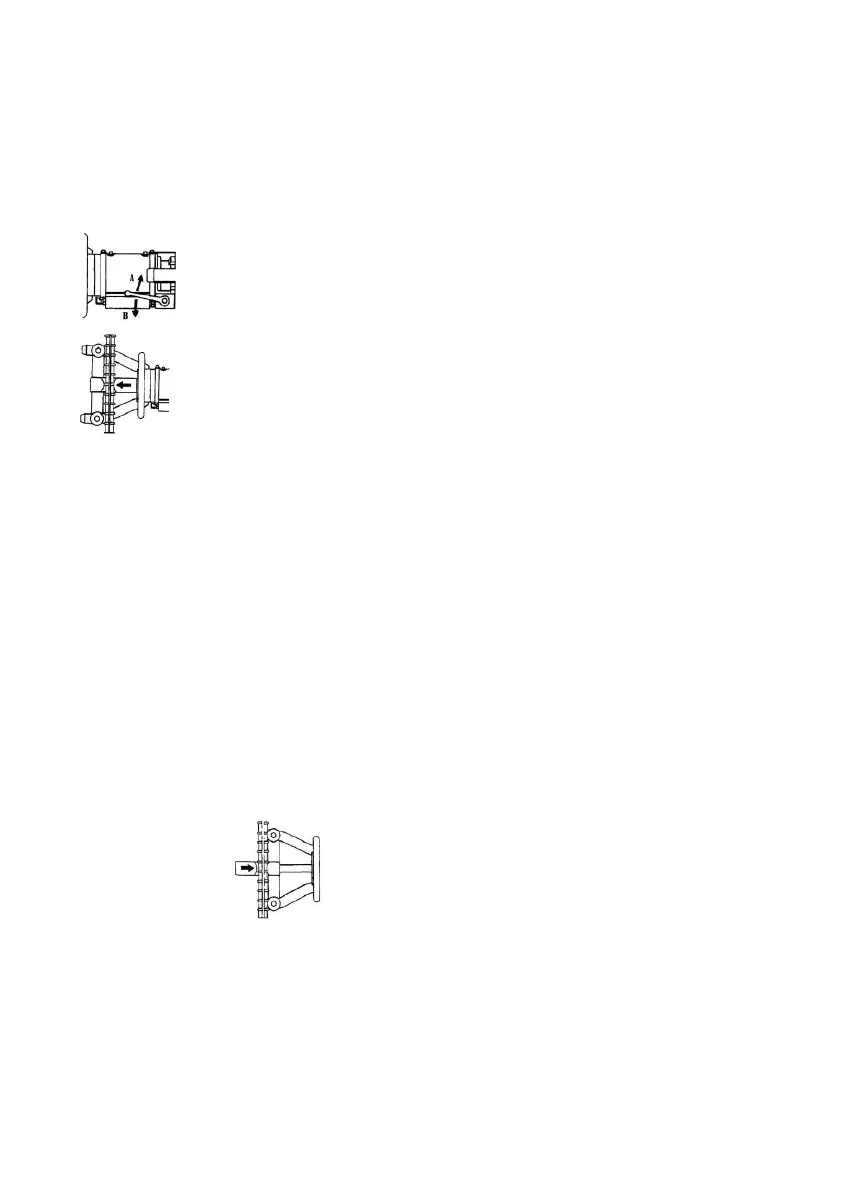

TO PUSH
Advance or retract the piston so that the hook is in a suitable starting
position . Set the mode control lever to “A” and fit the rebar as shown
at the left. Pull the trigger switch until the rebar is at the desired angle.
TO PULL
Set the hook in the correct starting position, make sure that the mode
control lever is in the “B” position and fit the rebar as illustrated . Pull
the trigger switch until the desired angle is attained.
