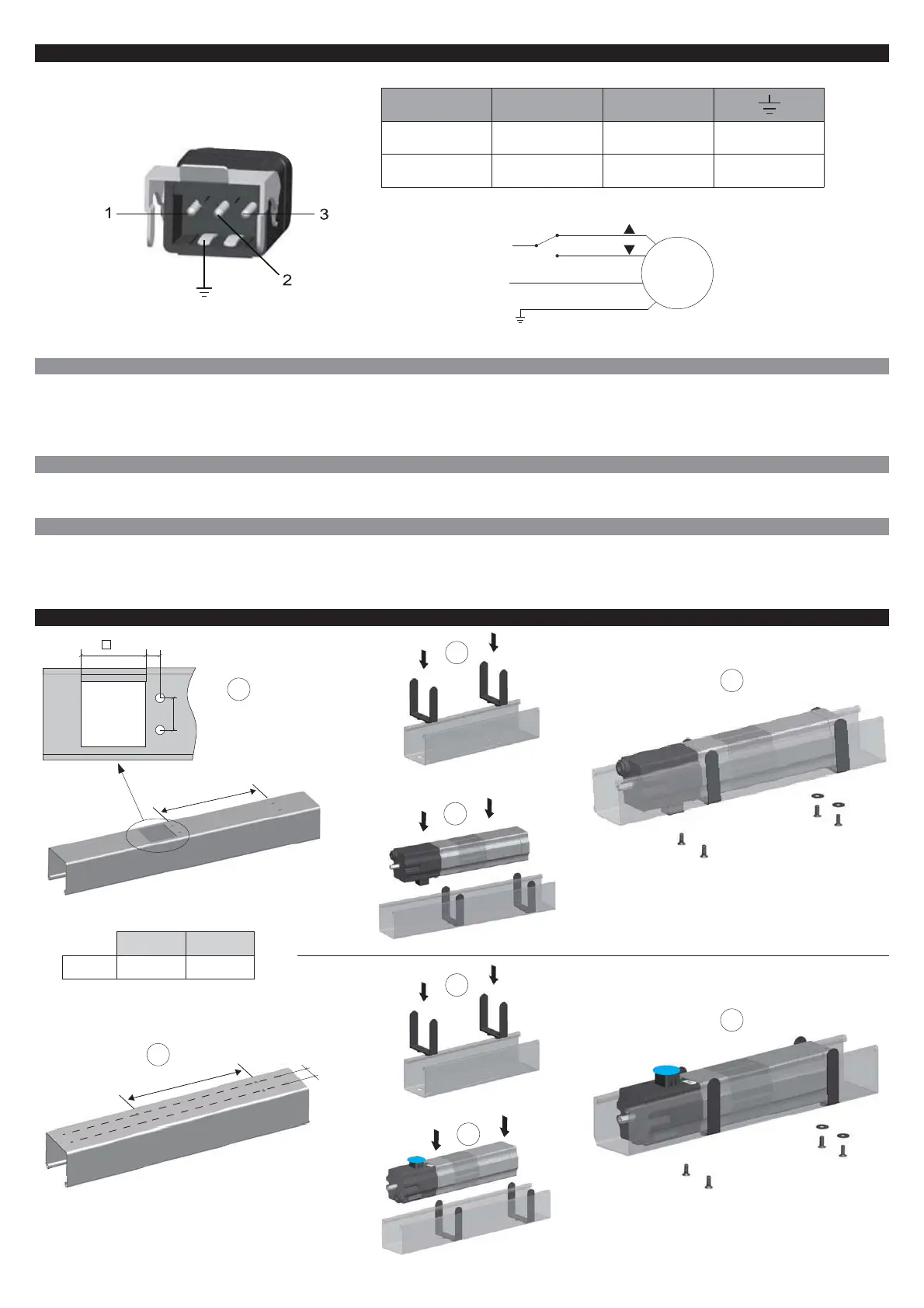

03. ELECTRICAL CONNECTIONS
03.1 Warnings
This motor has been designed to work with a stable power source Make connections with power supply disconnected Check that the power supply does not depend from electrical
circuits for lighting Always connect the motor to the grounding system (yellow/green) The supply line must be equipped with a circuit breaker. The supply line must be fitted with
●●
●●
a device with a voltage category III, i.e. the distance between the contacts must be of 3,5 mm at least You must use buttons with spring return ("hold-to-run" type), do not use buttons
with maintained position Command buttons are connected to the main voltage, so they must be properly insulated and protected The section of the connecting cables must be
proportionate to their length and to the absorption of the load, and in any case not less than 1,5 mm
●
● ●
03.2 Power supply
Connect the motor as shown in the diagram. It is mandatory to connect the motor to the grounding system. The electrical specifications of the motor are shown on
the label applied to the motor tube.
02
M
1
3
2
N
L
03.3 Command button
A momentary position button ("hold-to-run") with mechanical interlock must be used, do not use maintained position switches. It is absolutely forbidden to
connect several control buttons in parallel! The control button is subjected to the mains voltage and must therefore be adequately insulated and protected.
04. INSTALLATION
44
22
L
1
2
3
L (mm)
156 190
2x4,5 Nm 2x9,5 Nm
4
M6x12
M5x12
L
2
M6x12
M5x12
4
3
1
22
10
