03
06. HOW TO SET LIMIT SWITCH
1- Press and keep pressing UP
2- Press the GREEN button for about 5 seconds and then release.
The GREEN button remains pressed.
3- *When the desired position is reached, stop the motor
4- Press DOWN briefly: the GREEN button returns to its position.
The limit switch has been fixed.
*
If the desired position is exceeded, an incorrect limit switch must be set anyway (by briefly pressing DOWN, the GREEN button returns to its position and fixes
the limit switch), move away from the limit switch just set and repeat the procedure.
Before starting the adjustment, check that the motor turns in both directions: it must not be in the limit switch.
06.1 UP limit switch adjustment
CLOCKWISE
=
UP
IMPORTANT:
Looking at the motor from the black plastic part:
1- Press and keep pressing DOWN
2- Press the WHITE button for about 5 seconds and then release.
The WHITE button remains pressed.
3- *When the desired position is reached, stop the motor
4- Press UP briefly: the WHITE button returns to its position.
The limit switch has been fixed.
*
If the desired position is exceeded, an incorrect limit switch must be set anyway (by briefly pressing UP, the WHITE button returns to its position and fixes the
limit switch), move away from the limit switch just set and repeat the procedure.
06.2 DOWN limit switch adjustment

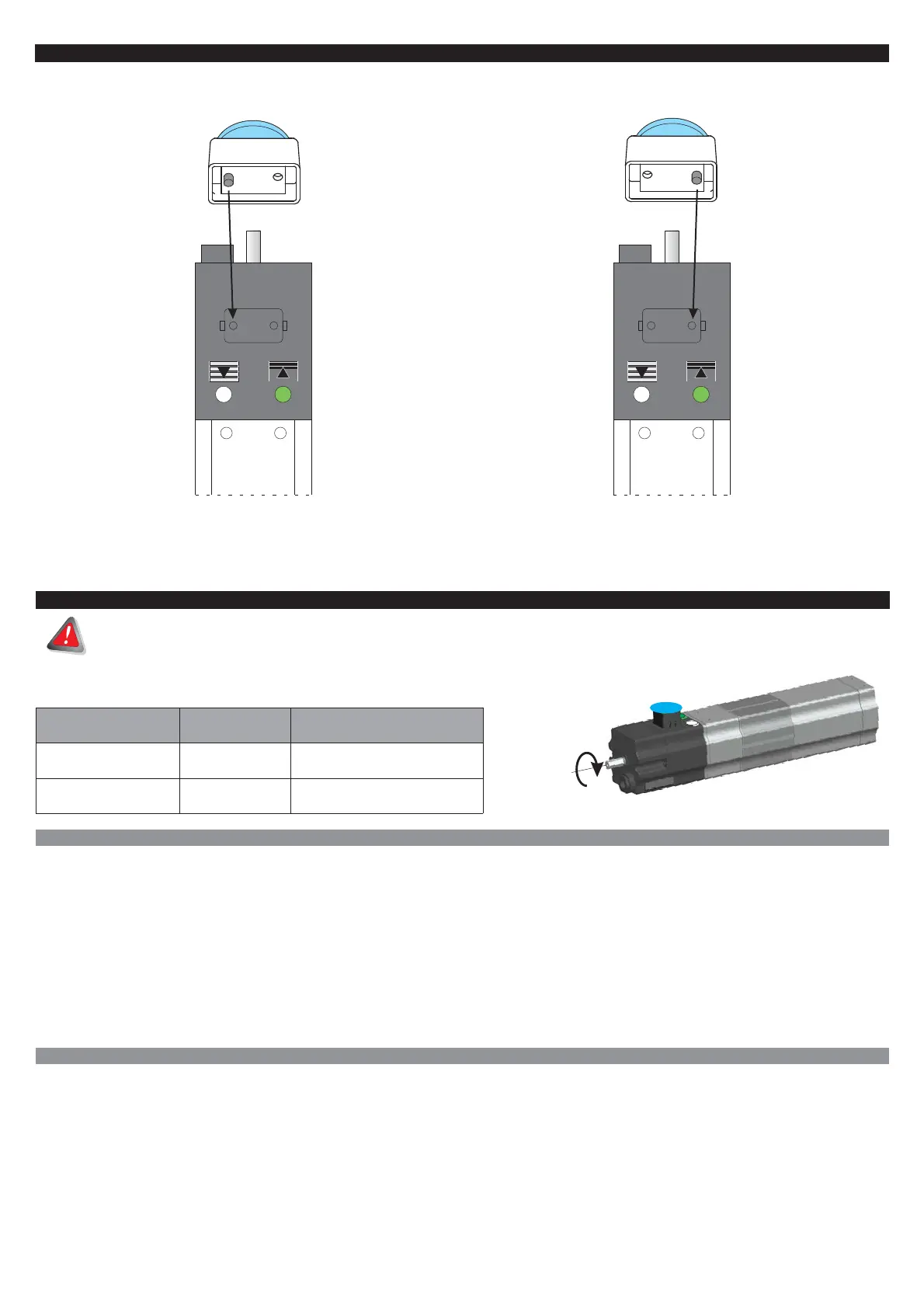

05. STOP BUTTON ASSEMBLY
The STOP button allows you to stop only one of the maneuvers: depending on how it is mounted, it will stop only the UP maneuver or only the
DOWN maneuver.
DOWN maneuver stop UP maneuver stop
