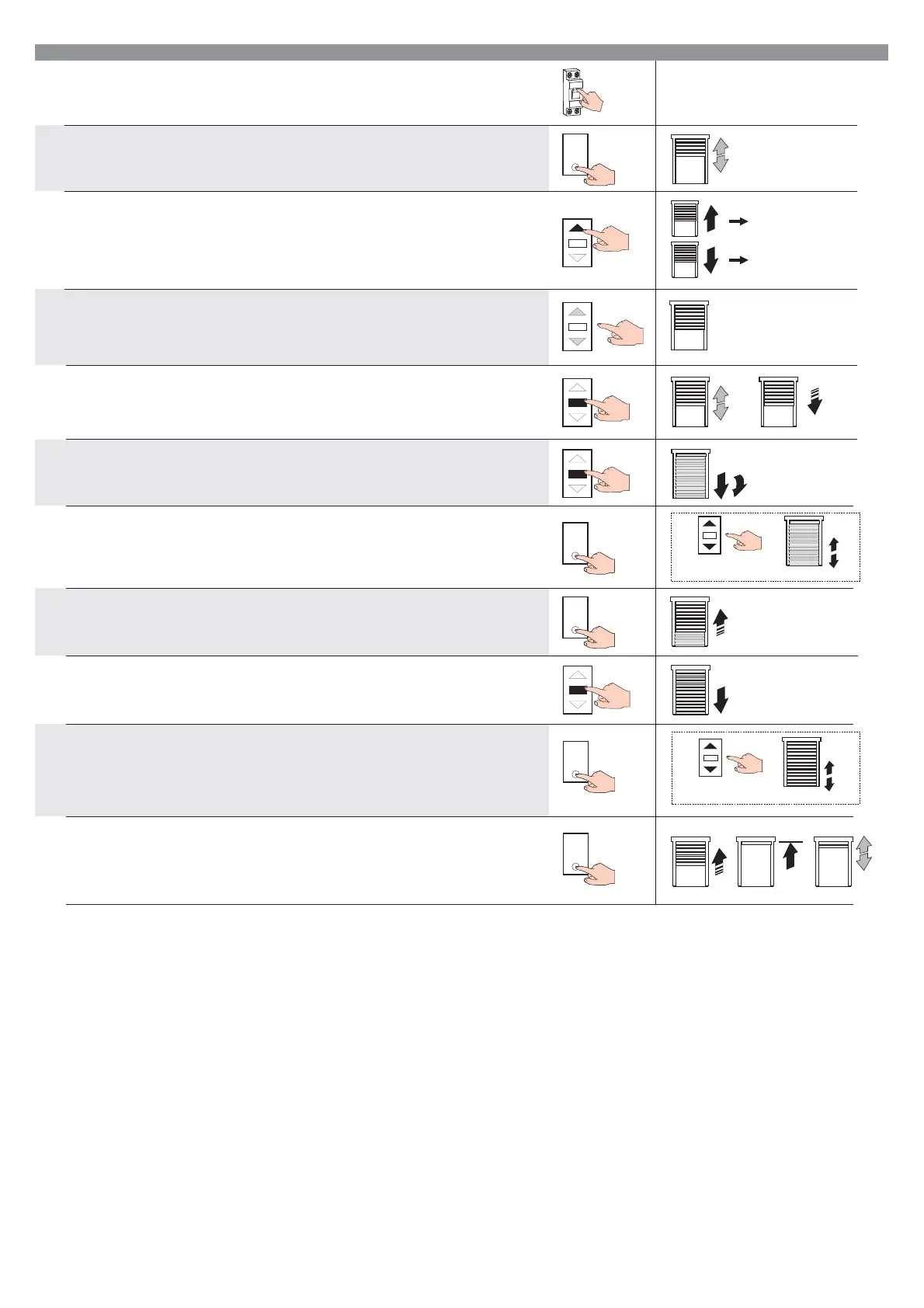

07.3 ROLLER SHUTTER WITHOUT ANTI-LIFTING DEVICES AND WITH STOPPER
1- Connect the power supply.
2- Press PROG briefly (within 1 minute).
The motor makes a signal
3-
Press briefly UP.
If the motor moves downward return to point 2,
if the motor moves upward go to point 4.
4-
Bring the roller shutter in an intermediate position,
keeping pressed UP or DOWN.
5- Press STOP briefly 3 times and wait.
The motor signals UP-DOWN (1). The motor moves downward
6-
Press STOP to stop the motor in the position 1 «Open slats»
7- Press PROG briefly.
If you want to make a fine adjustment of the limit switch press UP or DOWN
(motor moves in small steps)
8-
Press PROG briefly.
The motor moves upward and closes the slats
9-
Press STOP to stop the motor in position 2 «Close slats».
10- Press PROG briefly.
If you want to make a fine adjustment of the limit switch press UP or DOWN
(motor moves in small steps)
11-
Press PROG briefly.
The motor moves upward.
The motor automatically stops for pressure on the stopper.
The motor signals DOWN-UP. End of installation!!
