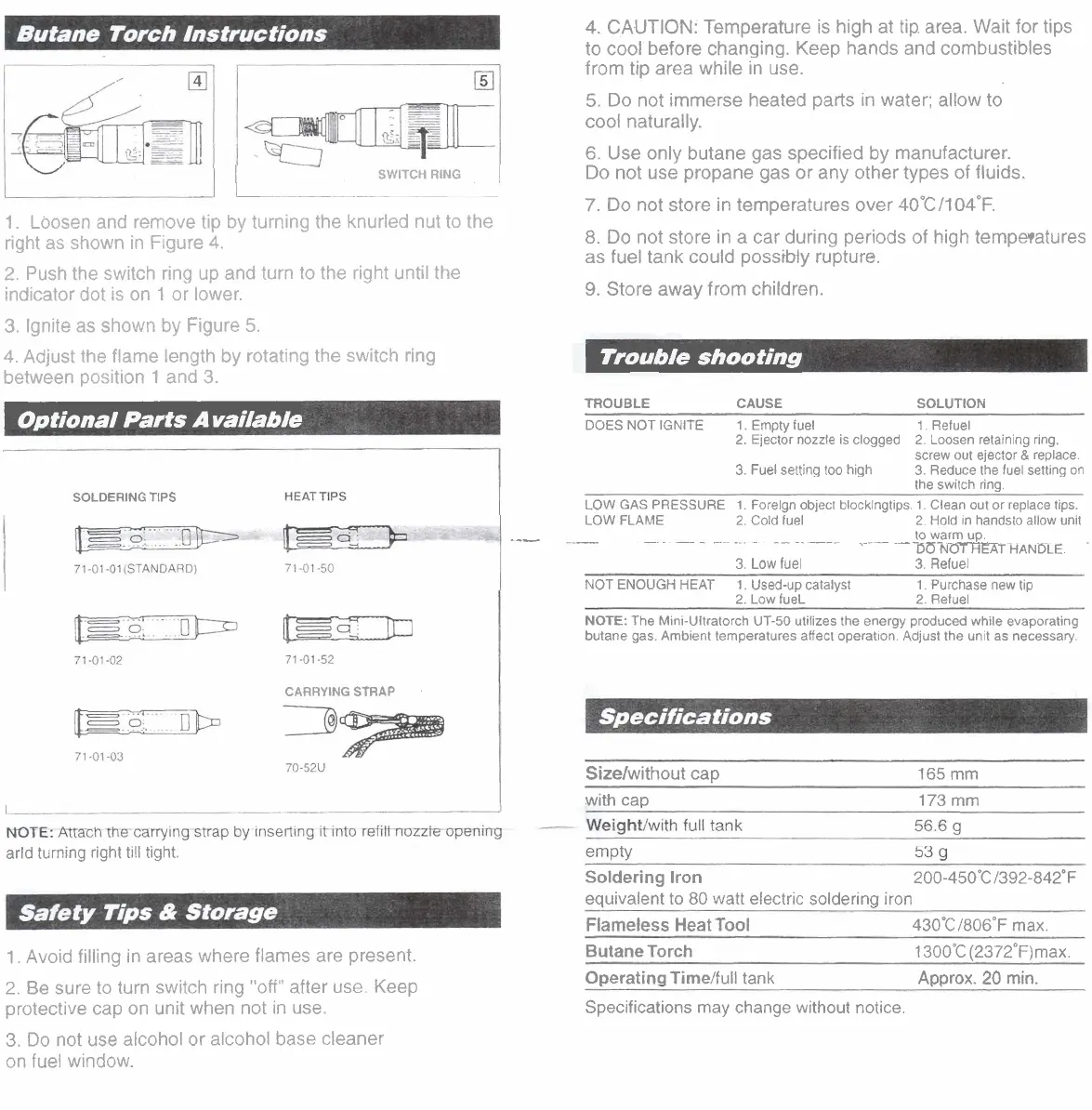

I
SWITCH RING
I
1.
Loosen and remove tip by turning the knurled nut to the
right as shown in Figure 4.
2.
Push the switch ring up and turn to the right until the
indicator dot is on
1
or lower.
3.
Ignite as shown by Figure
5.
4.
Adjust the flame length by rotating the switch ring
between position
1
and
3.
I
Optional Parts
A
vailable
SOLDERING TIPS
CARRYING STRAP
.
4.
CAUTION: Temperature is high at tip area. Wait for tips
to cool before changing. Keep hands and combustibles
from tip area while in use.
5.
Do not immerse heated parts in water; allow to
cool naturally.
6.
Use only butane gas specified by manufacturer.
Do not use propane gas or any other types of fluids.
7.
Do not store in temperatures over 4O0C/104"F.
8.
Do not store in a car during periods of high temperatures
as
fuel tank could possibly rupture.
9.
Store away from children.
1
Trouble shooting
-
TROUBLE CAUSE SOLUTION
DOES
NOT IGNITE
1.
Empty fuel
1.
Refuel
2.
Ejector nozzle is clogged
2.
Loosen retaining ring.
screw out ejector
&
replace.
3.
Fuel setting too high
3.
Reduce the fuel setting on
the switch ring.
LOW
GAS
PRESSURE
1.
Forelgn object blocklngtips.
1.
Clean out or replace tips.
LOW
FLAME
2.
Cold fuel
2.
Hold in handsto allow unit
---
-.
-
-
-
-
-
-.
.
-
-
-
-
.
--
-
-
*.
-
--
to warm up.
---i5u--T
HANDLE.
3.
Low fuel
3.
Refuel
NOT
ENOUGH
HEAT
1.
Used-up catalyst
1.
Purchase new tip
2.
Low fueL
2.
Refuel
NOTE:
The Mini-Ultratorch UT-50 utilizes the energy produced while evaporating
butane gas. Ambient temperatures affect operation. Adjust the unit as necessary.
Sizelwithout cap
165
mm
with
ca~
173
mm
arld turning right till tight.
1.
Avoid filling in areas where flames are present.
2.
Be sure to turn switch ring "off" after use. Keep
protective cap on unit when not in use.
3.
Do not use alcohol or alcohol base cleaner
on fuel window.
Soldering Iron 200-45O0C
1392-842°F
equivalent to
80
watt electric solderina iron
Flameless Heat Tool 430°C /806"F
max.
Butane Torch 1300°C
(2372'F)max.
Operating Time/full
tank
Approx.
20
min.
Specifications may change without notice.
