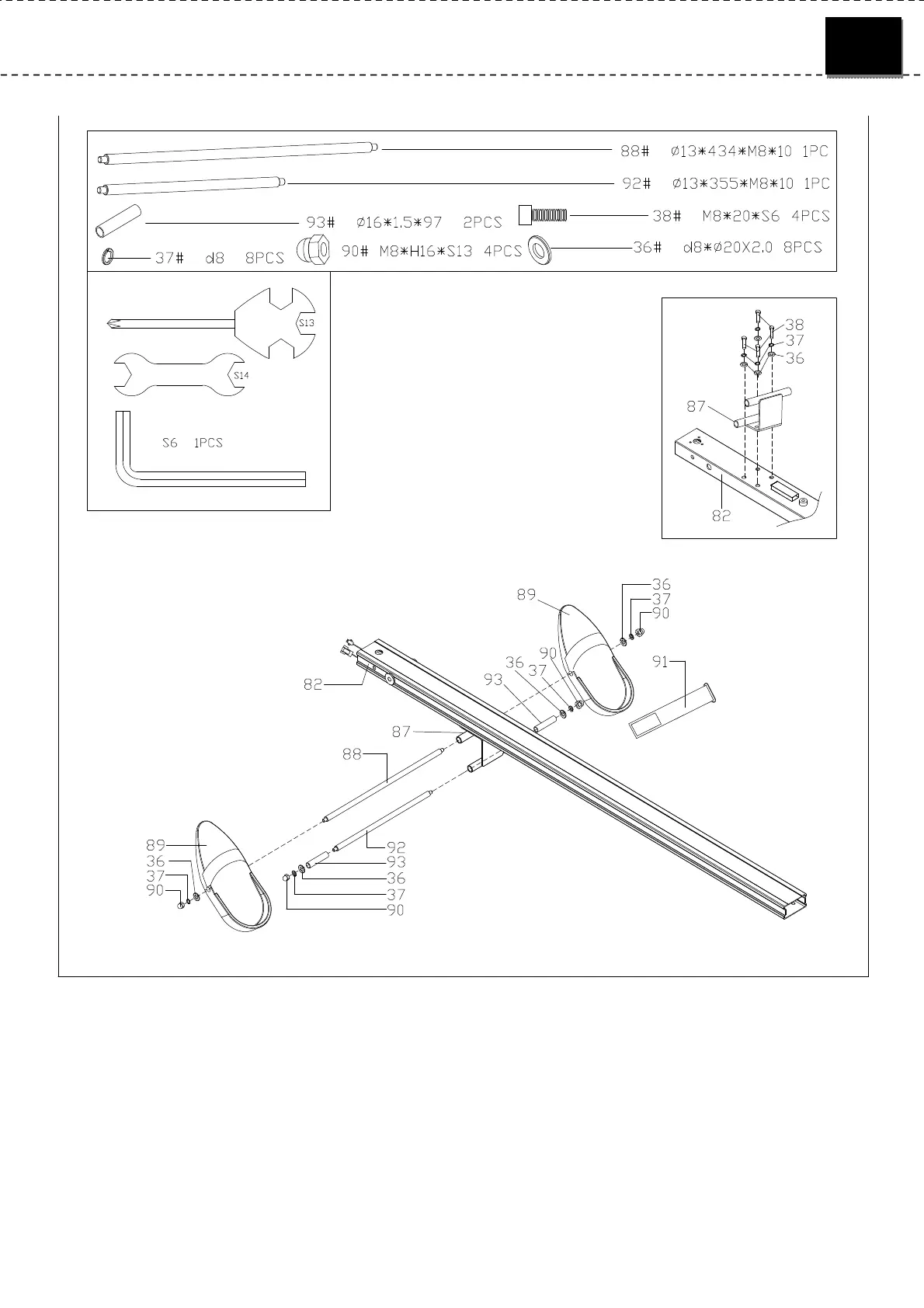

Step 2:
5. Connect the support for pedal (87) to the aluminum guide rail (82) with inner hex column head bolt (37),
spring washer (37) and washer (36).
6. Insert the long shaft for pedal and short shaft for pedal into the support for pedal (87) separately and the
insert the bush for pedal shaft (93) into the short shaft for pedal (92). At last fix them with cap nut (90),
washer (36) and spring washer (37). And the same way to fix the long shaft for pedal.
