Folding Steps

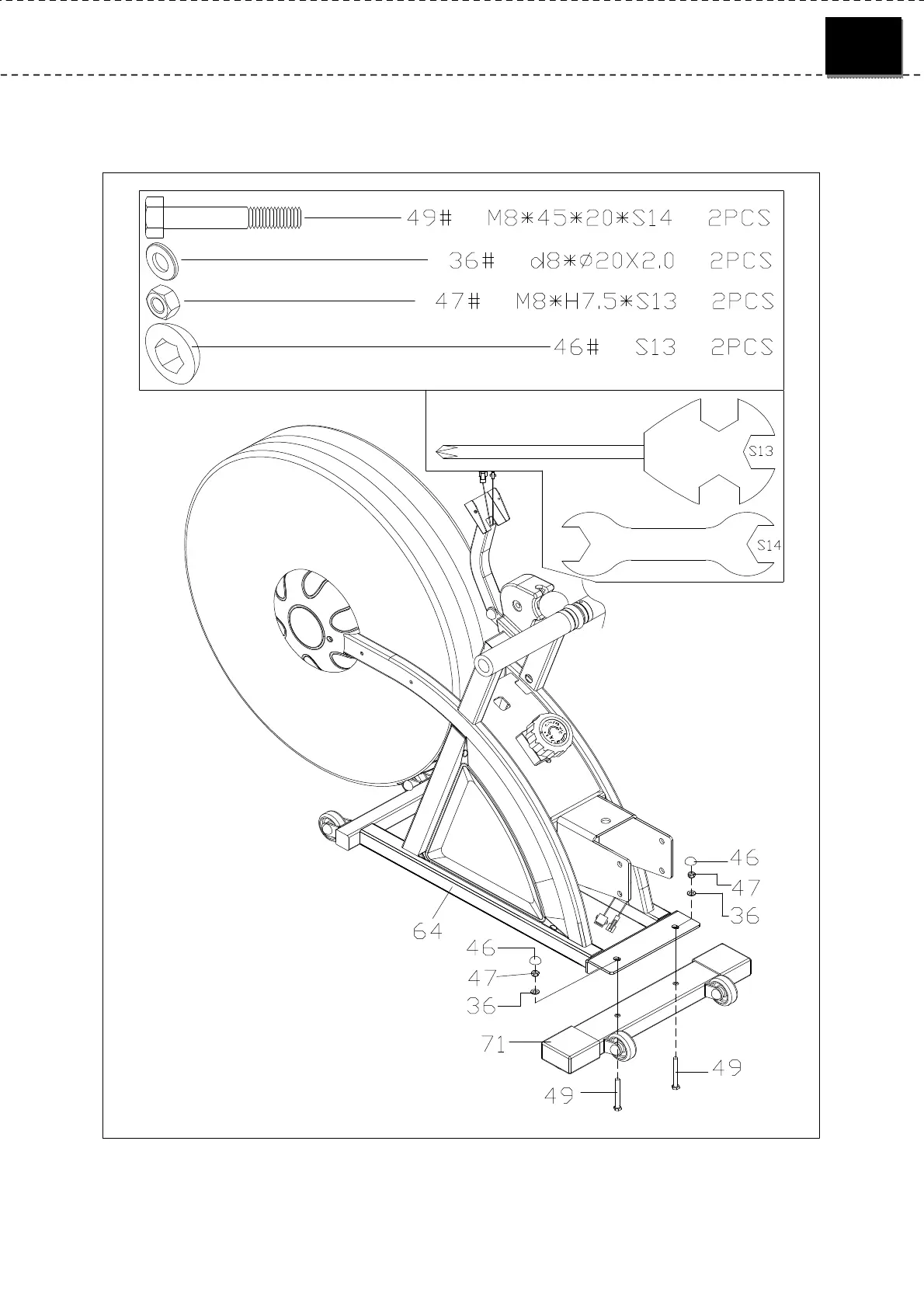

Step 1:
Fix the rear stabilizer (71) to the mainframe (64) with hex bolt (49), washer (36) and nylon nut (47) and then press
the cap (46) on them.
