Master V650 - Folding Step 4: Stabilizer and Pad Attachment

EN

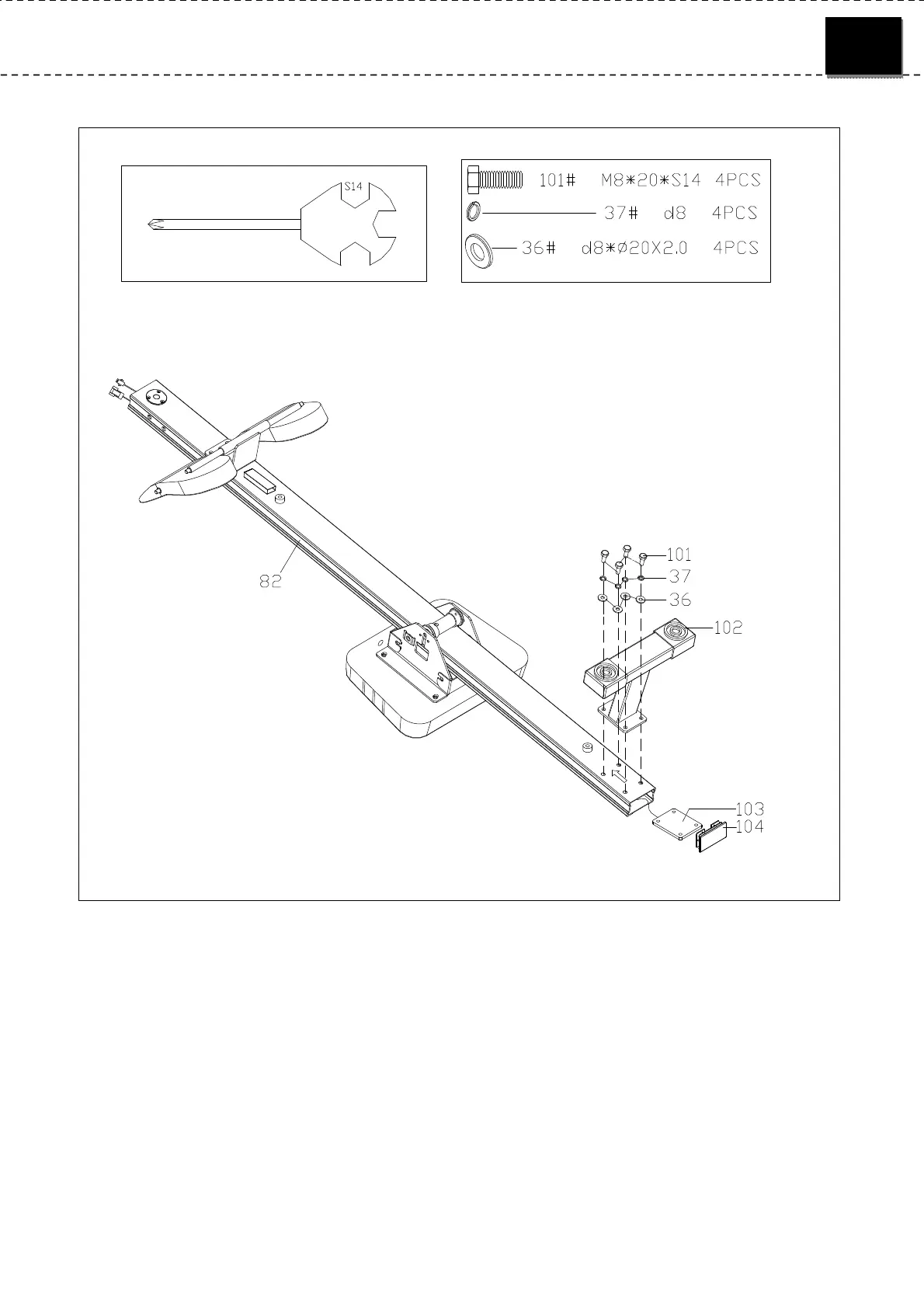

Step 4:
7. Fix the pad (95) to the aluminum guide rail with cross recessed pan head screw (97) and washer (96).
8. Put the nut board (103) into the inner of the aluminum guide rail (82). And then fix the rear stabilizer (102) to
the aluminum (82) with hex bolt (101), spring washer (37) and washer (36).
9. Press the cap for aluminum guide rail.
