STEP 04

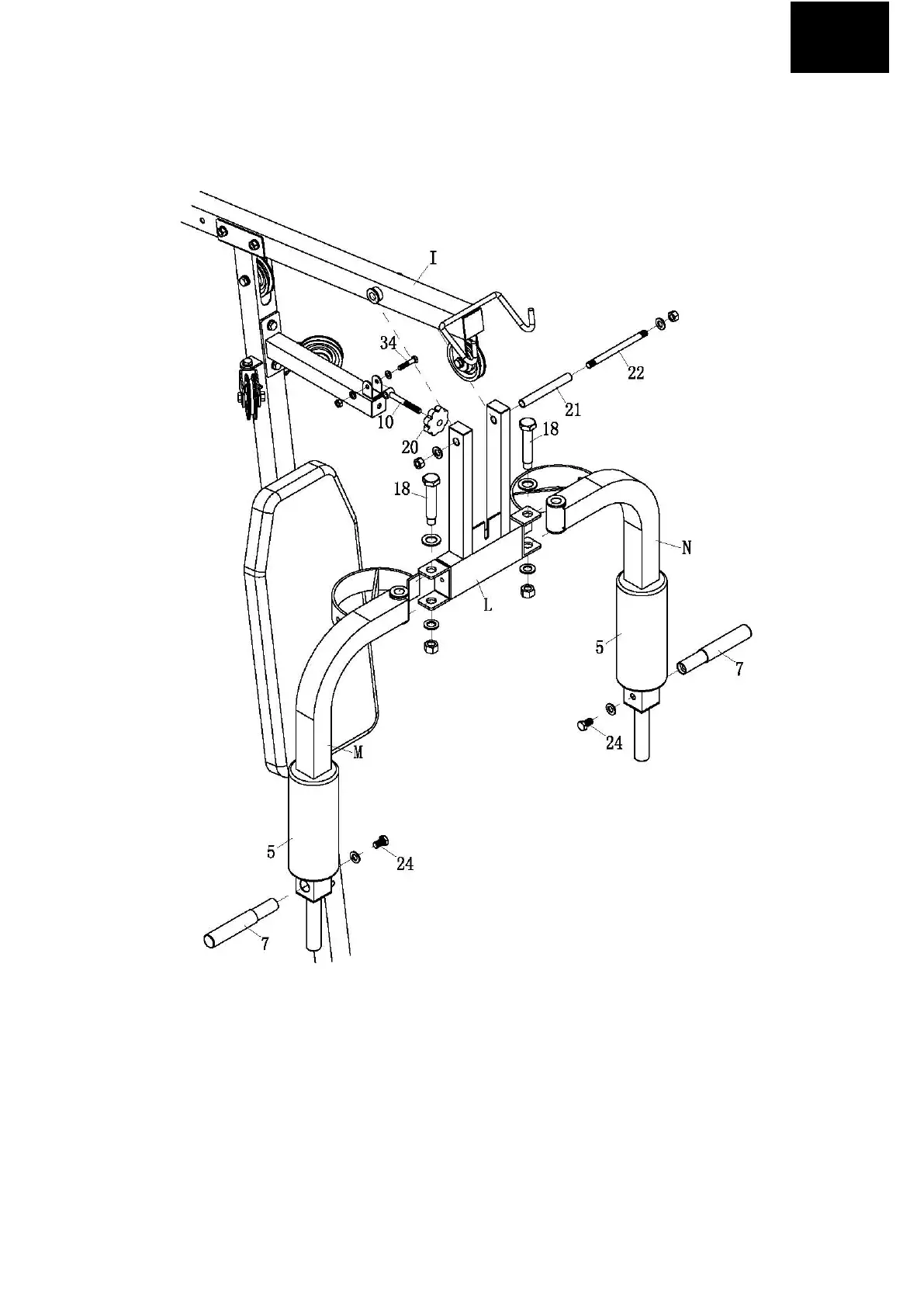

1. ATTACH PRESS BAR (L) TO TOP CROSS BEAM (I) WITH TUBE (21) AND SCREW
M12*165 AND TWO WASHERS AND TWO LOCK NUTS (22) AS SHOWN.
2. ATTACH HANDLE GRIP (7) TO CHEST SUPPORT (M&N) WITH SCREW M10*20 AND
WASHER (24) AS SHOWN.
3. INSTALL CHEST SUPPORT (M&N) TO PRESS BAR (L) WITH TWO BIG PIN AND FOUR
WASHERS AND TWO LOCK NUTS M16 (18) AS SHOWN.
4. ATTACH PRESS BAR LOCK SCREW (10) TO RESIST BAR (J) WITH SCREW M8*40 AND
TWO WASHERS AND LOCK NUT (34), THEN SCREW THE QUINCUNX SCREW M10 (20)
AS SHOWN.
