NUTS (27) AS SHOWN.
STEP 03

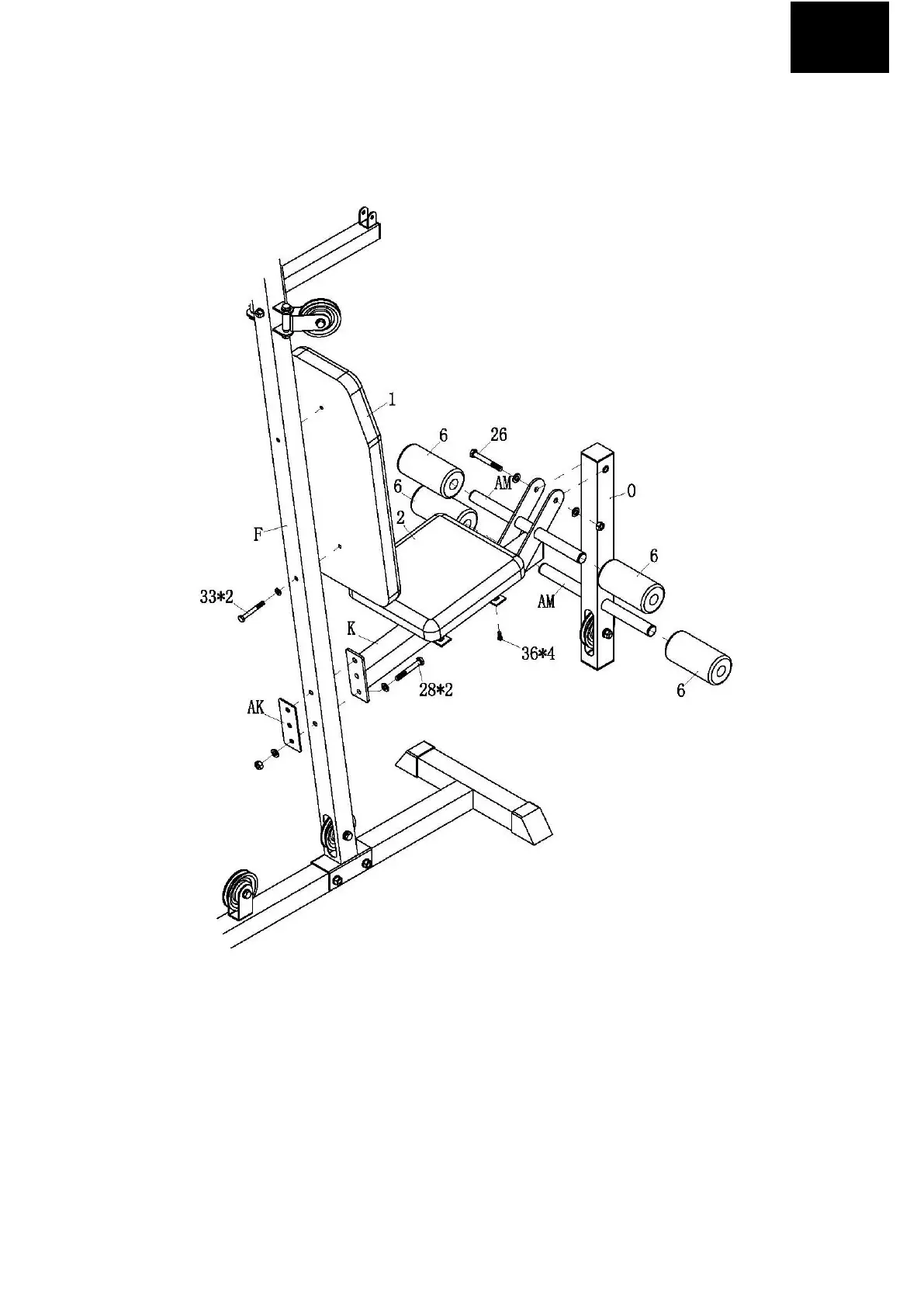

1. ATTACH FRONT SEAT SUPPORT (K) AND JIONT PLATE (AK) TO MAIN VERTICAL
SUPPORT (F) WITH TWO SCREWS M10*75 AND FOUR WASHERS AND TWO NUTS (28)
AS SHOWN.
2. ATTACH LEG EXTENSION (O) TO FRONT SEAT SUPPORT (K) WITH SCREW M10*80
AND TWO WASHERS AND LOCK NUT (26) AS SHOWN.
3. ATTACH SEAT CUSHION (2) TO FRONT SEAT SUPPORT (K) WITH FOUR SCREWS
M6*16 (36) AS SHOWN.
4. ATTACH BACK CUSHION (1) TO MAIN VERTICAL SUPPORT (F) WITH TWO SCREWS
M8*65 AND TWO WASHERS (33) AS SHOWN.
5. SLIDE FOAM TUBE (AM) INTO THE HOLE PROVIDED.
6. SLIDE FOAM ROLLER (6) ONTO FOAM TUBE (AM).
To Next Page
