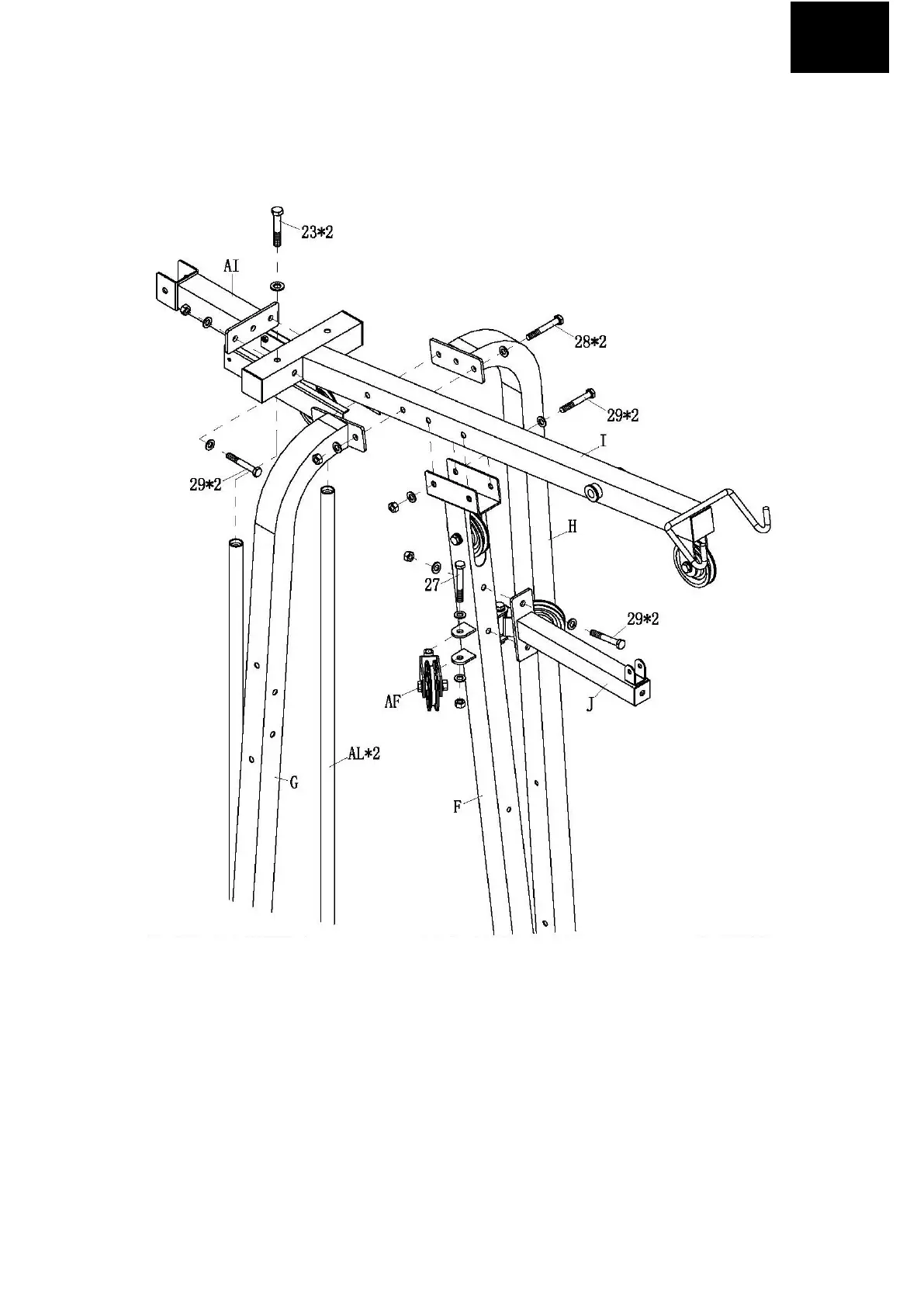

STEP 02
1. ATTACH TOP CROSS BEAM (I) TO MAIN VERTICAL SUPPORT (F) WITH TWO
SCREWS M10*70 AND FOUR WASHERS AND TWO NUTS (29) AS SHOWN.
2. ATTACH RESIST BAR (J) TO MAIN VERTICAL SUPPORT (F) WITH TWO SCREWS
M10*70 AND FOUR WASHERS AND TWO NUTS (29) AS SHOWN.
3. ATTACH LEFT VERTICAL SUPPORT (G) AND RIGHT VERTICAL SUPPORT (H) TO TOP
CROSS BEAM (I) WITH TWO SCREWS M10*75 AND FOUR WASHERS AND TWO NUTS
(28) AS SHOWN.
4. ATTACH GUIDE RODS (AL) TO TOP CROSS BEAM (I) WITH TWO SCREWS M10*70
AND TWO WASHERS (23) AS SHOWN.
5. ATTACH TOP BACK CROSS BEAM (AI) TO TOP CROSS BEAM (I) WITH TWO SCREWS
M10*70 AND FOUR WASHERS AND TWO NUTS (29) AS SHOWN.
6. ATTACH TWO FIXED FLOATING PULLEY BLOCK (AF) TO MAIN VERTICAL
SUPPORT (F) WITH TWO SCREWS M10*75 AND FOUR WASHERS AND TWO LOCK
