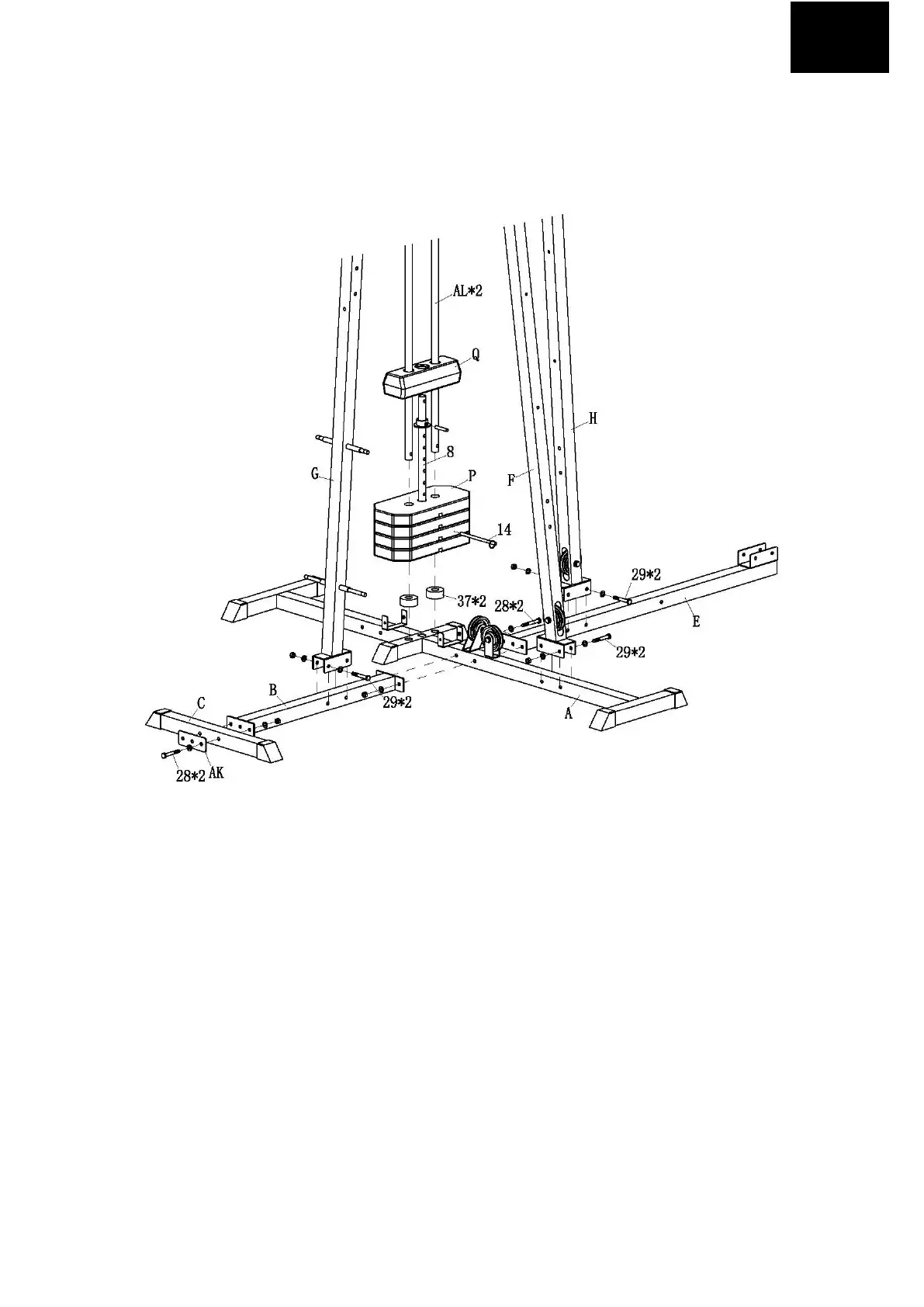

STEP 01
1. ATTACH RIGHT BASE (E) AND LEFT BASE (B) TO MAIN BASE (A) WITH TWO
SCREWS M10*75 AND FOUR WASHERS AND TWO NUTS (28) AS SHOWN.
2. ATTACH SIDE BEAM (C) AND JIONT PLATE (AK) TO LEFT BASE (B) WITH TWO
SCREWS M10*75 AND FOUR WASHERS AND TWO NUTS (28) AS SHOWN.
3. ATTACH MAIN VERTICAL SUPPORT (F) TO MAIN BASE (A) WITH TWO SCREWS
M10*70 AND FOUR WASHERS AND TWO NUTS (29) AS SHOWN.
4. SLIDE EACH WEIGHT PLATE (P) OVER THE GUIDE RODS (AL).
5. INSERT THE SELECTOR SHAFT (8) TO WEIGHT PLATE (P).
6. SLIDE TOP PLATE (Q) OVER THE GUIDE RODS (AL).
7. ATTACH LEFT VERTICAL SUPPORT (G) TO LEFT BASE (B) WITH TWO SCREWS
M10*70 AND FOUR WASHERS AND TWO NUTS (29).
8. ATTACH RIGHT VERTICAL SUPPORT (H) TO RIGHT BASE (E) WITH TWO SCREWS
M10*70 AND FOUR WASHERS AND TWO NUTS (29) AS SHOWN.
