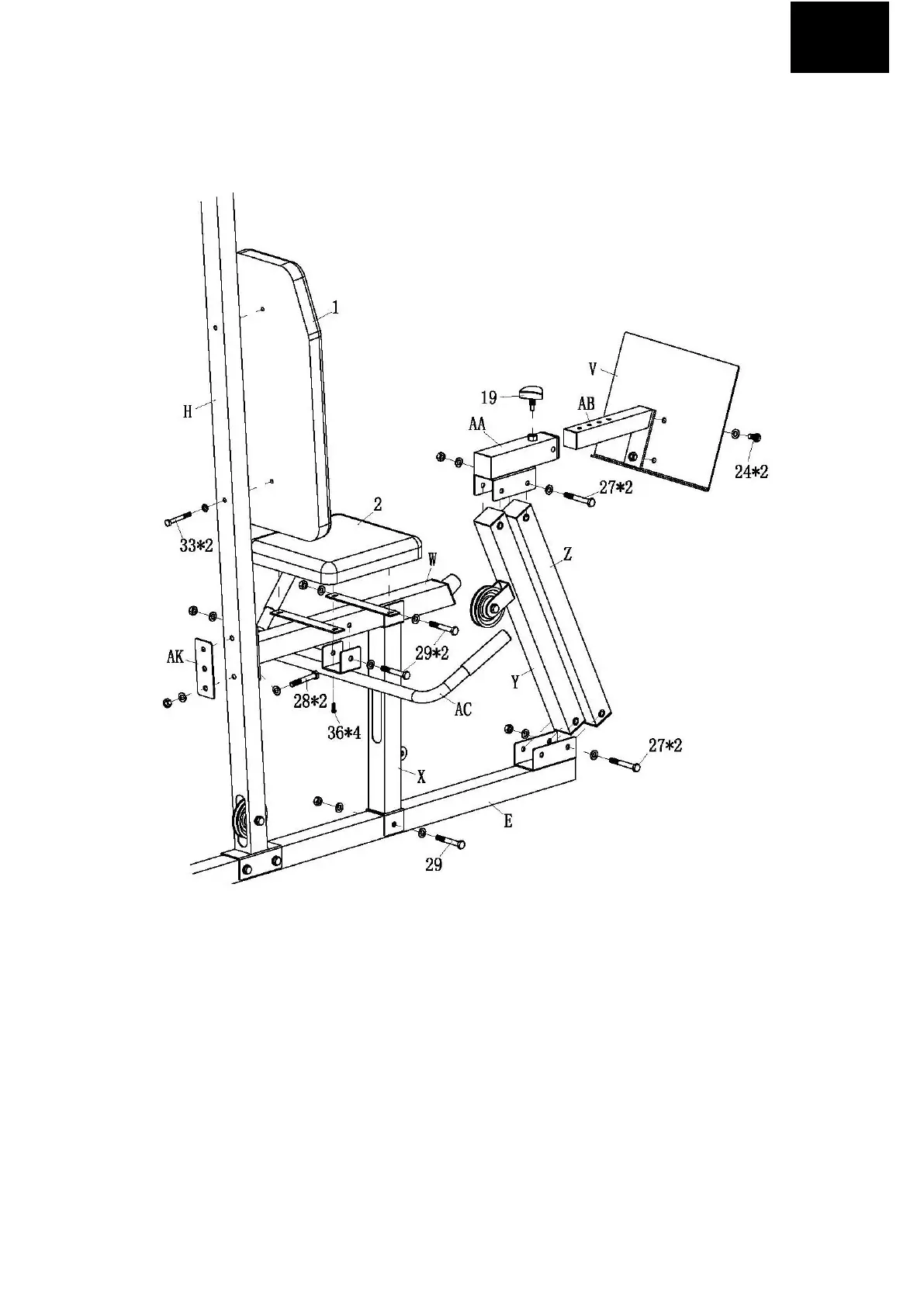

STEP 06
1. ATTACH RIGHT SEAT VERTICAL SUPPORT (X) TO RIGHT BASE (E) WITH SCREW
M10*70 AND TWO WASHERS AND NUT (29) AS SHOWN.
2. ATTACH RIGHT SEAT SUPPORT (W) TO RIGHT SEAT VERTICAL SUPPORT (X) AND
RIGHT VERTICAL SUPPORT (H) AS SHOWN.
3. ATTACH PRESS HANDLE (AC) TO RIGHT SEAT SUPPORT (W) AS SHOWN.
4. ATTACH SEAT CUSHION (2) TO RIGHT SEAT SUPPORT (W), THEN ATTACH BACK
CUSHION (1) TO RIGHT VERTICAL SUPPORT (H) AS SHOWN.
5. ATTACH ROLLING TUBE (Y&Z) TO RIGHT BASE (E) WITH TWO SCREWS M10*75
AND FOUR WASHERS AND TWO LOCK NUTS (27) AS SHOWN.
6. ATTACH ROLLING TUBE (Y&Z) TO MOVING ROLLING SUPPORT (AA) WITH TWO
SCREWS M10*75 AND FOUR WASHERS AND TWO LOCK NUTS (27) AS SHOWN.
7. INSERT LEG ADJUSTABLE SUPPORT (AB) TO MOVING ROLLING SUPPORT (AA)
AND ATTACH IT WITH TRIANGULAR SCREW (19) AS SHOWN.
8. ATTACH IRON PLATE (V) TO LEG ADJUSTABLE SUPPORT (AB) WITH TWO SCREWS
M10*20 AND WASHERS (24) AS SHOWN.
