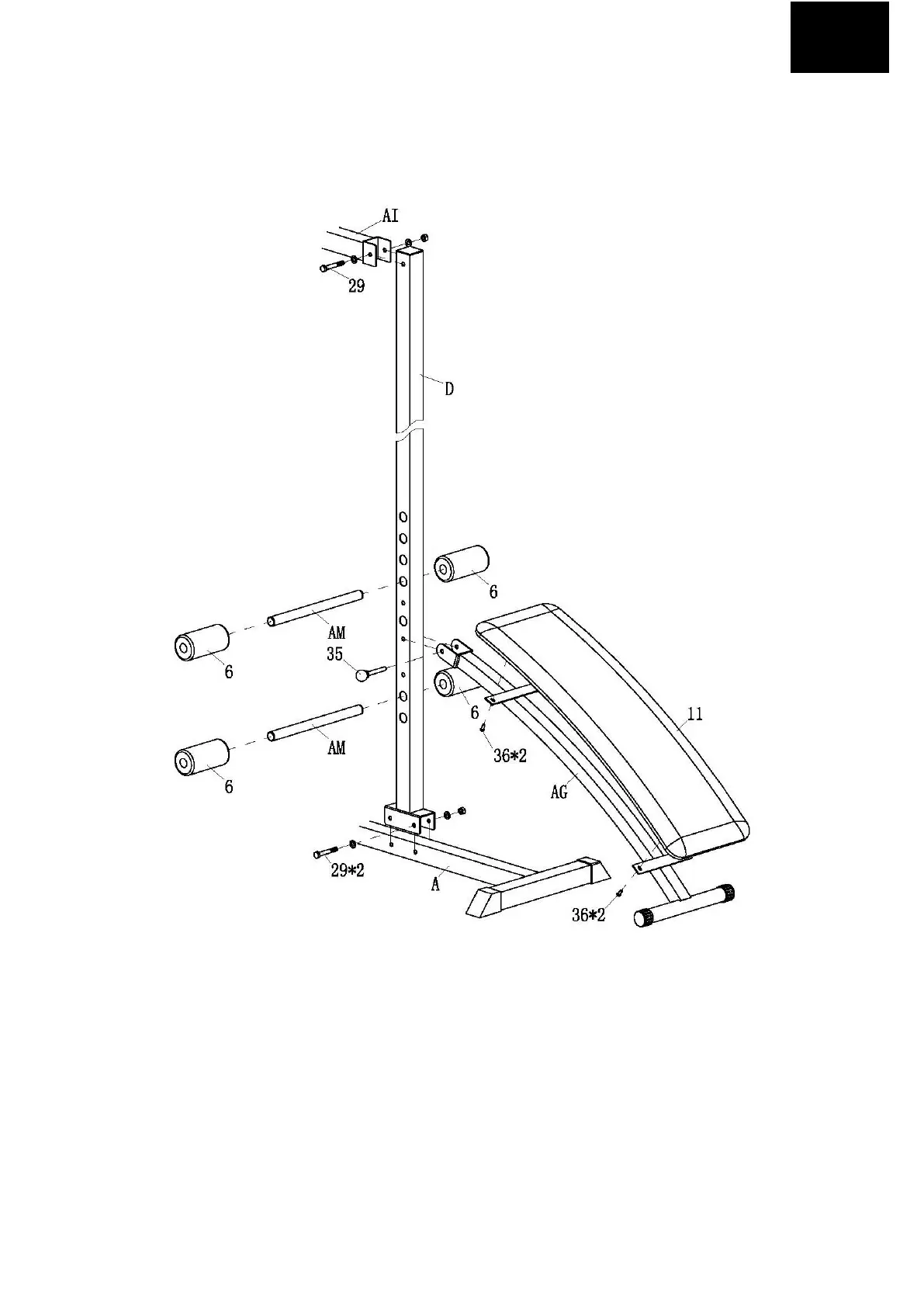

STEP 07
1. ATTACH BACK VERTICAL SUPPORT (D) TO MAIN BASE (A) WITH TWO SCREW
M10*70 AND WASHERS AND NUTS (29). THEN ATTACH BACK VERTICAL SUPPORT (D)
TO TOP BACK CROSS BEAM (AI) WITH SCREW M10*70 AND TWO WASHERS AND
NUTS (29) AS SHOWN.
2. ATTACH SIT UP CUSHION (11) TO SIT UP BENCH SUPPORT (AG) WITH FOUR SCREW
M6*16 (36).
3. ATTACH SIT UP BENCH SUPPORT (AG) TO BACK VERTICAL SUPPORT (D) WITH PIN
φ10*70 (35).
