Mastercare MB-80 - Chair Transfer System Components

Integrity Bath MB-80 Operating Instructions
______________________________________________________________________________________________
MB-80 Operations 2/18/13 800.798.5867
19

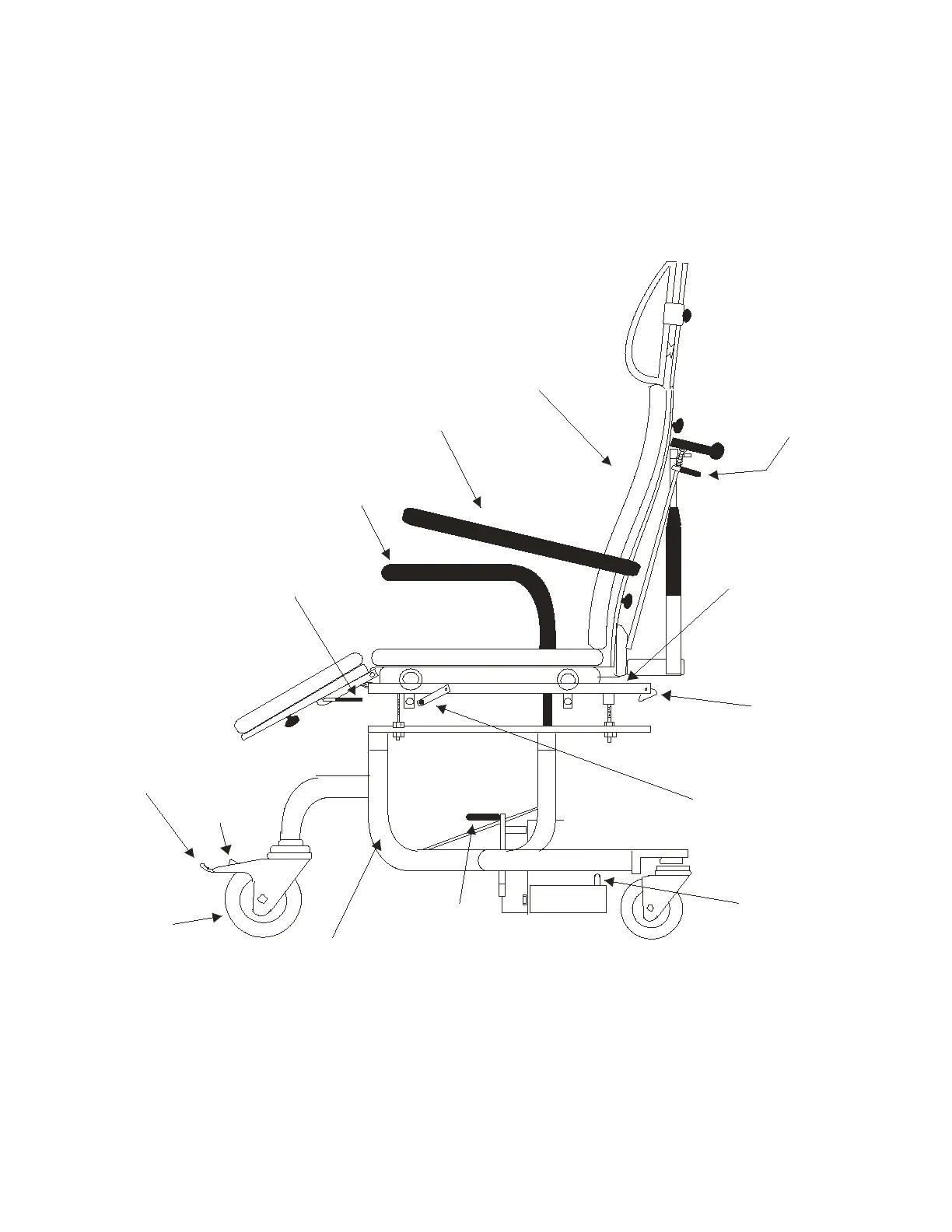

Integrity Bath Chair Transfer System Key Features and
Operating Controls
Brake
Unlock
Tab
Brake
Lock
Tab
Lower
Carrier
Rail
Main Chair
Release
Lever
Passive
Cha ir
Lock
Active Chair
Lock
Docking
Pin
Carrier
Arm
Chair
Chair
Arm
Leg Rest
Adjustment
Latch
Docking Pin
Release Lever
Lower Carrier
Front
Locking
Caster
Form # 00071
