Mastercare MB-80 - Pad and Belting Instructions

Integrity Bath MB-80 Operating Instructions
______________________________________________________________________________________________
MB-80 Operations 2/18/13 800.798.5867
20

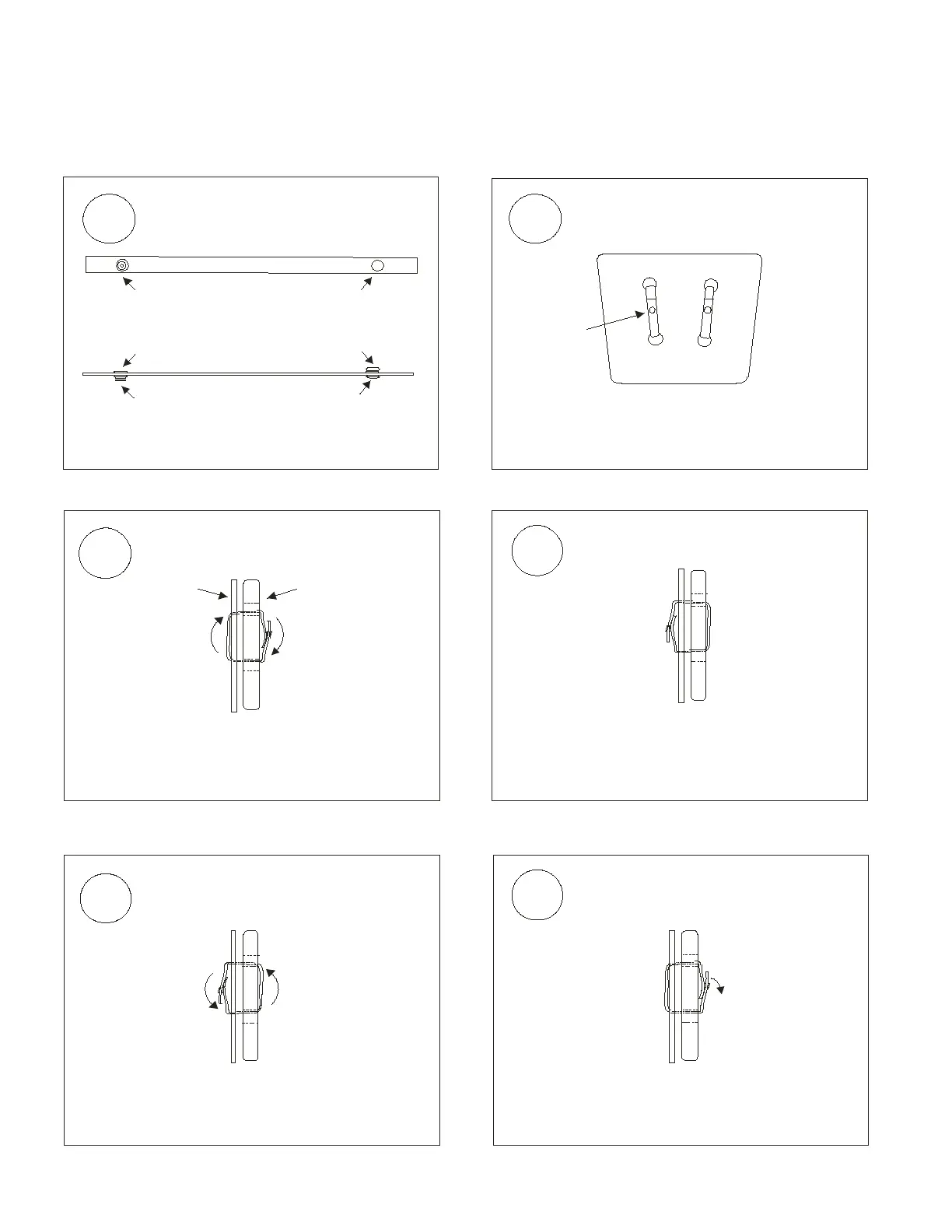

Integrity Chair Strap To Pad Attachment Procedure
Suggested Pad Attachment
With Pad Snap Straps
Side View of Strap After It Is
Initially Engaged and Snapped
Rotate Strap In Clockwise Direction
Until Snap Side Is On Backside of Chair
As shown in Step # 4
To Remove Snap Straps
To Remove Snap Straps
Grasp Straps Firmly Between Thumb and Forefinger,
Using Both Hands. Rotate Strap in Counter Clockwise
Position Until Snap Side is on the Pad Side as shown
In Step # 6.
Grasp Outside End of Strap Between Thumb and
Forefinger. Keeping The Straps in a Parallel Mode Pull
Out and Away From The Pad in an Arcing Motion
(See Arrow) Towards the Connected Snaps
Strap Properly Configured
Continue Attaching The Rest Of Chair Pads
With the Snap Straps in the Same Manner
Following The Guidelines In The “Recommended
Pad Attachment, Removal & Maintenance Instructions”
In The Operations Manual.
Thread Pad Straps Through Holes In Substrate
(See Step # 3) of Chair and Pad as Shown Above.
Snap Female Snap onto Male Snap. When
Done Snap Straps Should Appear as Shown Above
Pad Snap Straps Nomenclature
Long Pad Strap With Snaps
Part # 800840 Fits All Pads
1
2
3
5
4
6
Female Snap
Recepticle
Top View
Top View
Of Pad
Side View
Male Snap
Back Side
Chair Pad
Chair Substrate
Female Snap
Head
Female Snap
Head
Female Snap
Head
Male Snap
Protrusion
Male Snap
Protrusion
MB80OP05B
