model no. 043-5113-0
8

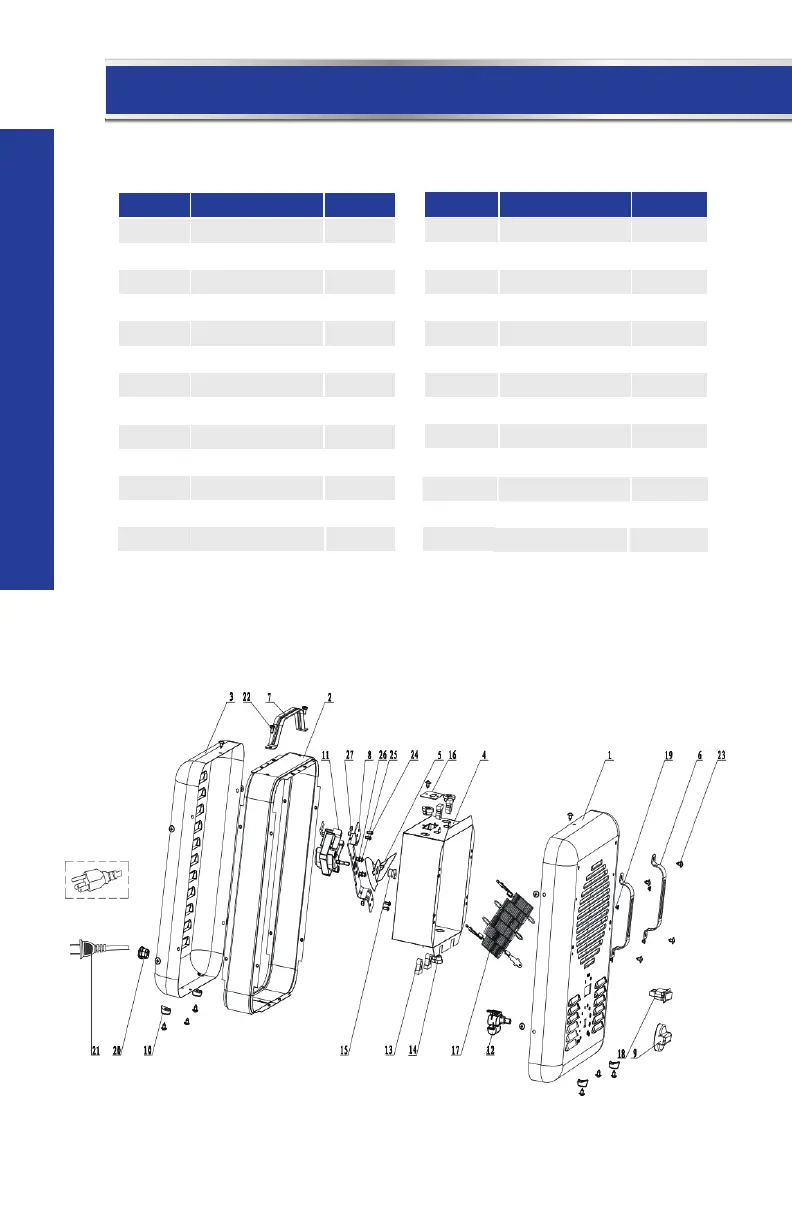

KEY PARTS DIAGRAM
PARTS LIST
No. Description Qty.
1 Front housing 1
2 Mullion 1
3 Rear housing 1
4 Internal box 1
5 Blade 1
6 Straps handle 2
7 Handle 1
8 Motor bracket 1
9 Rotary knob 1
10 Foot pad 4
11 Motor 1
No. Description Qty.
14 Round ceramic chip 3
15 Blades fixed set 1
16 Thermostat element 1
17 Heat wire 1
18 Rocker switch 1
19 Rivet 4
20 Sheath line 1
21 Power cord 1
22 Tapping screw 2
23 Metal tapping screw 21
12 Thermostat 1
13 J ceramic chip 4
24
Round head screw 1 2
25 Round head screw 2 2
26 Spring washers
2
