CHANGING A BATTERY IN THE ANGLE
GRINDER – cont’d
NOTE: Make sure the battery is fully
engaged with the mounting slots in the tool
handle. The battery release buttons will
“click” into place when the battery is fully
installed.
WARNING: Do not immerse the
battery pack in water. Sudden cooling
could cause the hot battery to explode or
leak.
INSTALLING THE GUARD
WARNING: The guard must be
installed before installing a grinding
disc or using the angle grinder. Failure
to do so could result in serious
personal injury.
1. Remove the battery from the angle
grinder.

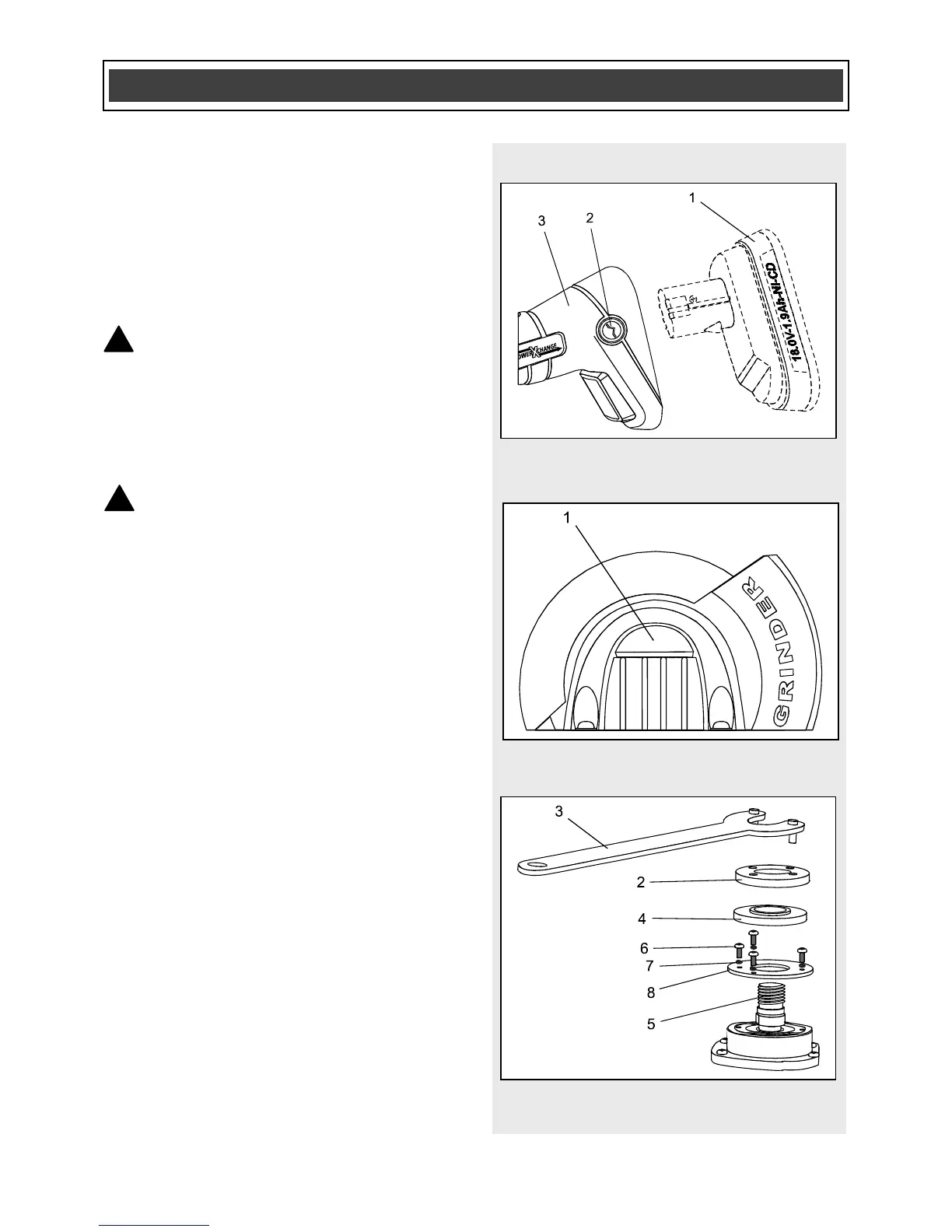

2. Depress the spindle lock button (1)
(Fig. 3).
3. Rotate the clamp nut (2) until the
spindle locks (Fig. 4).
4. Turn the clamp nut counter clockwise
and remove it from the spindle.
NOTE: If clamp nut cannot be loosened by
hand, use the wrench (3) provided.
5. Remove disc flange (4). It will simply
pull off the spindle (5).
6. Using a #2 Philips
®
screwdriver,
remove the four guard retainer screws
(6) and four lock washers (7).
