TRIGGER SWITCH (fig 3)
To turn the drill/driver ON, depress the trigger switch.
To turn it OFF, release the trigger switch.
VARIABLE SPEED (fig 3)
The variable-speed trigger switch delivers higher
speed with increased trigger pressure and lower speed
with decreased trigger pressure.
DIRECTION-OF-ROTATION SELECTOR
(FORWARD/CENTRE-LOCK REVERSE)
(fig 4)
The direction of rotation of the bit is reversible and is
controlled with the direction-of-rotation selector located
above the trigger switch. With the drill/driver held in
normal operating position:
Position the direction-of-rotation selector to the left of
the tool for forward rotation.
Position the direction-of-rotation selector to the right of the tool for reverse rotation.
Position the direction-of-rotation selector in the centre to lock the tool off.
ELECTRIC BRAKE
To stop the tool, release the trigger switch and allow the keyless chuck to come to a complete stop.
The electric brake quickly stops rotation. This feature engages automatically when you release the
trigger switch.
OPERATING INSTRUCTIONS

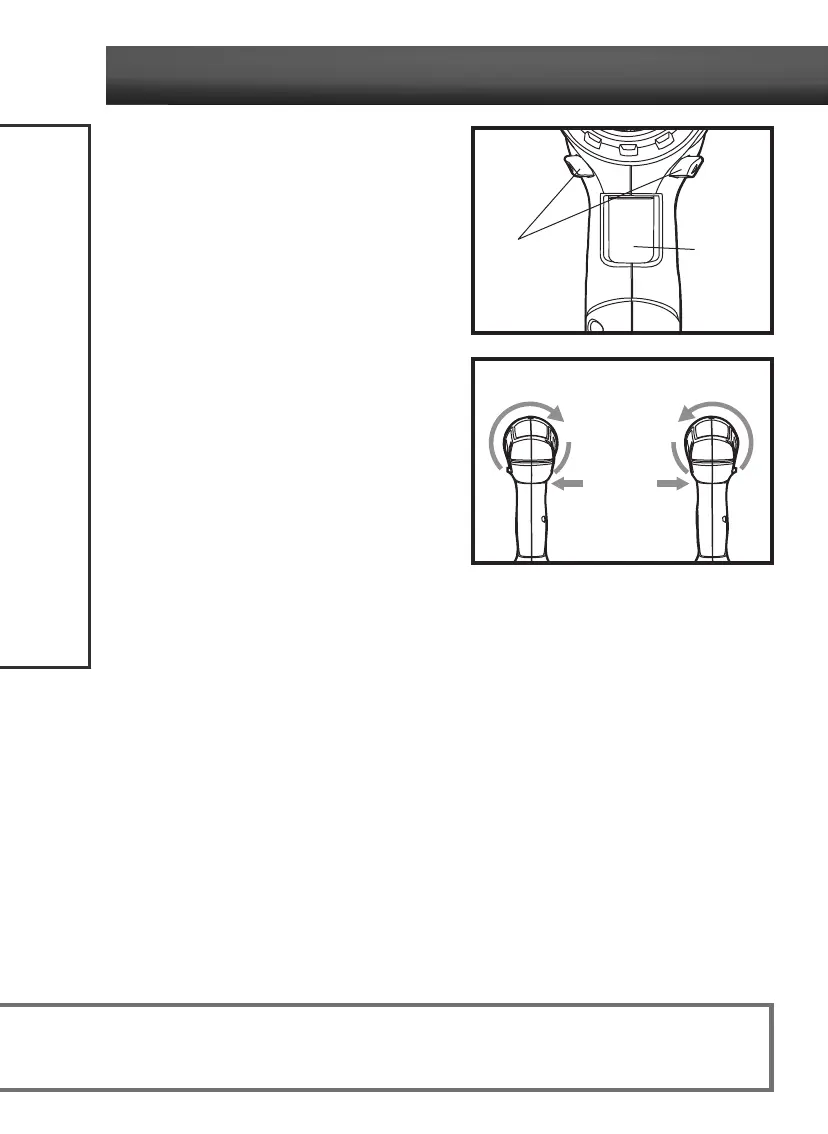

fig 3
Direction-
of-Rotation
Selector
Variable
Speed
Trigger
Switch
NOTE:
• To prevent gear damage, always allow the drill/driver to come to a complete stop before changing the direction of rotation.
• The drill/driver will not run unless the direction-of-rotation selector is engaged fully to the left or right.
fig 4
Forward Reverse
