20V max* LITHIUM-ION BATTERY CHARGER - 054-3126-620V max* LITHIUM-ION BATTERY CHARGER - 054-3126-6
15 16

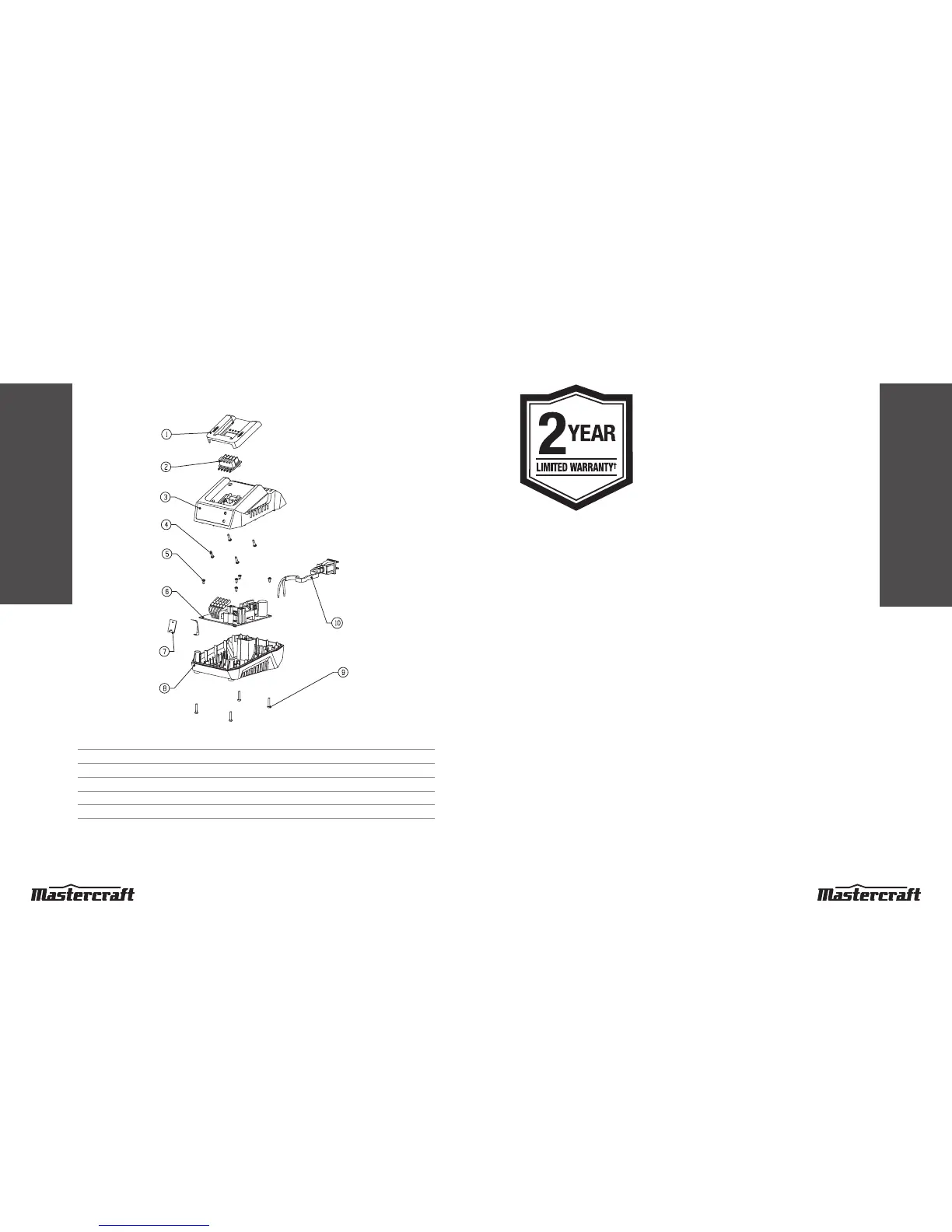

Exploded view
No. Part No. Description No. Part No. Description
1 3125529000 Drive Bracket 6 4890750000 PCB Assembly
2 2823639000 Wiring Harness Assembly 7 4890721000 PCB Assembly
3 3125527000 Upper Housing 8 3125528000 Lower Housing
4 5610012000 Tapping Screw 9 5610218000 Screw
5 5610016000 Tapping Screw 10 4810002000 Power Cord & Plug
If any parts are missing or damaged, or if you have any questions,
please call the Toll-free Helpline, at 1-800-689-9928.
This Mastercraft product is guaranteed for two (2) years from the date of original retail purchase
against defects in materials and workmanship, except for the following components
a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years
from the date of original retail purchase against defects in workmanship and materials;
b) Component B: Accessories, which are guaranteed for a period of 1-year from the date of original
retail purchase against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to us with proof
of purchase within the stated warranty period, and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification) at our option. We will bear the
cost of any repair or replacement and any costs of labour relating thereto.
These warranties are subject to the following conditions and
limitations:
a) a bill of sale verifying the purchase and the purchase date must be provided;
b) this warranty will not apply to any product or part thereof that is worn or broken or that has
become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation,
operation or maintenance (as outlined in the applicable owner’s manual or operating instructions),
or that is being used for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that
may be supplied with the product and that are expected to become inoperative or unusable after a
reasonable period of use;
d) this warranty will not apply to routine maintenance and consumable items, including but not limited
to fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others (i.e.
persons not authorized by the manufacturer);
WARRANTY
