MasterCraft 054-7121-2 User Manual

20V max* LITHIUM-ION CORDLESS ANGLE GRINDER- 054-7121-220V max* LITHIUM-ION CORDLESS ANGLE GRINDER- 054-7121-2
21 22

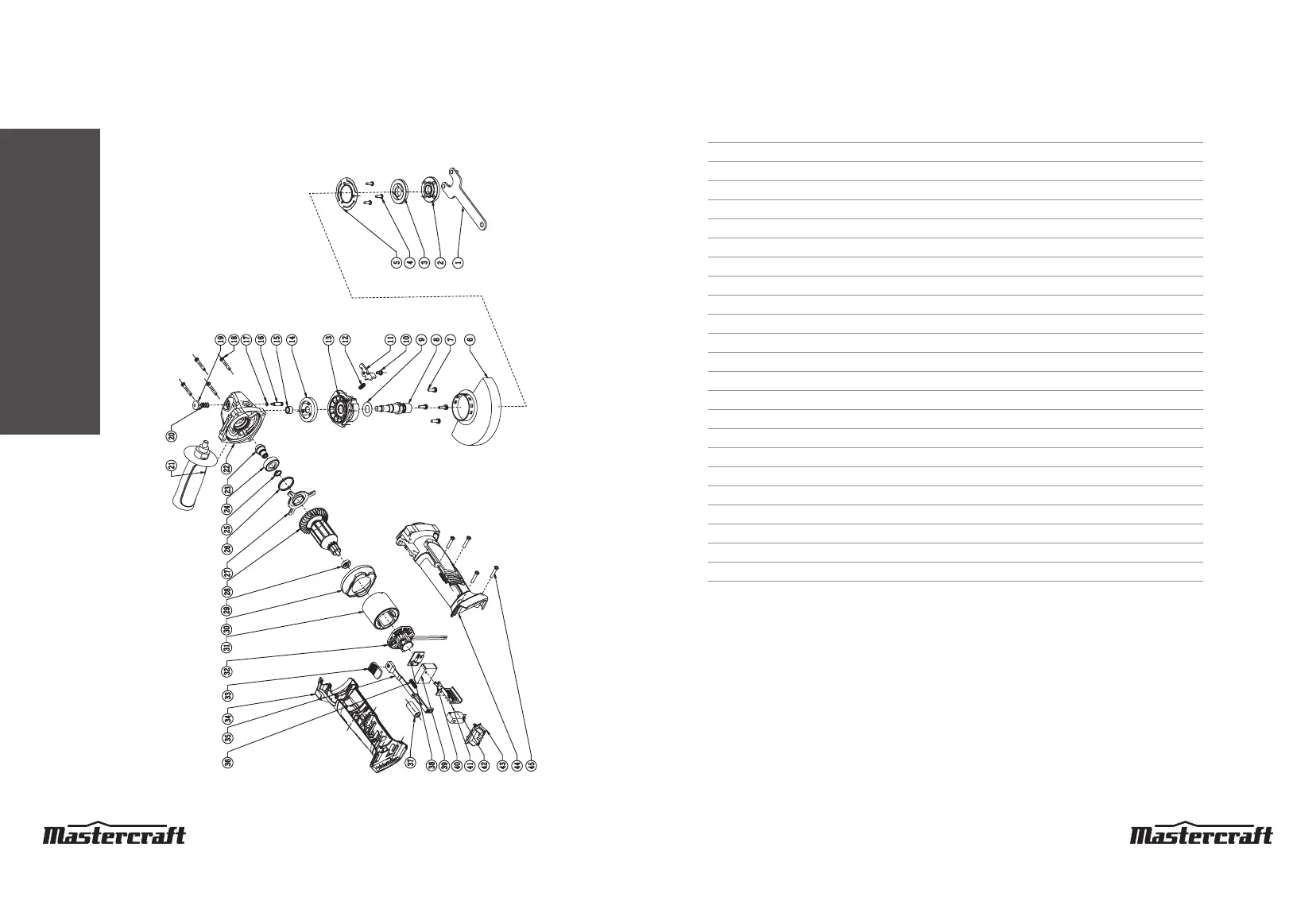

Exploded view
     
1 3700567000 Wrench 24 5700048000 Ball Bearing
2 3550130000 Outer Flange 25 5660011000 Circlip For Shaft
3 3550328000 Inner Flange 26 3121601000 Rubber Ring
4 5610022000 Tapping Screw 27 3705129000 Bearing Retainer
5 3705251000 Plate 28 2750997000 Rotor
6 3705247000 Guard 29 5700250000 Ball Bearing
7 5620419000 Screw With Washer 30 3126290000 Fan Baffle
8 3550816000 Output Shaft 31 2740343000 Stator
9 5650044000 Plain Washer 32 2823622000 Brush Set
10 5620103000 Slotted Shoulder Screw 33 3124057000 Switch Button
11 3705248000 Lever 34 3321597000 Left Housing
12 3660345000 Spring 35 3127146000 Switch Actuator
13 3402647000 Gear Case Cover 36 3660057000 Spring
14 3552049000 Bevel Gear 37 3680158000 Magnet Ring
15 5700040000 Oil Impreging Bearing 38 4891008000 PCB Assembly
16 3551799000 Spindle Lock 39 3705547000 PCB Box
17 5690220000 O Ring 40 5620202000 Screw
18 5610034000 Tapping Screw 41 3704697000 Heat Sink
19 3120354000 Pin Knob 42 4870364000 Micro Switch
20 3660235000 Spring 43 3402577000 Contact Receptacle Assembly
21 3402299000 Handle 44 3321598000 Right Housing
22 3421509000 Gear Case 45 5610106000 Tapping Screw
23 3552048000 Pinion


PARTS LIST PARTS LIST

MasterCraft 054-7121-2 Specifications

General

Brand	MasterCraft
Model	054-7121-2
Category	Grinder
Language	English
