6. Remove the four screws (2) that secure the two brackets (3). Remove the brackets.
7. Lift the wet wheel assembly (4) out of the housing.
8. Remove the brass bushings (5) and washers (6) from the wheel shaft.
9. Remove the E-shaped clip (7) from the gear end of the wheel shaft, and slide the gear (8) off the shaft.
10. Place the bushings and washers onto the new wheel assembly shaft.
11. Place the gear on the shaft, and reinstall the E-shaped clip.
12. Position the wet wheel assembly inside the housing. Verify that the gear is positioned properly so that
the wheel turns without binding.
13. Re-install the two brackets.
14. Put the cover back on the housing, turn the sharpener over, and re-install the six screws.

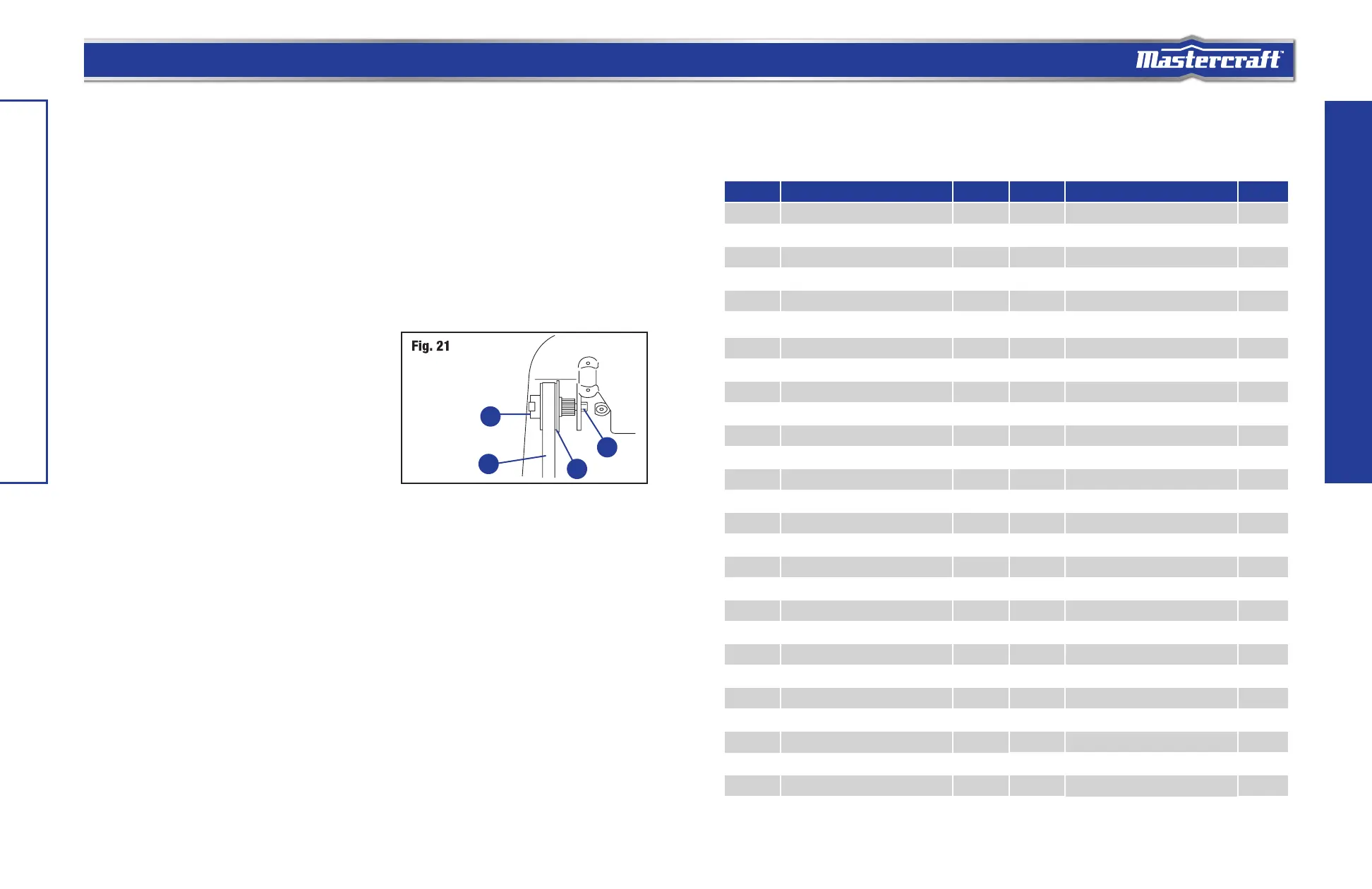

Replacing the belt (Fig.16 and 21)
1. Unplug the sharpener from the power source.
2. Move the tool rests and the eye shield to the lowest
positions.
3. Turn the sharpener over, and place it on a stable work
surface.
4. Remove the 6 screws (Fig. 16) that hold the cover to
the housing.
5. Place the sharpener upright on the work surface and lift the cover off the housing.
6. Loosen and remove the nut (2).
7. Remove the bolt, the pulley assembly (3) and the washers. Remove the old belt (4).
8. Place a new belt over the small and large pulleys.
9. Place the large pulley (3) in position.
10. Insert the bolt through the housing, the pulley assembly, and the washers. Before tightening the nut,
verify that the gears and both sharpening wheels move freely.
11. Put the cover back on the housing, turn the sharpener over, and re-install the six screws.
MAINTENANCE PARTS LIST
MASTERCRAFT
®
WET/DRY SHARPENER
When servicing you Mastercraft
®
Wet/Dry Sharpener, use only Mastercraft
®
replacement parts. Use of any
other parts may damage the product. Servicing of the sharpener should be performed by a qualied service
technician. For more information, call the toll-free helpline at 1-800-689-9928.
No. Description Qty No. Description Qty
01 Lower housing I 1 28 Left support 1
02 Motor 1 29 Wet wheel tool rest 1
03 Motor gear 1 30 Knob 1
04 E-shaped clip 1 31 Bolt 1
05 Drive belt 1 32 Eye shield 1
06 Nut 5 33 Carriage bolt 1
07 Washer 9 34 Dry wheel tool rest 1
08 Gear bolt 1 35 Upper housing 1
09 Washer 2 36 Screw 6
10 Bushing 1 37 Transfer gear 1
11 Wheel gear 1 38 Wheel ange 2
12 C-ring 1 39 Nut 1
13 E-shaped clip 1 40 Dry grinding wheel 1
14 Screw 6 41 Rubber support 1
15 Bushing clamp 2 42 Nut 1
16 Brass bushing 2 43 Washer 1
17 Wet wheel assembly 1 44 Power cord 1
18 Screw 1 45 Strain relief 1
19 Capacitor holder 1 46 Lower housing ll 1
20 Spark deector 1 47 Foot pads 4
21 Capacitor 1 48 Washer 2
22 Switch plate 1 49 Washer 2
23 Switch 1 50 Dressing wheel 1
24 Right support 1 51 Wrench for dry wheel 1
25 Toothed spacer 1 52 Scale (angle) gauge 1
26 Carriage bolts 2 53 Rubber housing 1
27 Table lock knob 3 54 Washer 1
1
3
4
2
