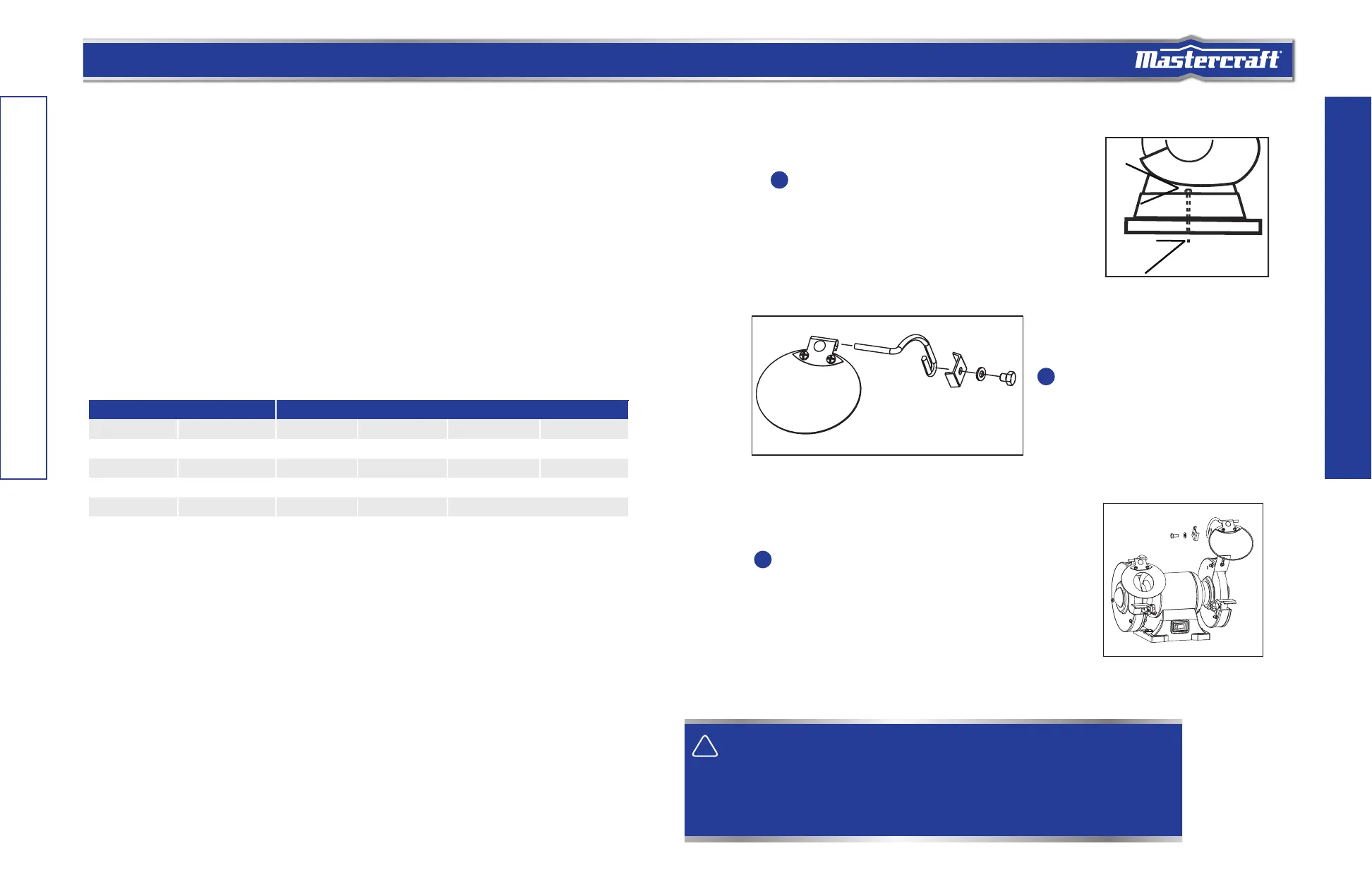

Before attempting to use this grinder, it must be properly mounted to a workbench or grinding stand.
Fit the eye shield to the mount rod. Mount
the left and right shield rods to the inside
of the wheel guards using hex bolts.
Using two long bolts, washers, flat washers and
nuts, as shown (not supplied), secure the grinder
to the workbench.
NOTE:
CAUTION!
The eye shield should move freely when being adjusted, but stay in place when the screw is tightened.
Bench grinders vibrate. Grinder movement during high-speed rotation may cause injury or damage to the
workpiece or operator. Mount the grinder securely to a sturdy workbench or grinding stand.
!
model no. 055-3521-2 | contact us 1-800-689-9928
Total Length of Cord in Feet (meters)Ampere Rating
1
2
8
Workbench
Flat washer
Hex nut
Bolt
Flat
washer
Attach the left eye shield mounting rod to the bench
grinder using the bracket, flat washer and bolt supplied.
3
USE ONLY THREE-WIRED EXTENSION CORDS that have 3-pronged plugs and 3-holed outlets that
accept the tool’s plug. Repair or replace damaged or worn cords immediately.
Be sure your extension cord is properly wired and in good condition. Do not use damaged extension
cords. Always replace a damaged extension cord.
When using an extension cord, be sure to use one heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating.
The table below shows the correct size to use according to the cord length and the amperage draw
of the tool (specified on the nameplate). When in doubt, use the next heavier gauge. The smaller the
gauge number, the heavier the cord (AWG = American Wire Gauge).
Use a separate electrical circuit for your tools. This circuit should not be less than a #12 gauge wire,
and should be protected with a 15A time-lag fuse. Before connecting the motor to the power line,
ensure the switch is in the OFF position and the electric current is rated the same as the current
stamped on the motor’s nameplate. Running at a lower voltage will damage the motor and is not
covered by warranty.
Minimum Gauge for Extension Cords (AWG)
(when using 120V only)
Use of Extension Cords
9
ASSEMBLY PREPARATION
ASSEMBLY INSTRUCTIONS
More Than Not More Than 25’ (7.6 m) 50’ (15 m) 100’ (3 0.4 m) 150’ (4 5.7 m)
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12
Not Recommended
