MasterCraft 055-3521-2 User Manual

Left work rest
Right work rest
Plain eye shield assembly
Magnify eye shield
Left eye shield support
Right eye shield support
Bracket
Flat washer D6
Hex bolt M6X14
Spark deflector
Star-head screw+spring washer+flat washer M5X8
Hex bolt M6X14
Lock knob
1
1
1
1
1
1
2
2
2
2
2
2
2
model no. 055-3521-2 | contact us 1-800-689-9928
6
PACKAGE CONTENTS
Description Qty
7
PACKAGE CONTENTS
• Always wear eye protection that complies with a recognized standard (CSA or ANSI;
for example: ANSI Z87.1)
• Wear a mask or respirator when dust is generated.
• Keep bystanders out of the work area while operating the tool.
• WARNING! Always ensure that the work area is clear of any flammable materials, liquids or gases,
because the use of this tool may create sparks.
• Do not wear loose clothing or jewellery. Keep hair tied back.
• WARNING! Replace cracked grinding wheels immediately.
• Do not overtighten spindle nuts.
• Adjust tool rests whenever necessary to maintain a distance of 1/8” (3.2 mm) from the grinding
wheel.
• NEVER grind on the side of the wheel. Grind on the face of the wheel only.
• NEVER apply pressure to the workpiece when the grinding wheel is cold. Allow the wheel to warm
up by applying the workpiece gradually.
• NEVER use the grinder without the wheel guards. Keep thumbs and fingers away from the wheel.
In the event of a malfunction or short circuit, grounding provides the path of least resistance for
electrical current, and reduces the risk of electric shock for the operator. This tool is equipped with
an electric cord that has an equipment grounding conductor and a grounding plug. The plug must be
plugged into a matching outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet installed
by an electrician.
IMPROPER CONNECTION of the equipment grounding conductor can result in increased risk of electric
shock. The conductor with the green insulation (with or without yellow stripes) is the equipment
grounding conductor. If repair or replacement of the electric cord or plug is necessary, DO NOT connect
the equipment grounding conductor to a live terminal.
CHECK with a qualified electrician or service personnel if you do not completely understand the
grounding instructions, or if you are not sure if the tool is properly grounded.

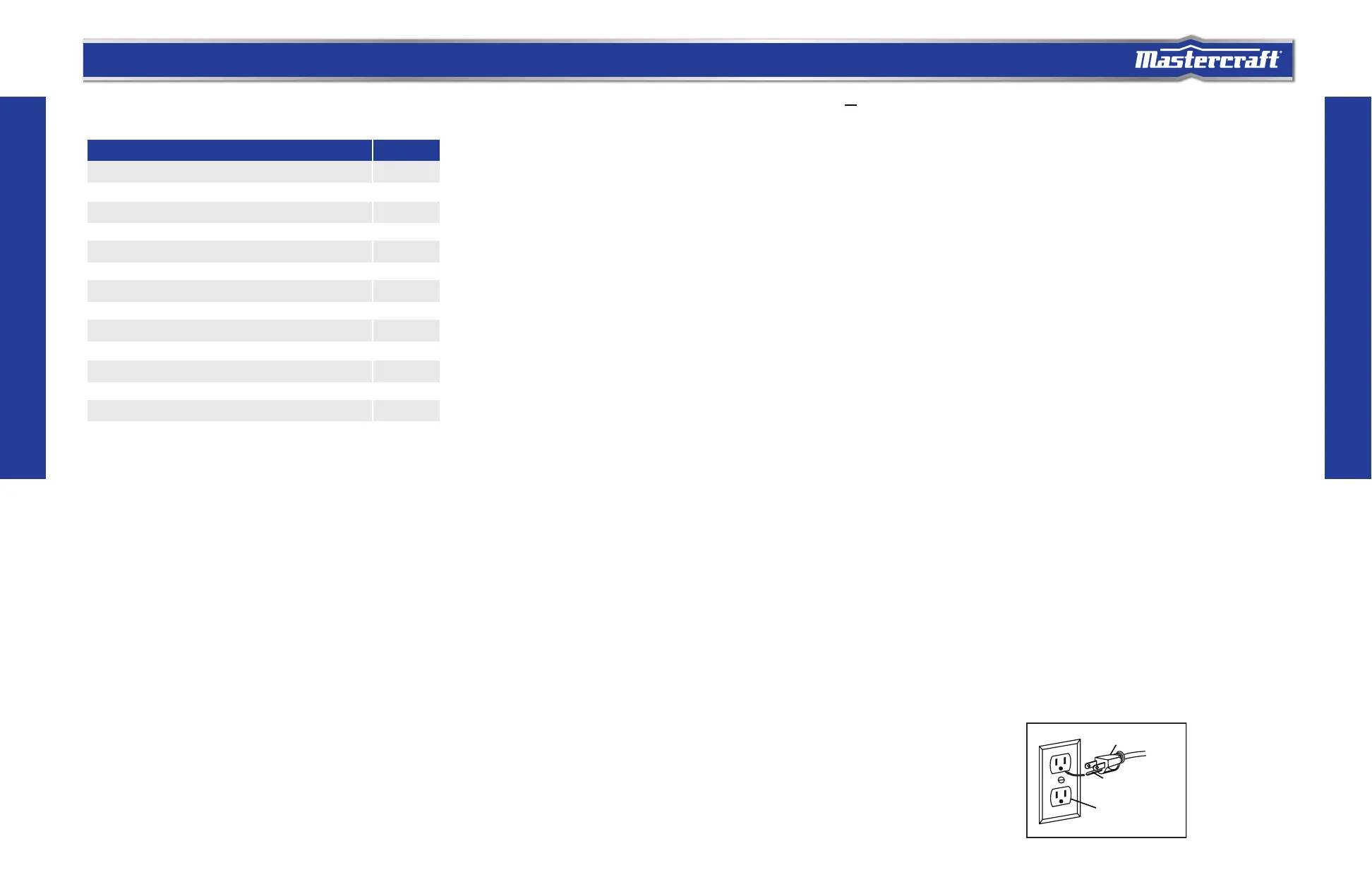

This tool is intended for use on a circuit that has
an outlet that looks like the one illustrated. The
original tool has a grounding plug that looks like
the plug illustrated.
Before You Start Safety
Before You Start – Electrical
ASSEMBLY PREPARATION
3-Pronged Plug
Properly Grounded
3-Hole Receptacle
Grounding Prong
