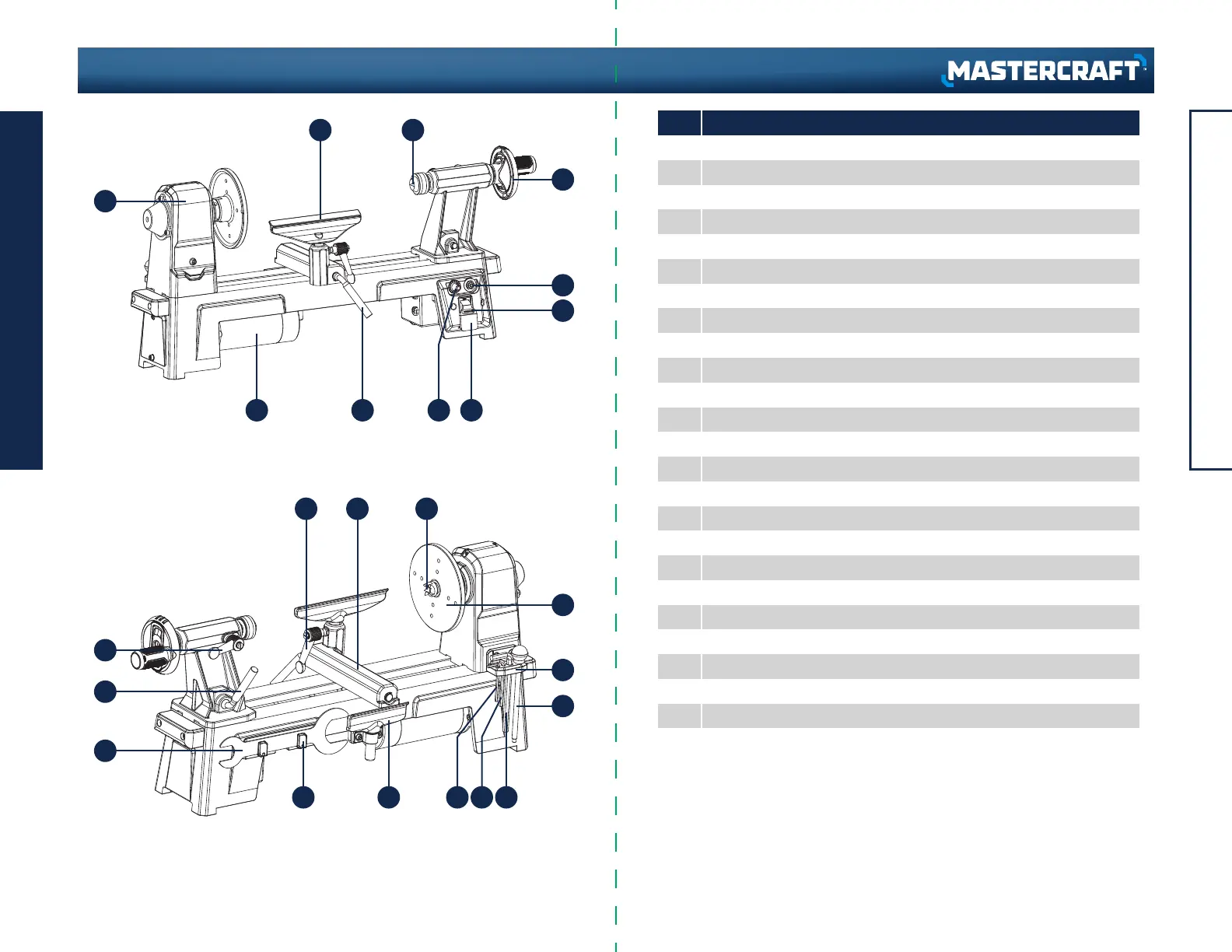

Description
7" Tool rest
Tailstock cup centre
Hand wheel
Reset button
Safety key
Faceplate
Tool caddy
Push-out rod
8 mm Hex key
5 mm Hex key
4 mm Hex key
4.5" Tool rest
Wrench storage
Flat wrench
Tailstock lock lever
Spindle lock lever
Tool rest lock lever
Tool rest base
Headstock spur centre
On/Off switch
Speed control knob
Base lock lever
Motor
Headstock
23
12 9101113
22 2021
21
3
5
6
8
7
4
18 1917
15
14
16
24
ON/OFF switch:
This wood lathe has an easy-access power switch located on the right side of the
machine. To lock the switch in the off position, remove the switch key from the
switch. Place the key in a location that is inaccessible to children and others not
qualified to use the tool.
Chuck:
A clamping device for holding work in the lathe or for holding drills in the tailstock.
1312
