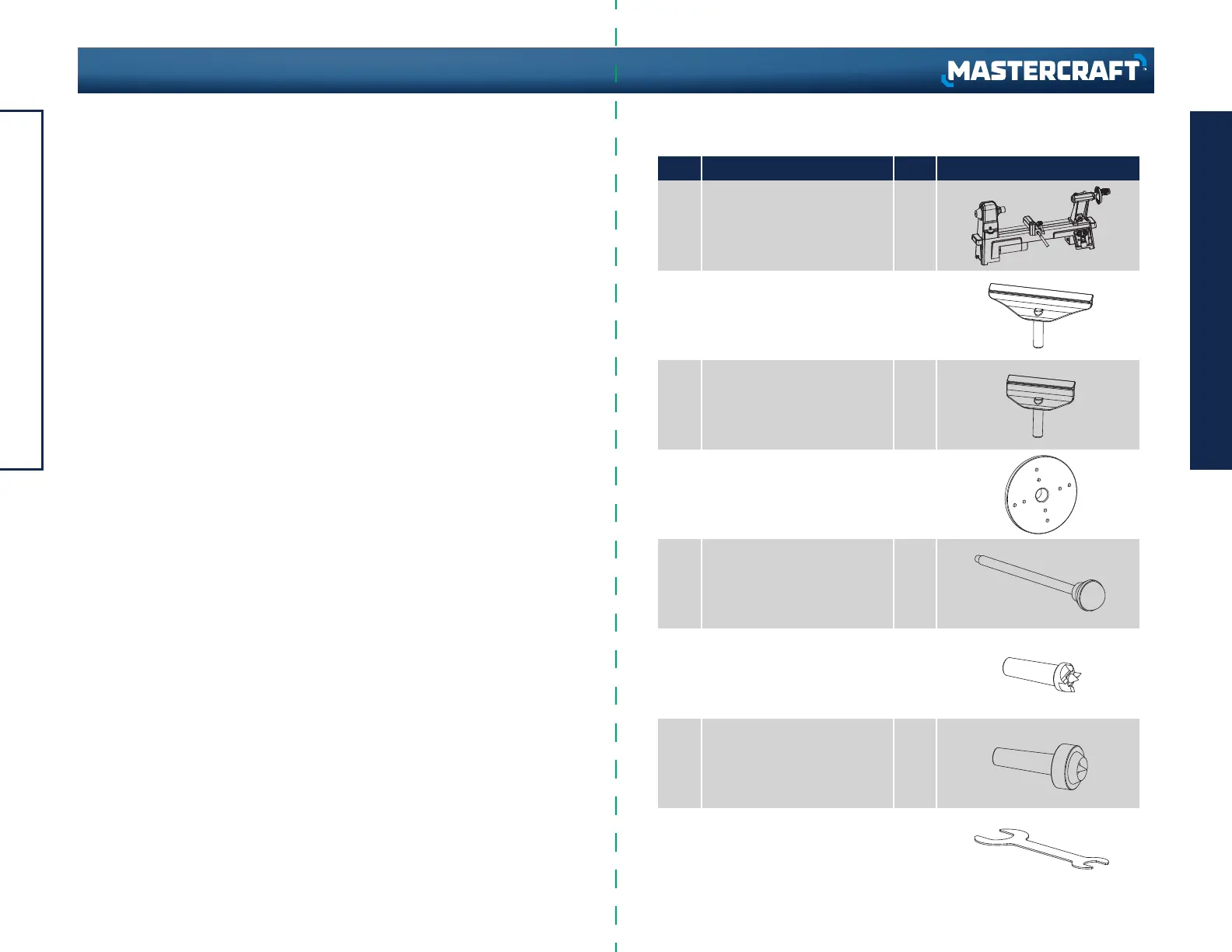

PACKAGE CONTENTS
NO. Description Qty. Illustration
Wood lathe assembly
7" Tool rest
4 1/2" Tool rest
Faceplate
Push-out rod
Headstock spur centre
Tailstock cup centre
Wrench
1
2
3
4
5
6
7
8
1
1
1
1
1
1
1
1
Between centres:
A dimension representing the maximum length of a workpiece that can be turned
between centres. Also a method of holding a workpiece by mounting it between the
centres of the headstock and the tailstock spindles.
Centre:
A precision-ground tapered cylinder with a pointed tip and a morse taper shaft. Used
in the tailstock to support the end of long workpieces. May also be used in the
headstock spindle to support work between centres at both ends.
Centreline:
An imaginary line extending from the centre of the spindle through the centre of the
tailstock ram, representing the central axis of the lathe around which the work
rotates.
Morse taper (MT):
A taper of specific dimensions used to mate matching male and female parts
together tightly. The tailstock has a MT-2 Morse taper.
Bed:
Main supporting casting running the length of the lathe.
Tool rest base:
Movable platform where the tool rest is mounted. It can be set at an angle to the
workpiece (also known as compound slide and compound rest).
Faceplate:
A metal plate with a flat face-mounted spindle to hold irregularly shaped work.
Headstock:
The main casting mounted on the left end of the bed where the spindle is mounted.
Houses the spindle gears.
Tailstock:
Assembly that slides along the bed and can be locked in place. Used to hold long
workpieces in place or to mount a drill chuck.
Hand wheel:
Moves the tailstock in and out.
Tool rest:
A device mounted on the compound that holds the cutting tool.
Tailstock lock lever:
Locks the tailstock in position. Unlock handle to position the tool rest in any location
along lathe bed. Tighten lever when properly positioned.
ASSEMBLY INSTRUCTIONS
1514
KNOW YOUR WOOD LATHE
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 055-6793-6 | contact us 1-800-689-9928
