TOOLS NEEDED FOR ASSEMBLY
Screwdriver Wrench
NO. Description Qty. Illustration
4, 5, 8 mm hex keys
M10 x 40 Hexagon socket bolts,
Flat washers 10 and spring
washers 10
9
10
3
4
Fig. 2
24 3/8" (62 cm)
25 5/8" (65 cm)
5 1/2"
(14 cm)
5 1/2"
(10.5 cm)
CAUTION!
The wood lathe is heavy and must be lifted with the help of another person.
WARNING!
If any parts are damaged or missing, do not operate this tool until the parts are
replaced. Use of this product with damaged or missing parts could result in serious
personal injury.
• Do not attempt to modify this tool or create accessories not recommended for use
with this tool. Any such alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal injury.
• Do not connect to power supply until assembly is complete. Failure to comply could
result in accidental starting and possible serious personal injury.
• Risk of injury! Always pull out the mains plug (disconnect the product from its power
supply) before commencing work on the product.
WARNING!
The lathe must be bolted to a bench top. Operating a lathe that is not bolted down may
result in serious injury.
NOTE:
To hold the lathe securely, the bolts must engage a minimum of
1" (2.5 cm) into the frame.
UNPACKING
Do not use this product if any parts of the package contents are already assembled to
your product when you unpack it. Package contents are not assembled to the product
by the manufacturer and require customer installation. Use of a product that may
have been improperly assembled could result in serious personal injury.
• Inspect the tool carefully to make sure no breakage or damage occurred during
shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily
operated the tool.
• If any parts are damaged or missing, please call: 1-800-689-9928 for assistance.

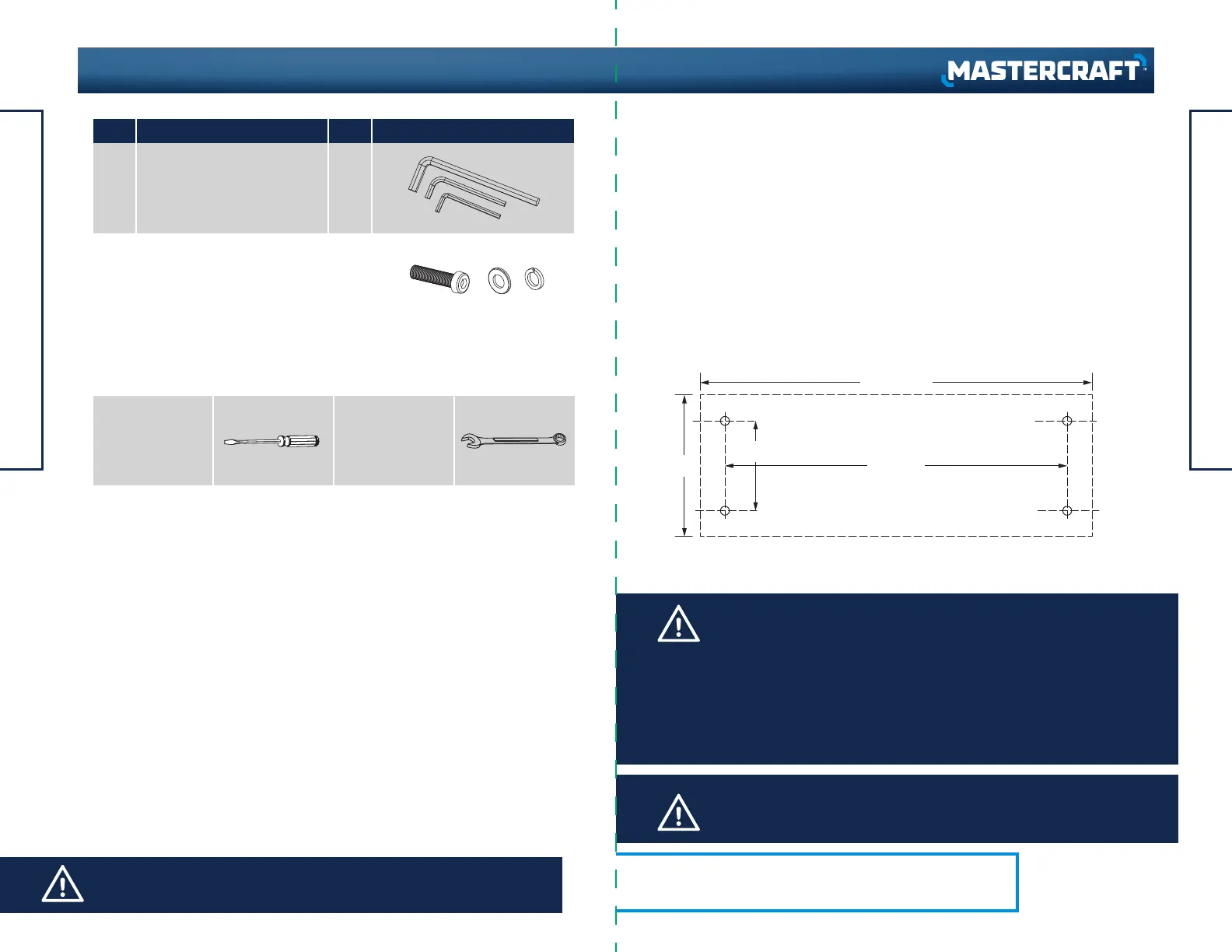

MOUNTING THE LATHE ON A BENCH TOP (Fig. 2)
• In a clear space on the bench top, measure and mark four hole centres as shown
in Fig. 2.
• Drill clearance holes through the bench top. Position the lathe on the bench top.
• Install the M10 x 40 hexagon socket bolts with flat washers 10 and spring washer
10 (included in the hardware bag) from underneath the bench top into the tapped
holes in the bottom of the lathe frame.
ASSEMBLY INSTRUCTIONS
17
16
ASSEMBLY INSTRUCTIONS
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 055-6793-6 | contact us 1-800-689-9928
