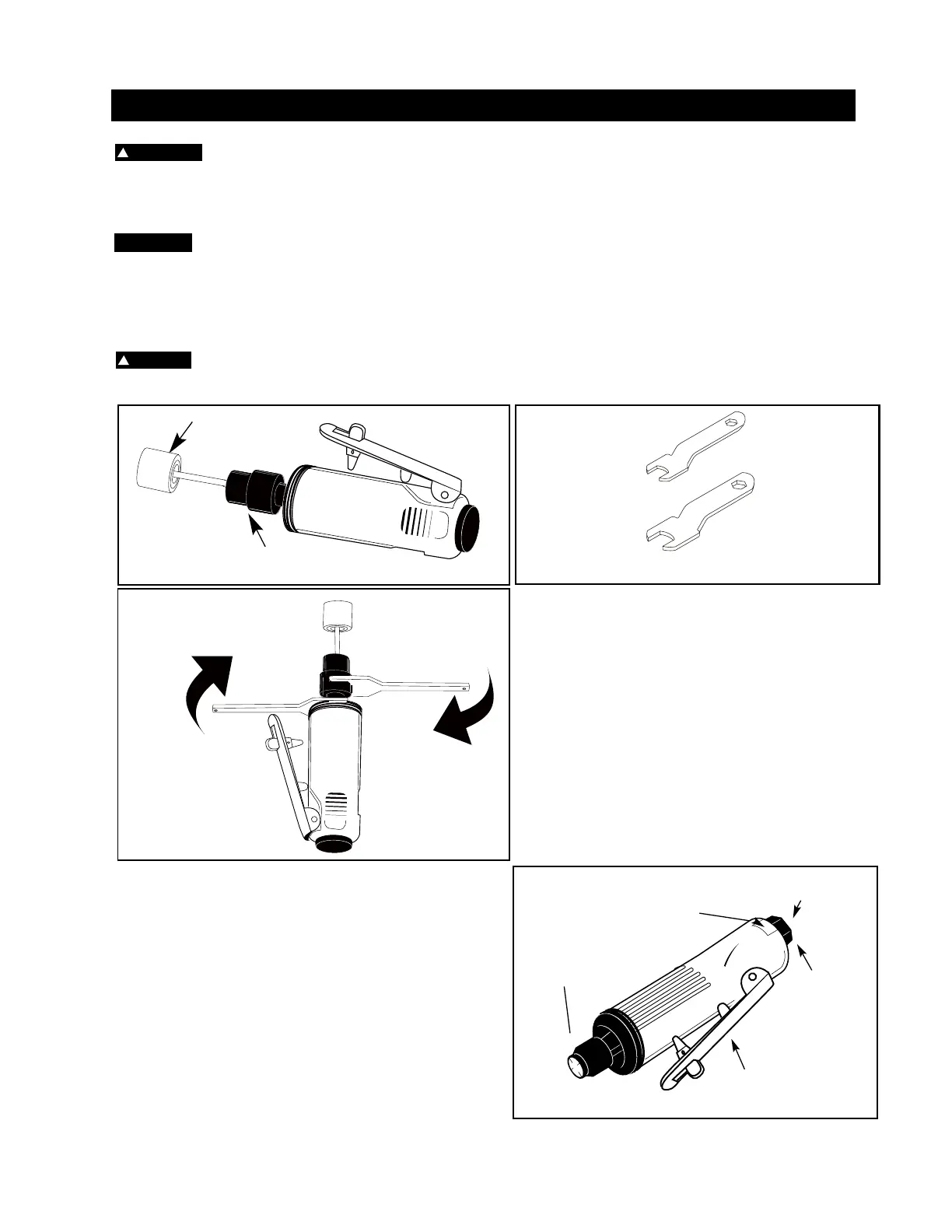

ASSEMBLY
18
!
WARNING
!
NOTICE
Disconnect air tool from air supply before changing attachments orserious injury could occur.
1.Insert stem of grinder attachmentinto collet opening (See Fig. F). Make sure stem is fully inserted.
2.Securely tighten collet withwrenches (supplied with somemodels) (See Fig. G & H ).
Apply one wrench to the collet nutand the other to the spindle. Turnthe wrench on the collet nut to theright,
simultaneously turning theother wrench in the oppositedirection. Make sure stem does notslip out of position.
Fig. F
Collet
Nut
Grinder
Attachment
Fig. G - Wrenches
Fig. H
To Tighten
Collet Turn
Wrench To The
Right
Always Turn This
Wrench In The
Opposite
Direction
Manufacturing Code
Air Inlet
Throttle lever
Air Exhaust
Collet
Mini Die Grinder Features
Specifications
SCFM requirement. . . .3.0 @ 90 PSI
Collet Size . . . . . . . .1/4”
Air Inlet . . . . . . . . . .1/4” NPT
Min. Hose Size . . . . .3/8”
Weight . . . . . . . . . . .11 oz (0.3 kg)
Mini Die Grinder
CAUTION Do not use in conditions near or below freezing, the moisture in the air line may freeze and prevent
tool operation. Do not store tools in a cold weather environment to prevent frost or ice formation on the tools
operating valves and mechanisms that could cause tool failure. Store in a dry place.
1. Always use proper guard with grinding wheel. A guard reduces the risk of injury to persons from broken wheel
fragments.
2. Accessories must be rated for at least the speed of the tool marked on the tool label. Wheels and other
accessories running over rated speed can fly apart and result in a risk of injury to persons.
All air compressors contain maintenance parts that require periodic replacement. These used parts,
including air filters and used lubricating oil, may contain regulated substances that must be disposed of in
accordance with local, state, and federal laws and regulations.
