8. When the drive shaft is fully engaged into
the right angle attachment, lock the right
angle attachment to the adaptor by turning
the adaptor collar clockwise.
NOTE: Only tighten by hand. DO NOT use
pliers or wrench.

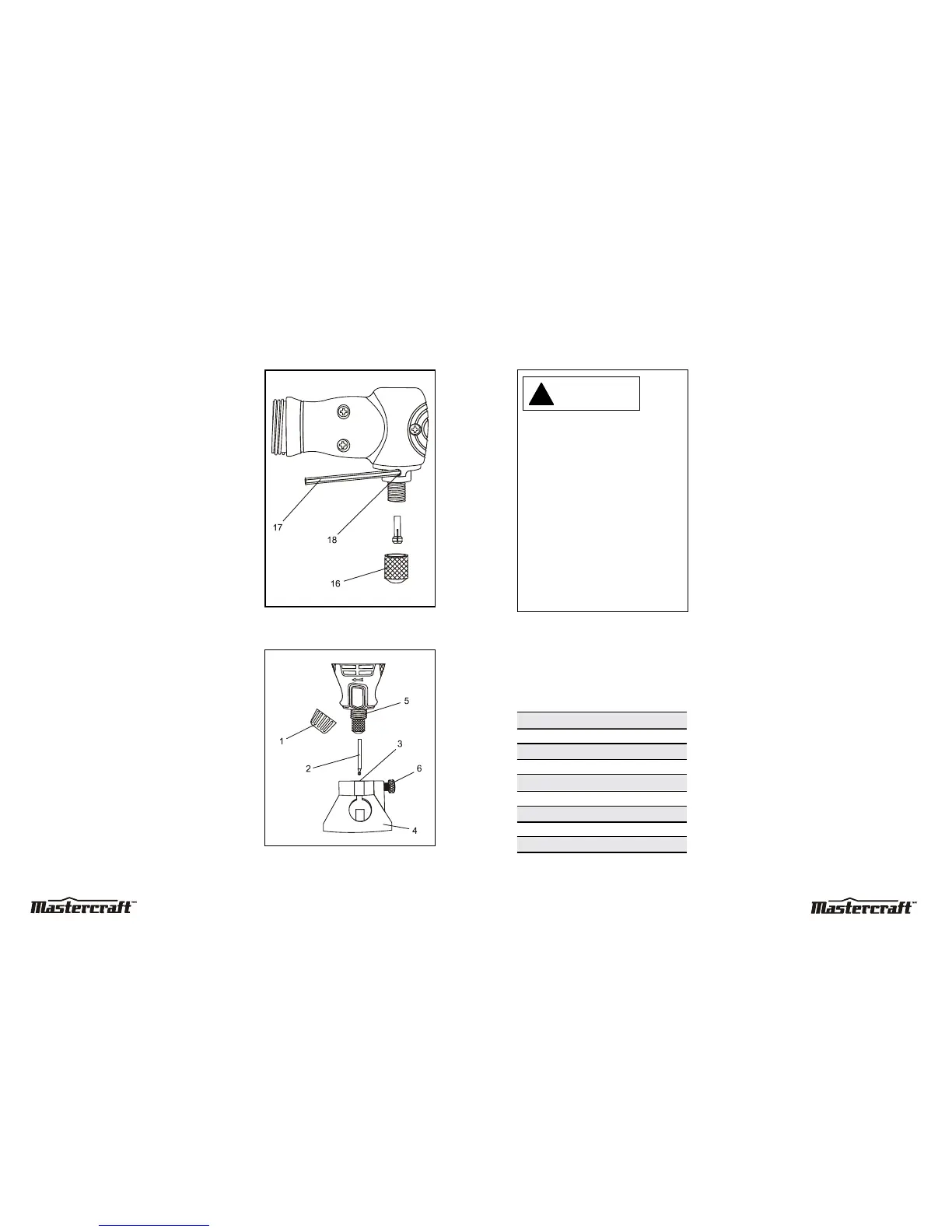

9. To change collet and accessories in the
right angle attachment, follow the basic
procedures as outlined for the rotary tool
(g. 3). To lock the spindle, rotate the collet
nut (16) until you can insert the L-key (17)
into the hole in the shaft (18) (g. 6).
Installing the right angle
cutting guide
The right angle cutting guide is used to hold the
tool at a consistent right angle to the workpiece
while cutting or grinding. It allows the rotary tool to
be used in a similar manner to a router.
1. Remove the nose nut (1) from the tool by
turning it counter-clockwise (g. 7).
2. Install the appropriate bit in the tool (2)
(g. 3).
3. Install the cutting guide (3) on the tool by
turning the base (4) clockwise onto the
threaded portion of the tool spindle (5).
NOTE: DO NOT over-tighten.
4. To set the cutting depth, loosen height
adjusting screw (6), slide the tool up or down
in the base to the appropriate cutting depth
and retighten the screw.
NOTE: Do NOT over-tighten screw.
g. 6
g. 7
22
OPERATING INSTRUCTIONS
Have you read “GENERAL SAFETY WARNINGS”,
“POWER TOOL SAFETY”, “SPECIFIC SAFETY
RULES”, “EXTENSION CORD SAFETY” and
“SYMBOLS” on pages 5 through 12 of this
Instruction Manual? If not, please do it now
before you operate this rotary tool. Your safety
depends on it!
Every time you use the rotary tool you
should verify the following:
1. The accessory is in good condition
and not damaged in any way.
2. The workpiece is properly secured.
3. Safety glasses are being worn.
Failure to adhere to these safety rules can
greatly increase the chances of injury.
OPERATING INSTRUCTIONS
23
Selecting proper speeds
Different speeds are required depending upon the
type of operation being performed. The following
chart outlines those basic speeds:
Operation Speed
Cutting metal Medium to Maximum
Sanding wood Medium to Maximum
Cutting hard metal Medium to Maximum
Engraving metal Medium
De-burring Medium
Drilling holes Medium
Removing rust Low to Medium
Sharpening Low to Medium
Polishing Slow
WARNING
