Get Faults
Selecting [Get Faults] queries the engine(s) ECU for feedback on diagnostic codes that have
been activated and stored in the ECU for service needs.
Fault Code Pop-ups
A fault condition will trigger a pop-up dialog box on the screen describing the nature of the
fault. The following screens are examples of warning and shutdown fault codes
How to Hide/Show Faults
To hide the fault code pop-up being displayed on the screen, press the soft key next to the
“Hide” icon. The pop-up will disappear, however the “Warning” or “Stop” icon will remain on
the screen to indicate there is still a fault. Pressing “Hide” does not clear the fault, it only hides
the pop-up message.
When a fault code has been hidden, a “Show” icon will remain in the bottom right corner. When
this soft key is pressed, the fault code will again be displayed.
Scrolling Through Multiple Messages
The title-bar of the fault code pop-up may indicate multiple messages, as in ‘Diagnostic
Message 1 of 3’. Press or to scroll through the different messages.

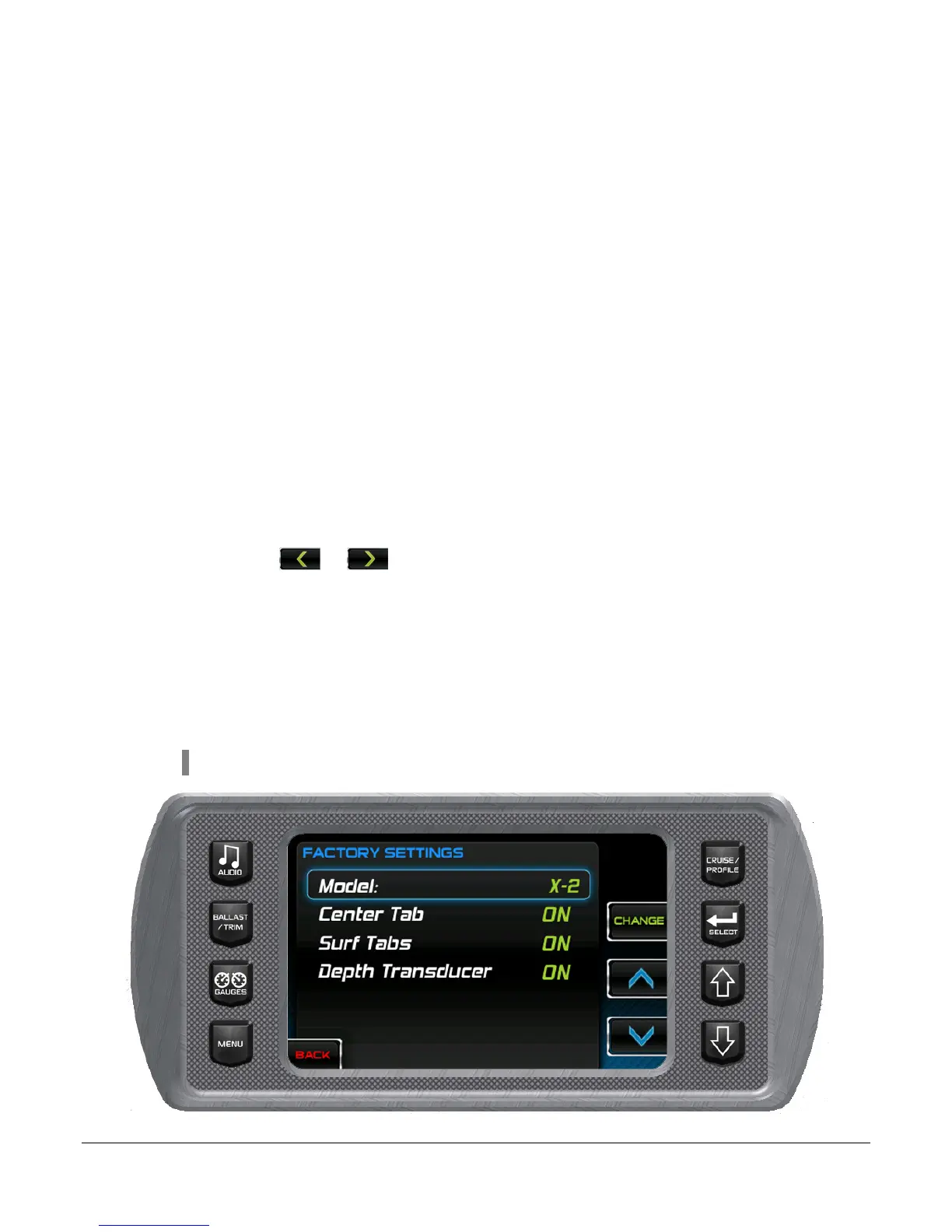

Factory Settings
This screen allows the dealer to indicate the following:
• Boat Model
• Center Tab (ON or OFF)
• Surf Tabs (ON or OFF)
• Depth Transducer (ON or OFF)
NOTE: To gain access to this screen requires enter a Dealer Code.
