MasterCraft NXT22 User Manual

2021 OWNERS MANUAL / 108
the list on the left side of the screen, and touch Start.
• To view a specific waypoint on the map, highlight the waypoint on
the list on the left side of the screen and touch VIEW ON MAP.
• To edit the name of a waypoint, highlight the waypoint on the list
on the left side of the screen and touch EDIT. (the pencil icon).
• To assign an icon to a waypoint, highlight the waypoint and touch
the specific icon to be assigned (flag, anchor, fish or fuel).
• To delete a waypoint, highlight the waypoint and touch the trash
can icon. To delete all waypoints, touch DELETE ALL.

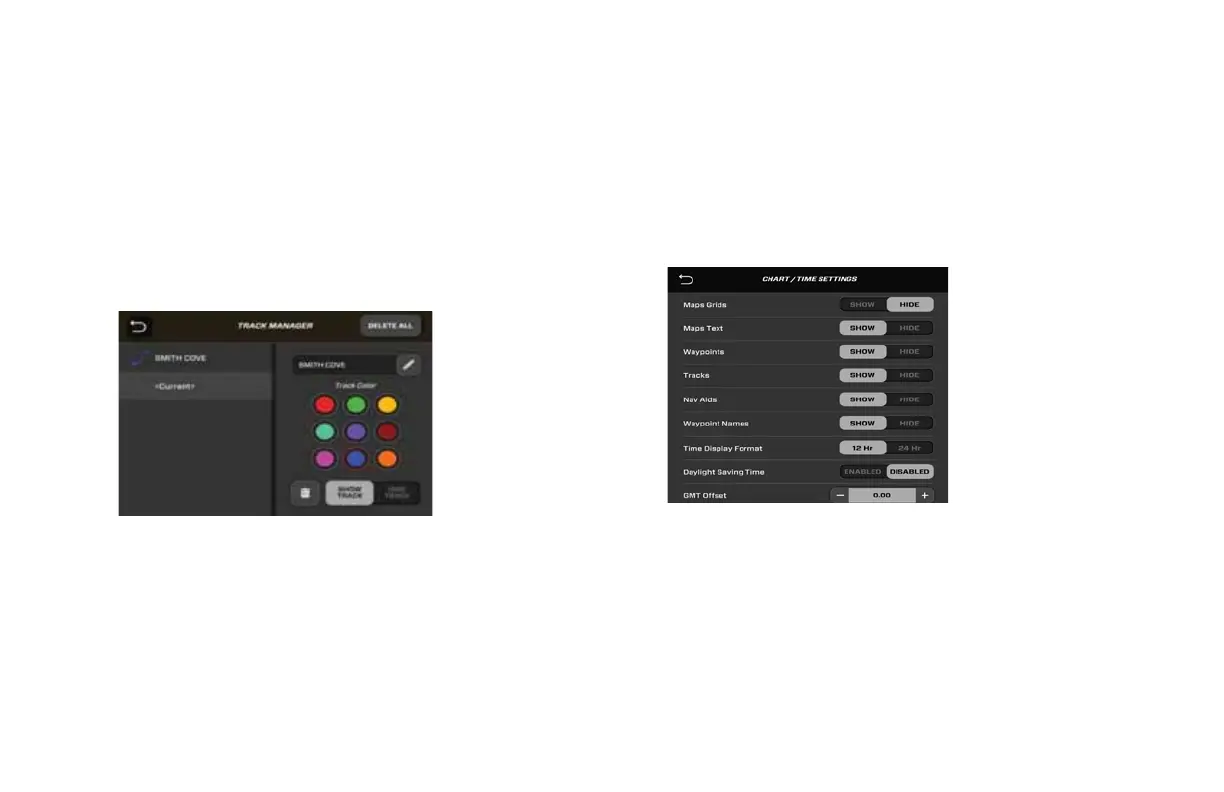

Track Manager
A track is a recording, displayed on the map, of where the boat has
traveled. Tracks are only recorded when the RECORD TRACK button
is selected. Once recorded, tracks will appear in the Track Manager
to be edited, shown or hidden on the map, or deleted.
To edit a track name, navigate to the Track Manager and highlight
the track on the list, tap edit. A keyboard will appear where operators
can make necessary changes.
To show or hide a track, navigate to the Track Manager and highlight
the track on the list. Touch SHOW TRACK or HIDE TRACK. When
hidden, the track is saved in the memory, but will not appear on the
screen.
To assign a color to a track, highlight the track and choose a color disk.
To delete one track in the Track Manager, highlight that track and
touch the trash can icon. To delete all tracks, touch DELETE ALL.
Chart / Time Settings
Chart/Time Settings allow users to turn ON or OFF the following
parameters. Touch the green or red squares to select or deselect:
• Show Grids
• Show Text
• Show Waypoints
• Show Tracks
2021MCOwnerManualFINAL.indd 108 8/26/20 1:51 PM

MasterCraft NXT22 Specifications

General

Beam	98 in
Fuel Capacity	49 gal
Seating Capacity	14 people
Weight	4, 200 lbs
Engine	Ilmor 6.0L MPI
Dry Weight	4, 200 lbs
Horsepower	373 HP
Length Overall	22 ft
