MasterCraft Prostar Series

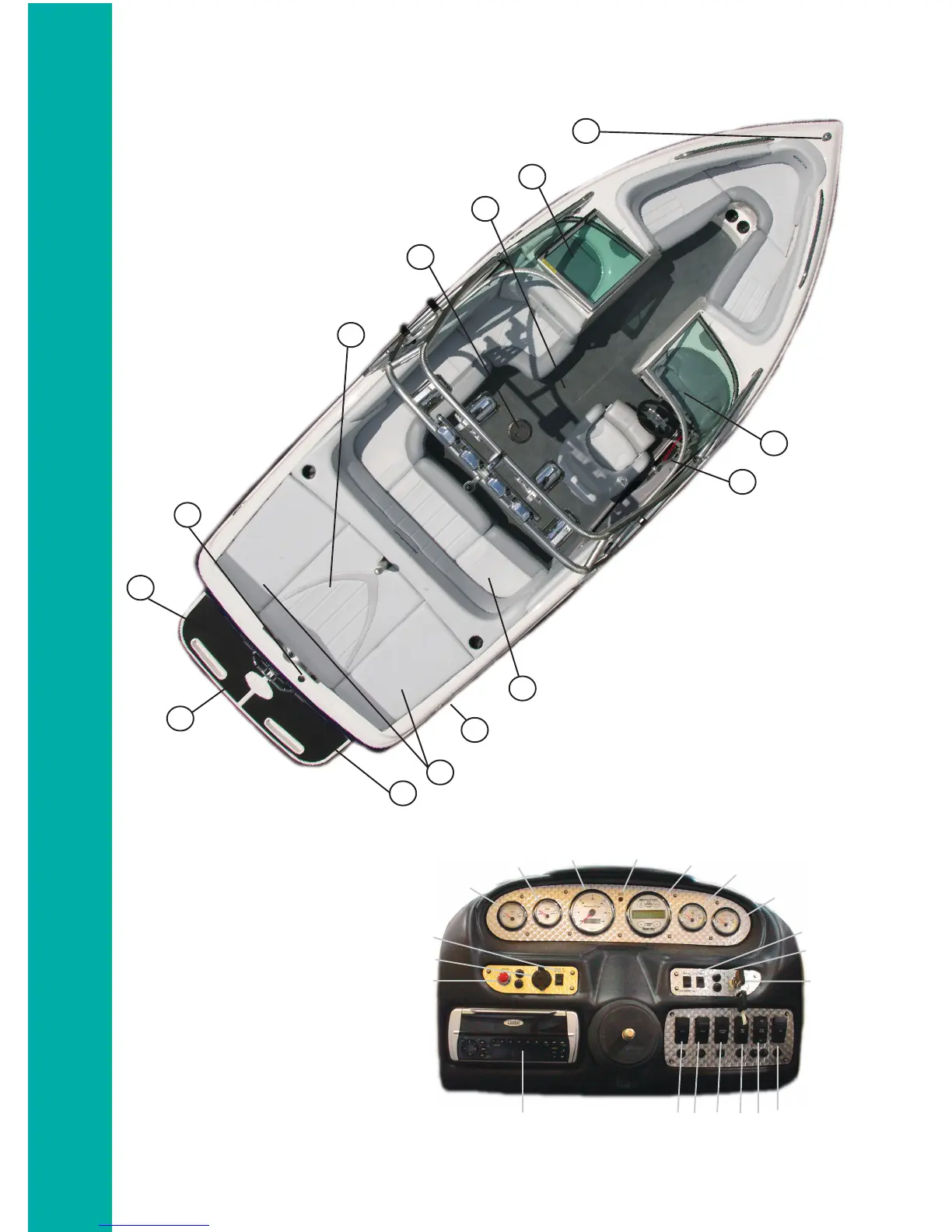

GUIDE TO INDIVIDUAL MODELS: X-10
5-12
X-
10
A STERN LIGHT RECEPTACLE
BBLOWER EXHAUST
CSWIM PLATFORM
DFUEL TAN K FILLER
ESTORAGE UNDER SUN PAD
F BATTERY (BEHIND SEAT)
G THROTTLE/SHIFT CONTROL
HINSTRUMENT PANEL
IBOW LIGHT
JGLOVE BOX
KSKI LOCKER
L ENGINE COMPARTMENT
M DRAIN PLUGS
A
C
D
G
H
J
B
E
I
F
L
AOIL PRESSURE GAUGE
B ENGINE TEMPERATURE GAUGE
CMULTI-FUNCTION/TACHOMETER
D CHECK ENGINE LIGHT
E SPEEDOMETER OR PERFECT PASS
F VOLTMETER
GFUEL GAUGE
HHORN
I 12-VOLT RECEPTACLE
J GAUGE DISPLAY SELECTOR
K SPEEDOMETER CALIBRATOR
LBLOWER SWITCH
M IGNITION KEY SLOT
N STEREO INSERT
O ACCESSORY 1 SWITCH
P ACCESSORY 2 SWITCH
Q COURTESY LIGHTS SWITCH
RNAVIGATION/ANCHOR LIGHT SWITCH
SBILGE PUMP SWITCH
T ACCESSORY
a
b
cd
e
g
h
i
j
k
l
m
n
op
q
r
s
f
t
K
M
M
LENGTH OF BOAT: .............................................. 20’9”
OVERALL LENGTH W/TRAILER: ............................. 22’7”
LENGTH W/SWING-AWAY TONGUE FOLDED: ...... 20’11”
WIDTH AMIDSHIP: .................................................... 95”
OVERALL WIDTH W/TRAILER ................................. 100”
BOAT HEIGHT W/WINDSHIELD ................................. 68”
HEIGHT W/WINDSHIELD & TRAILER (TA) .......... 80-1/2”
HEIGHT W/WINDSHIELD & TRAILER (SA) .......... 81-1/2”
HEIGHT W/TOWER FOLDED ON TRAILER (TA) . 92-1/2”
HEIGHT W/TOWER FOLDED ON TRAILER (SA) ......... 94”
BOAT WEIGHT: ............................ 3,075 LBS. (APPROX.)
SINGLE AXLE TRAILER WEIGHT: ......................... 900 LBS.
TANDEM AXLE TRAILER WEIGHT: .................... 1,050 LBS.
FUEL CAPACITY: ......................................... 45 GALLONS
CAPACITY: ........................... 10 PEOPLE OR 1,590 LBS.
