MasterCraft X-2 User Manual

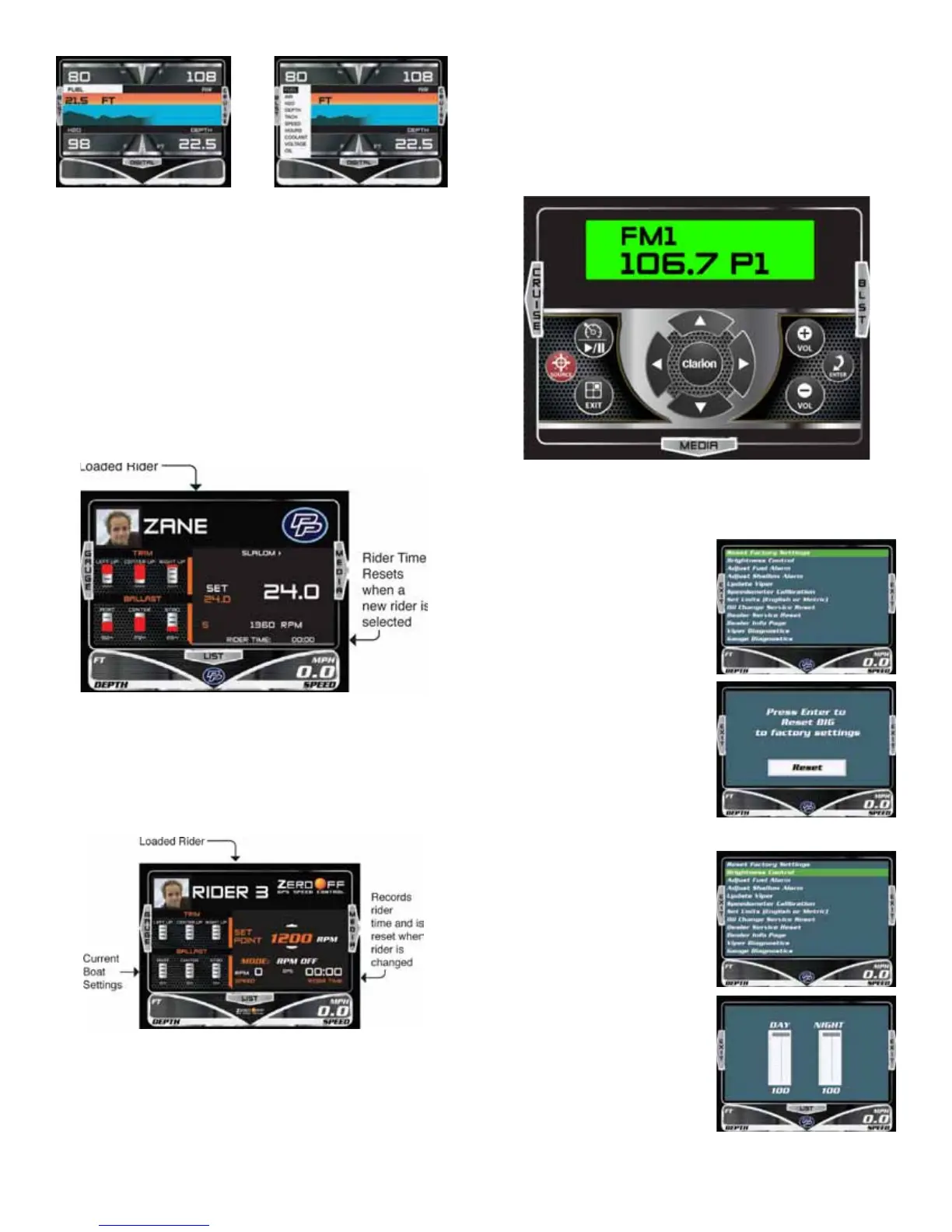

TheDigitalDataScreendisplayssevendierentparameters.Youcan
choose what is displayed except for the main depth chart. To make
changes,pressENTERandahighlightboxwillappear.Useanyarrow
keytomovethehighlightboxtooneofthefour(4)parametersinthe
mainscreenarea.PressENTERoverthehighlighteditemandalistof
choicesappears.ArrowDOWNtowhatyouwouldliketodisplayand
pressENTER.Afterafewsecondsthehighlightboxwilldisappear.
PERFECT PASS SCREEN
 UsetheCRUISEbuttontoturnPerfectPassONandOFF.Usethe
“+”,“-“andtheENTERbuttonstonavigatethroughthePerfectPass
screens. The DOWN arrow will bring up the Rider List.
ZERO-OFF SCREEN
 UsetheCRUISEbuttontoturnZeroOONandOFF.Usethe“+”
and“-“buttonstochangetheSetPointofZeroO.TheDOWNarrow
brings up the Rider List.
RADIO SCREEN
 Inthismode,thefunctionoftheSwitchPadbuttonisillustrated
on the big screen. The radio screen allows you to control the radio the
sameway theClarionremote does. PresstheENTER buttontoen-
ter the control mode. The display will turn green, indicating that the
SwitchPadisnowcontrollingtheradio.Ifnobuttonsarepressedfor
ve(5)seconds,thecontrolreturnstonormaloperation.
SET-UP SCREENS
RESET FACTORY SETTINGS
Returns all settings to the origi-
nalfactorysettings.UsetheENTER
button to activate the reset mode.
PresstheHOMEbuttontoexit.
BRIGHTNESS CONTROL
 Achievedbyadjustingthelight
levels for both DAY and NIGHT.
ThesystemwillactivatetheNIGHT
lighting when the navigation lights
are on. Use the ENTER button to
select the DAY and NIGHT slide
bars. The up and down buttons
control the adjustment. Press the
HOMEbuttontoexit.
MasterCraft 2012 Owners Manual • Guide to Individual Models • Page 2-41
