MasterCraft X-2 User Manual

Displays the ballast tank levels in animation.
Displays the pitch of the boat in degrees.
Touch to go to the HOME screen.
Touch to scroll left to the MEDIA screen.
Touch to scroll right to the DIGITAL GAUGE
screen.
NOTE: ThetrimtabsandballasttanksarePlug‘nPlaytabs.Anyother
tabs or tanks are not displayed.

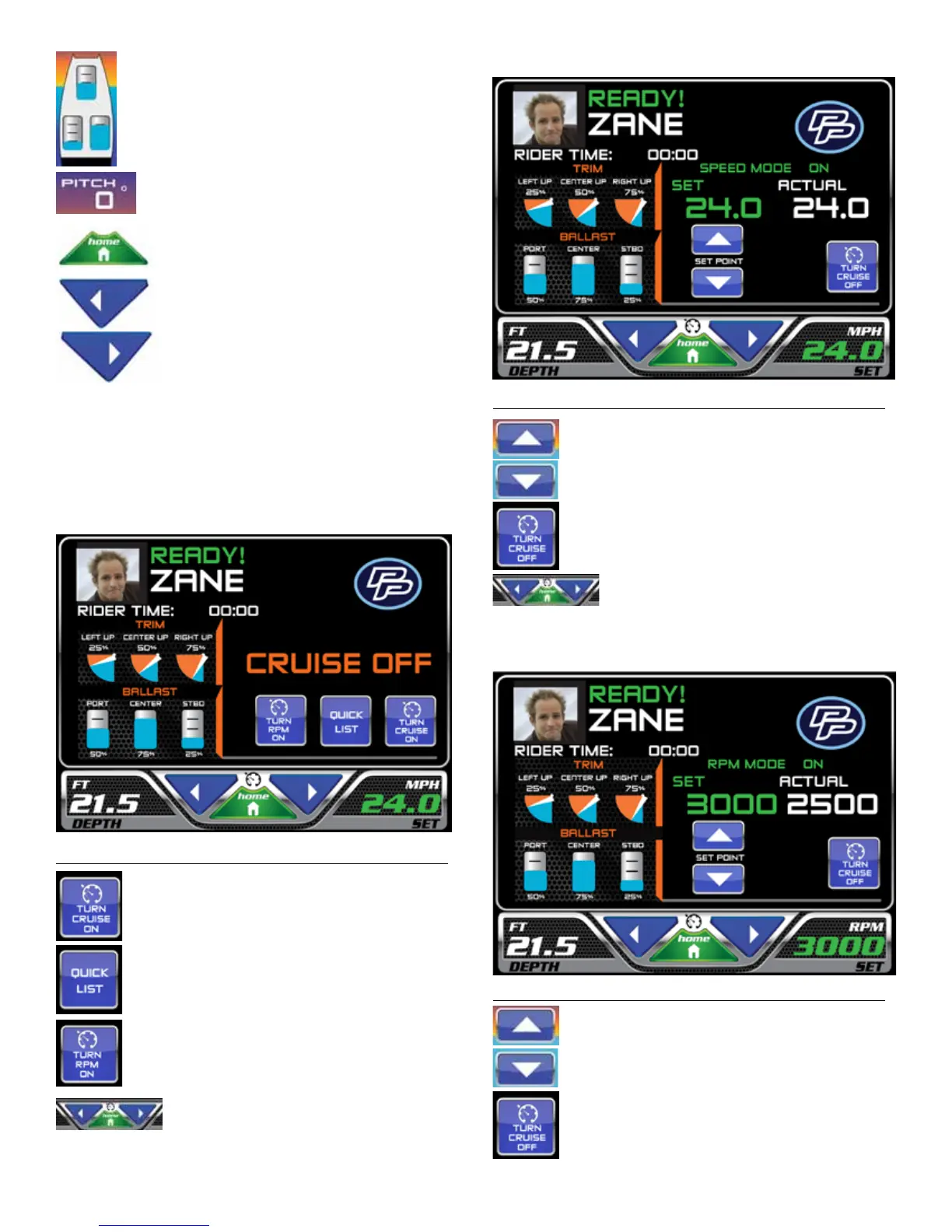

CRUISE OFF SCREEN
Controller Description
Touch to turn on Cruise in speed mode.
Touch to go to the QUICK LIST screen.
   TouchtoturnonCruiseinRPMmode.
The left button goes to the next screen on the left.
The right button goes to the next screen on the
right. The HOME button goes to the HOME screen.
CRUISE ON SCREEN (Illustrated in Speed Mode)
Controller Description
Touch to increase the speed set point.
Touch to decrease the speed set point.
   TouchtoturnCruiseoandgoestotheCRUISE
OFF screen.
The left button goes to the next screen on the left.
The right button goes to the next screen on the
right. The HOME button goes to the HOME screen.
CRUISE ON SCREEN (Illustrated in RPM Mode)
Controller Description
   TouchtoincreasetheRPMsetpoint.
   TouchtodecreasetheRPMpoint.
   TouchtoturnCruiseoandgoestotheCRUISE
OFF screen.
MasterCraft 2012 Owners Manual • Guide to Individual Models • Page 2-57
