89
/
2023 OWNER’S MANUAL
PV1100 TOUCHSCREEN
NAVIGATION AND OVERVIEW
Navigation within the PV1100 touchscreen is controlled via touch
commands. The screen is divided into upper and lower halves.

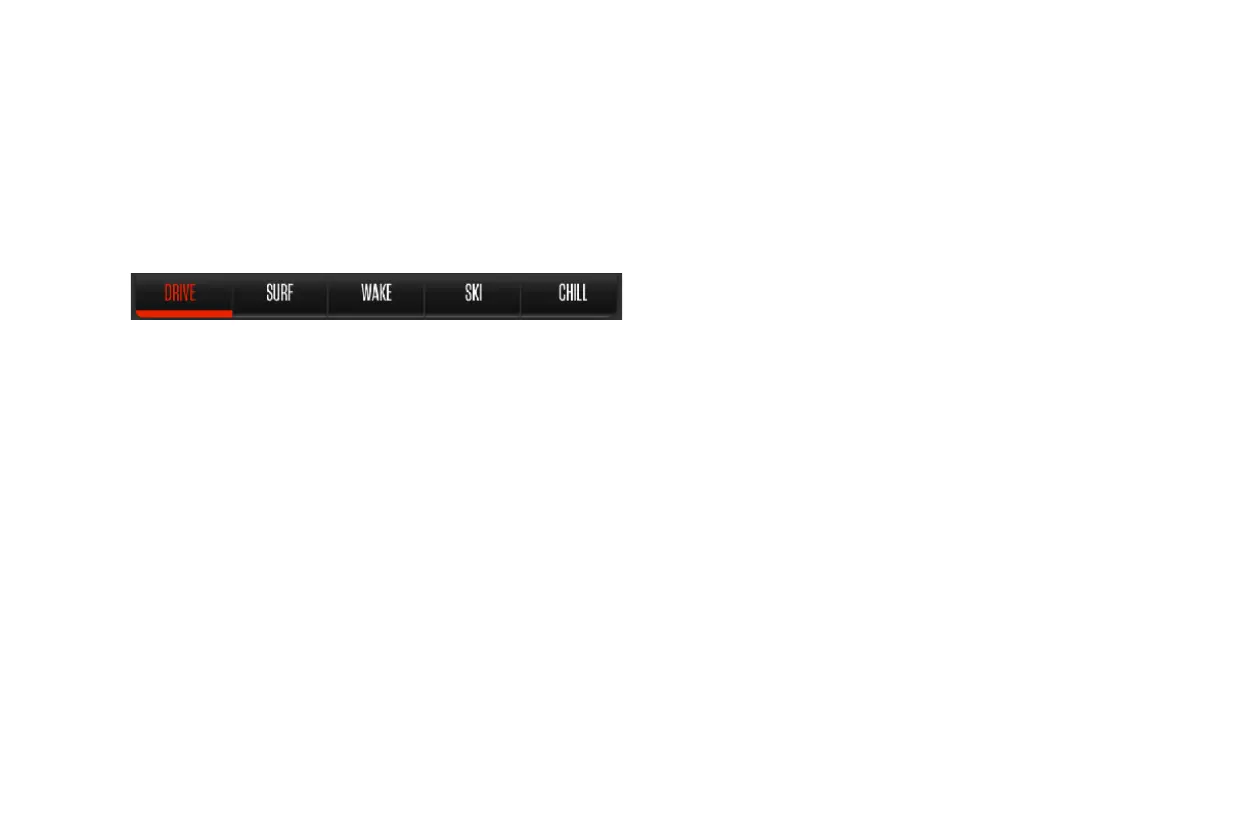

The upper half is controlled using the following selection panel:
Operating Modes
The MasterCraft Dual Screen Dash is organized around three
main on-water activities: driving from place-to-place, towing
riders, and chilling. To correspond with these activities, the Dual
Screen Dash features three primary operating modes: Drive, Tow,
and Chill.
• Drive Mode displays basic operating information for cruising. From
Drive Mode, you can quickly adjust speed, tabs, and ballast.
• Tow Mode is broken down into three modes: Surf, Wake,
and Ski. Factory-loaded profiles for ballast, speed, and tab
configurations are easy to select and modify when using Tow
Mode. You may also use Tow Mode to create your own custom
profiles.
• Chill Mode should be used when driving under 2 MPH or when
stopped. It is intended for relaxation, and features stereo
controls that make it easy to find and play your favorite music.
To switch between these modes, tap the buttons at the top of
the touch display. Note that the operator cannot switch between
modes while the throttle is in gear (forward or reverse).
