Location
Removable shades mount to either the front or back of the bimini to
provide additional shade. When not deployed, they can be stored in
the provided storage bags and be placed under seating.
Operation
SUNSHADE FOR USE WHEN THE BOAT IS NOT IN MOTION!
The sunshades mount to the bimini using a series of buckles and
tension poles. To install the poles into the deck:
To install the forward sunshade:
1. Remove the sunshade and poles from the storage bags.
2. Un-fold and lay out the sunshade with the buckles facing the
tower. Ensure that the material is facing the correct side up.

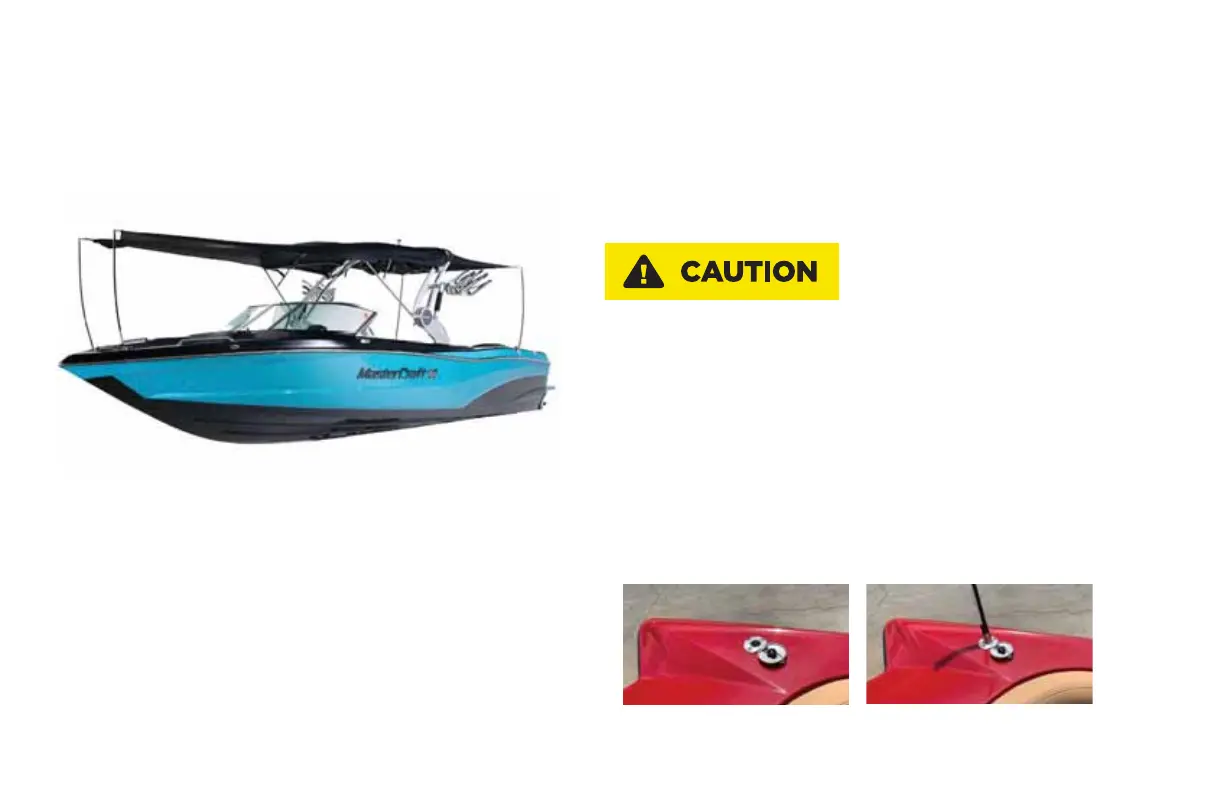

3. Insert the tension poles into the gunnel mounting points. Ensure
that they are properly seated in the mount.
EXTENDABLE SUNSHADE
FORWARD AND AFT
Models
XT22, XT23, XT25, X22, X24, X26 and XStar models equipped with
ZFT4 or ZFT7 towers.
Purpose
The extendable sunshades provide additional shade when the boat
is at rest to keep occupants cool and protected from the sun’s rays.
2021MCOwnerManualFINAL.indd 289 8/26/20 1:53 PM
