2013 MasterCraft Owners Manual • Guide to Individual Models • Page 2-37
Boats may also be equipped with towers, which
may include stereo speakers, and/or lights.

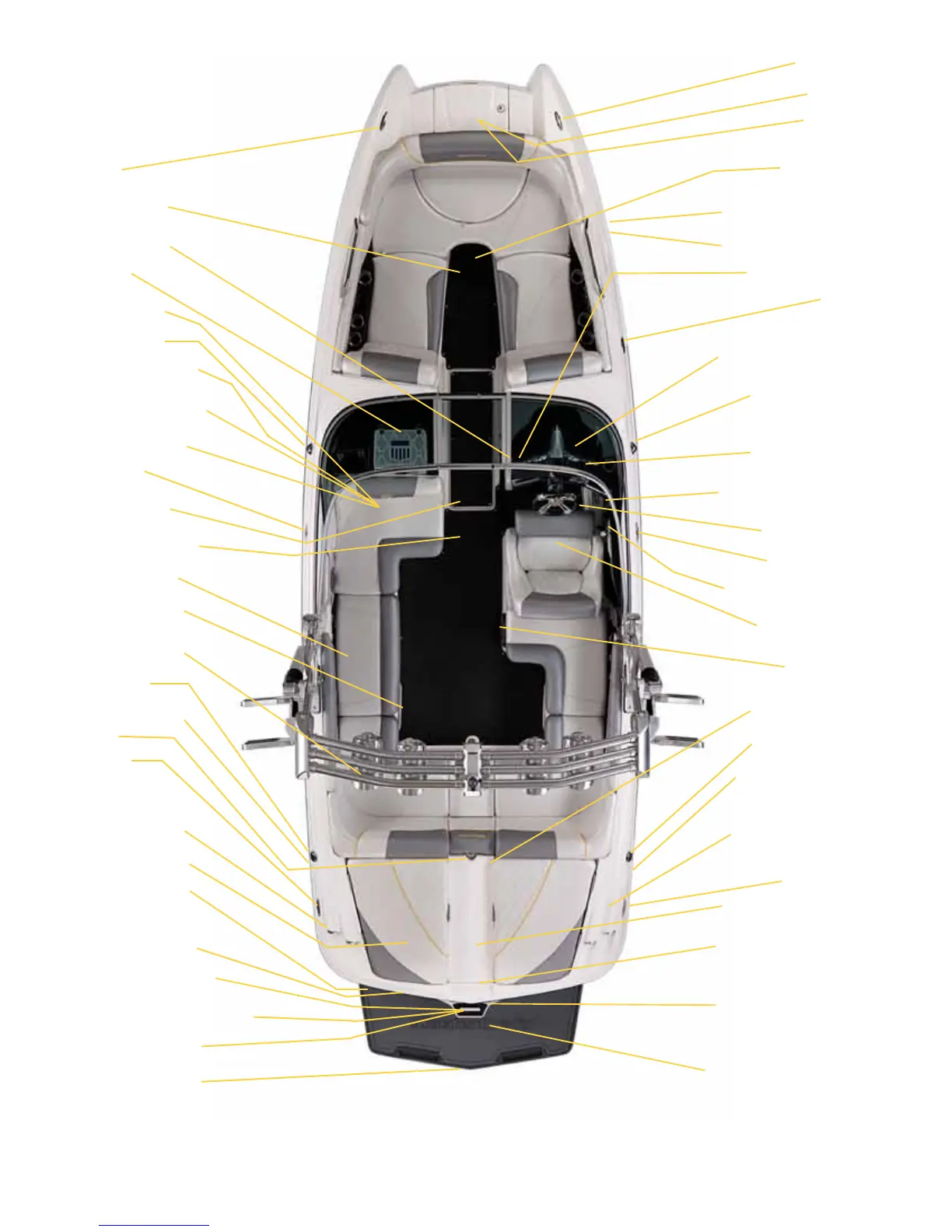

Bow cleat
Bow filler cushion
(where equipped)
Stereo remote (on dash)
and Amp (below)
Glove box
iPod interface
(where equipped)
Nav/anchor light
Amp (where equipped)
Hand-held fire extinguisher
(beneath observer seat)
Heated observer seat
(where equipped)
Midship cleat
Walk-thru seat
(where equipped)
Center drain plug (under
inspection plate)
Cooler (under seat)
Cockpit table mount
(where equipped)
Batteries (including
ON-OFF switch)
Fuel tank filler
Ballast thru-hull vent
Ski pylon
Stern cleat
Engine compartment
exhaust (two, on top
of port and starboard
deck near transom)
Sun deck filler cushion
Surf tabs
(under swim platform,
where equipped)
Underwater lights
(two where equipped)
Transom rail with tow eye
Transom drain plug
(center beneath swim platform)
Wake adjustment plate
(where equipped)
Under-platform ladder
(where equipped)
Bow cleat
Anchor
Ladder
(where equipped)
Ballast tank
(beneath floorboard)
Bilge thru-hull outlet
Ballast thru-hull vent
Adjustable mirror
Horn
Circuit breaker panel
(on kick panel beneath
instrument panel)
Nav/anchor light
Instrument panel
(details elsewhere
in this section)
Fire suppression unit
manual override
Steering wheel
Midship cleat
Shift/throttle control
Heated seat
(where equipped)
Subwoofer
Automatic
fire extinguisher
Fuel tank filler
Bilge thru-hull vent
Engine compartment
exhaust (two, on top of
port and starboard
deck near transom)
Stern cleat
Engine compartment
Shower wand & switch
(where equipped,
inside compartment)
Stern light receptacle
(if equipped with tower,
the light will be in
center aft of tower)
Transom stereo remote
(where equipped)
Storage space is located:
Under observer’s seat
Under bow seating
Under aft and wrap-around seating
Under port and starboard sun pads
