DIAGNOSTICS

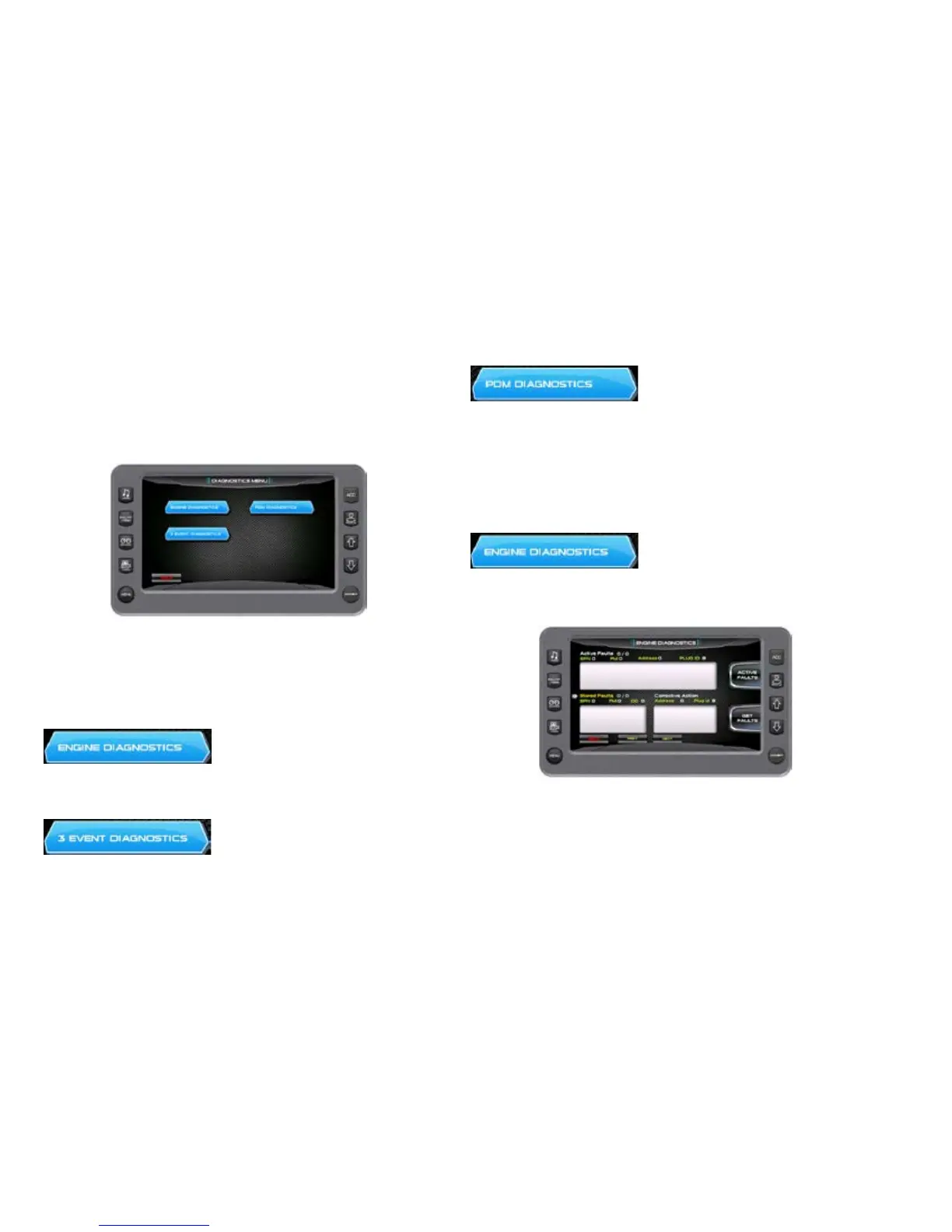

On the Settings Menu, touch the Diagnostics touch command to
access the Diagnostics screen.
When choosing this selection, the display will query the engine(s)
ECU, as illustrated following, and provide feedback.
Touch Commands Description
Engine Diagnostics - Displays feed-
back on any diagnostic codes that
have been activated and stored in the
ECU for service needs.
3 Event Diagnostics - Displays any 3
Event fault codes that have been ac-
tivated and allows you to clear faults.
PDM Diagnostics – Displays short
circuits, open circuit, over current,
in/out of range, and faults within the
system outputs, switch inputs, ana-
log inputs, and CAN communication.
ENGINE DIAGNOSTICS
On the Diagnostics Menu, touch the
Engine Diagnostics touch command
to access the Engine Diagnostic
screen.
The following is a list of field definitions contained on the ENGINE
DIAGNOSTICS screen:
To Next Page
