SPRAY GUN HANDLING
This spray gun is rugged in construction and is built to yield exceptional value. The life of this product
and the efficiency of its operation depend upon knowledge of its construction use and maintenance.

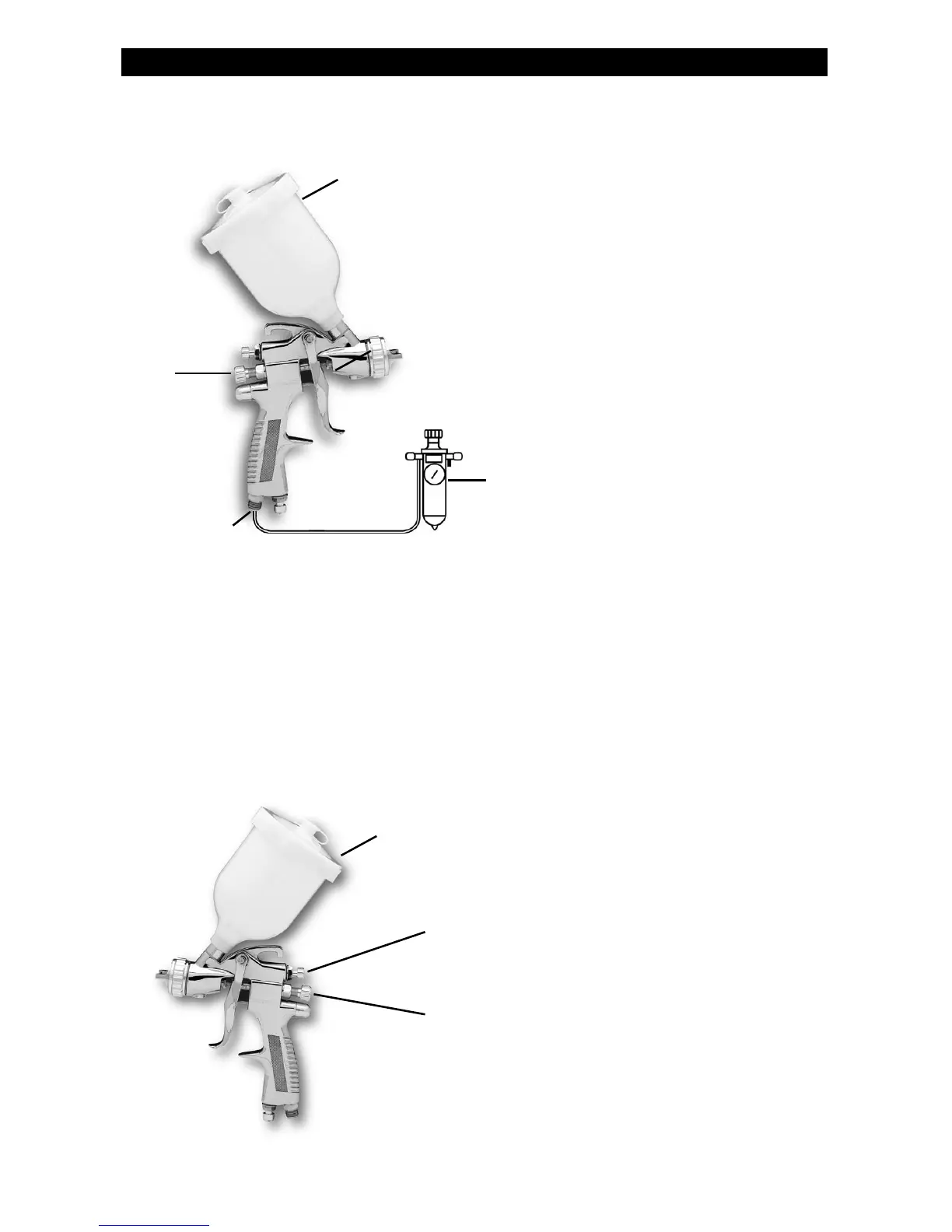

GRAVITY FEED CUP HOOKUP
Air pressure for atomization is regulated
at extractor. Amount of fluid is adjusted by
Fluid Control Knob on gun, paint viscosity
and air pressure.
FOR BEST PERFORMANCE, PLEASE BE SURE TO DO THE FOLLOWING
BEFORE USING THIS TOOL.
Tighten the gun to the cup securely with the nut and fitting supplied. Be sure to have the proper air
pressure at the gun to operate. Proper air pressure for this tool should be 35 PSI for lacquer and 45 PSI
for enamel. Adjust fluid control screw and spray width adjustment screw to your desired pattern before
using on production. Clean all parts after use.
ADJUSTMENTS
SPRAY PATTERN ADJUSTMENT KNOB:
Turn right for round, left for fan.
FLUID CONTROL KNOB:
Turn right to decrease flow, left to increase.
5
Plastic Cup
Plastic Cup
Fluid
Control
Knob
Air Inlet
Air Hose
Compressed
Air
Oil and Water
Extractor
