MasterMover MasterTug MT600+ - Control Head Overview

Controls & Indications
7
Controls & Indications
Control Head

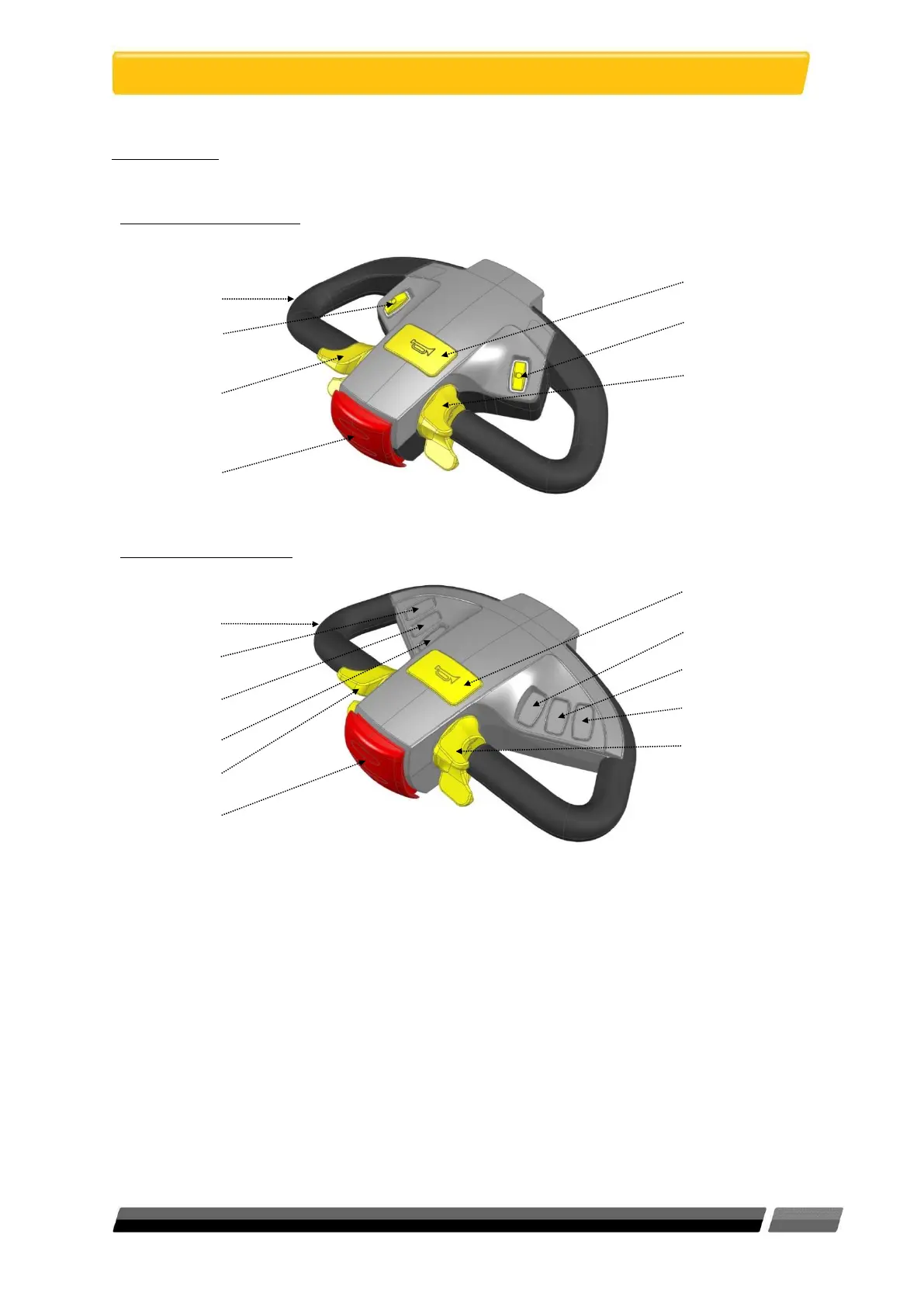

The Control Head is the steering wheel of the MasterMover machine. There are two variants:
Two button configuration
1
2
3
4
5
6
3
Six button configuration
1
2
7
8
3
4
5
9
10
6
3
1. Steering handles
2. Two speed selector switch (Option): See page 12
3. Forward/reverse throttle and brake lever (referred to as throttle lever)
4. Anti-crush button
5. Warning horn
6. Hydraulic coupling switch: See page 9
7. Dependant on application
8. Dependant on application
9. Dependant on application
10. Dependant on application
