INSTALLATION INSTRUCTIONS
IMPORTANT – PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
Safety Warning
Always use in accordance with these safety instructions. If in doubt consult a qualied electrician or contact our Technical Support
service.
● Do not exceed maximum load = 13(2)A, 3120 Watts (2AX Inductive Load)
● Always ensure the appliance plug is fully inserted into the timer socket
● Do not immerse in water. If cleaning is required, removed from the socket and wipe with a dry cloth.
● Do not use if damaged
● Do not use with high current devices, heaters or motors
● Do not use with energy saving bulbs
● Keep out of sight and reach of children
- For indoor use only

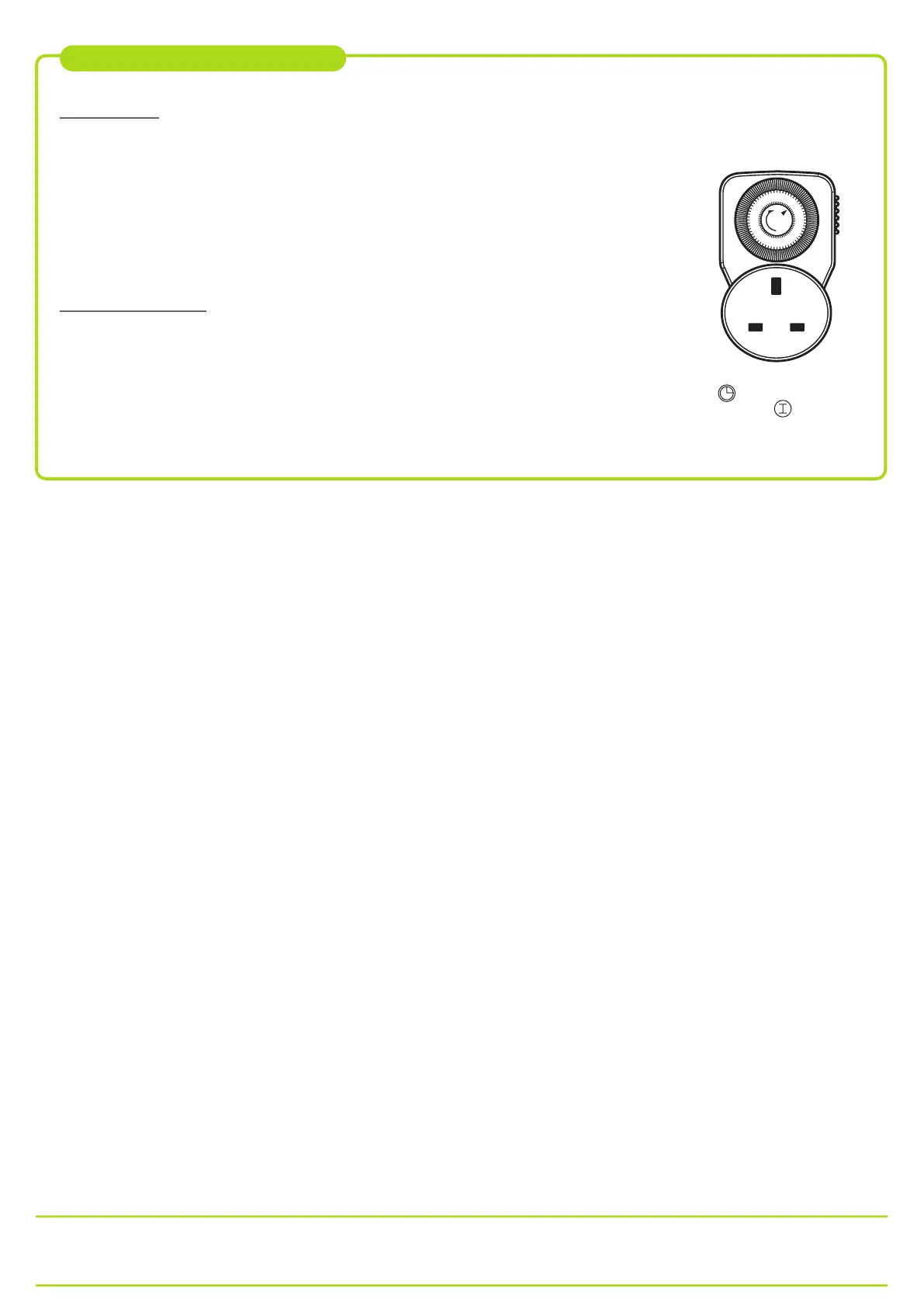

Operating Instructions
● Insert the timer into the required socket outlet, and then plug the appliance to be controlled into this timer.
● Push down the blue segments on the timer face corresponding to the desired operating time.
(One segment = 15 minutes).
● Turn the disk clockwise, following the direction of the arrows, until the grey marker is pointing at the current time.
● To activate the timer function ensure that the switch on the side is down and so indicating the timer symbol.
● For manual override, to disable the timer function, move switch to the up position and so indicating the timer symbol.
● Maximum load = 13(2)A, 3120 Watts, 240 Volts (2AX Inductive Load).
DO NOT OVERLOAD THE TIMER
