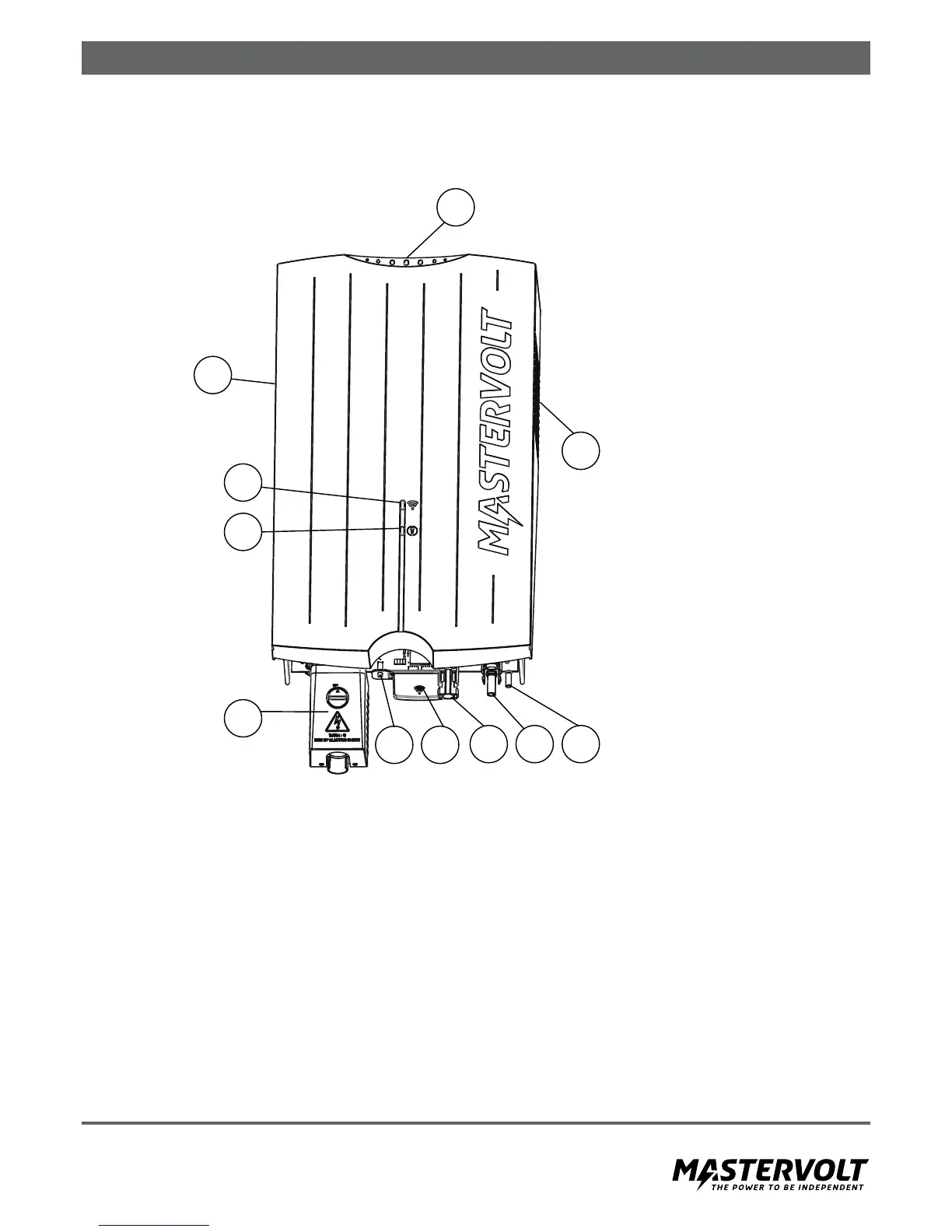

Mastervolt Soladin 1500 Web

1. Power LEDs (Section 6.4)
2. Cooling fan
3. WIFI LED (Section 6.4)
4. Status LED (Section 6.4)
5. AC connection compartment (Chapter 5)
6. WIFI connection button (Section 6.4)
7. WIFI antenna
8. DC plus input (Chapter 5)
9. DC minus input (Chapter 5)
10. Ground screw (Chapter 5)
11. Cooling outlet
1
3
4
5
6 7
8
9
10
11
2
