Mastervolt WHISPER 8 ULTRA User Manual

USA / WHISPER 15 ULTRA / May 2004 9
3836 22 43 37 21
11910
8
43
37 36 38 12 34 13 6 5
21 2 26 14441 44
22
46
47
33 32 30 31 29 24 7 15 19 14 8 27 16 9 18 36 17
40 25 39 42 28 35 20 23 18
44 41
44
45
INFORMATION

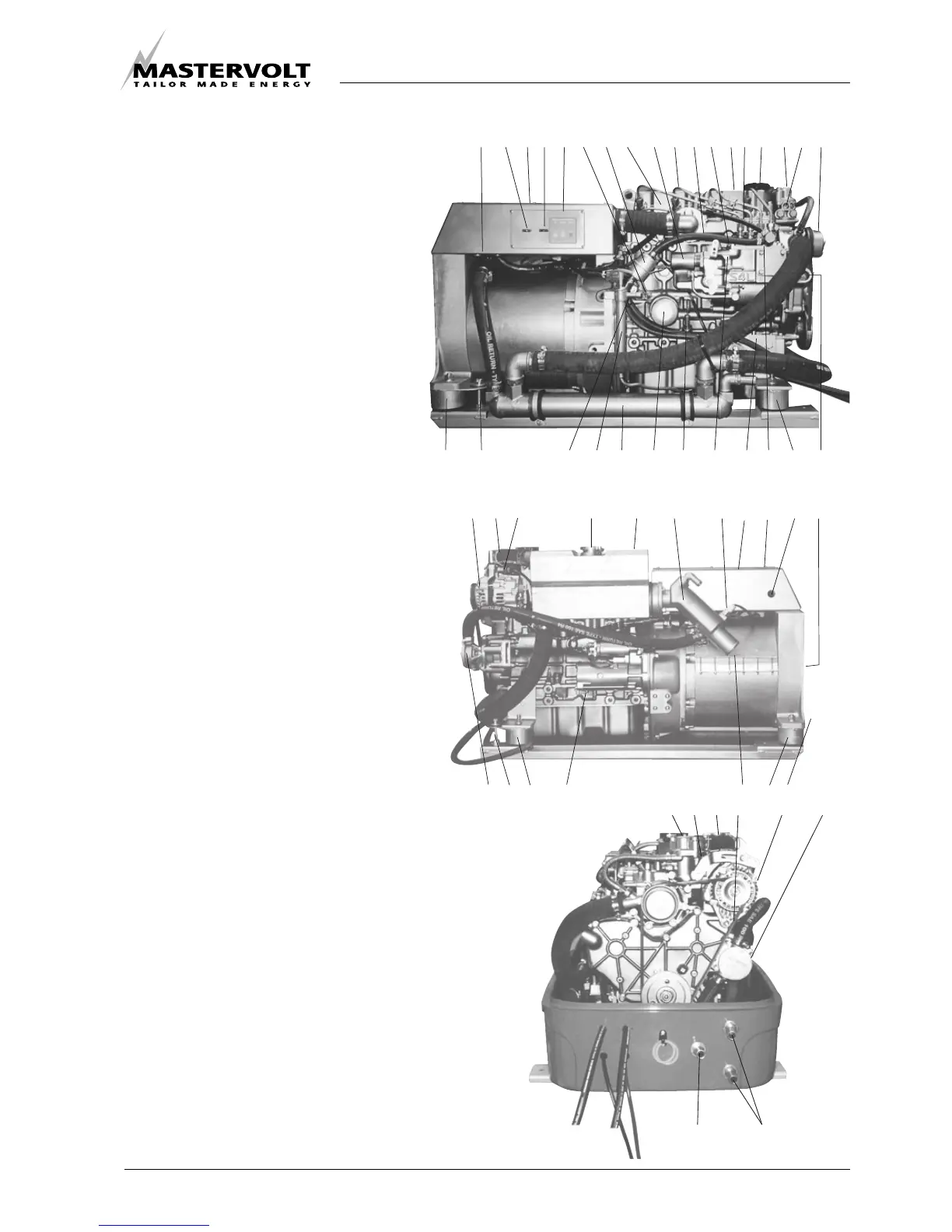

Fig. 2: Overview Whisper 15000 ULTRA.
2.4 COMPONENTS
2.4.1 Main components to identify
1 Air inlet;
2 Starter motor;
3 Battery connection ( negative);
4 Battery connection ( positive);
5 AC 120/240V wiring;
6 AC 120/240V output connection box;
7 Fuel filter;
8 Fuel pipe inlet;
9 Fuel pipe return;
10 Bypass hose air vent;
11 Cooling water in;
12 Exhaust manifold (water cooled);
13 Thermo-switch exhaust;
14 Injector 3x;
15 Glow 3x;
16 Valve cover;
17 Circulation pump;
18 Filling cap oil 2x;
19 Solenoid;
20 Electric fuel lift pump;
21 Raw water pump;
22 Cooling liquid temperature switch;
23 Fuel pressure pump
24 Oil pressure switch;
25 Oil sump pump;
26 Exhaust connection;
27 Fuel vent screw;
28 Oil level indicator;
29 Control panel;
30 Capacitors / voltage regulator (optional);
31 Fuse 1;
32 Fuse 2;
33 Remote control cable;
34 Cooling water injection;
35 RPM adjustment screw;
36 Thermostat housing;
37 Alternator;
38 Filling cap coolant;
39 Heat exchanger;
40 Drain plug coolant;
41 Failsafe;
42 Oil filter;
43 V-belt;
44 Rubber vibration mounting 4x
45 Boiler connection
46 PTO hydropump
47 Digital Diesel Control unit
