MT2769 5 rev. 3/27/15

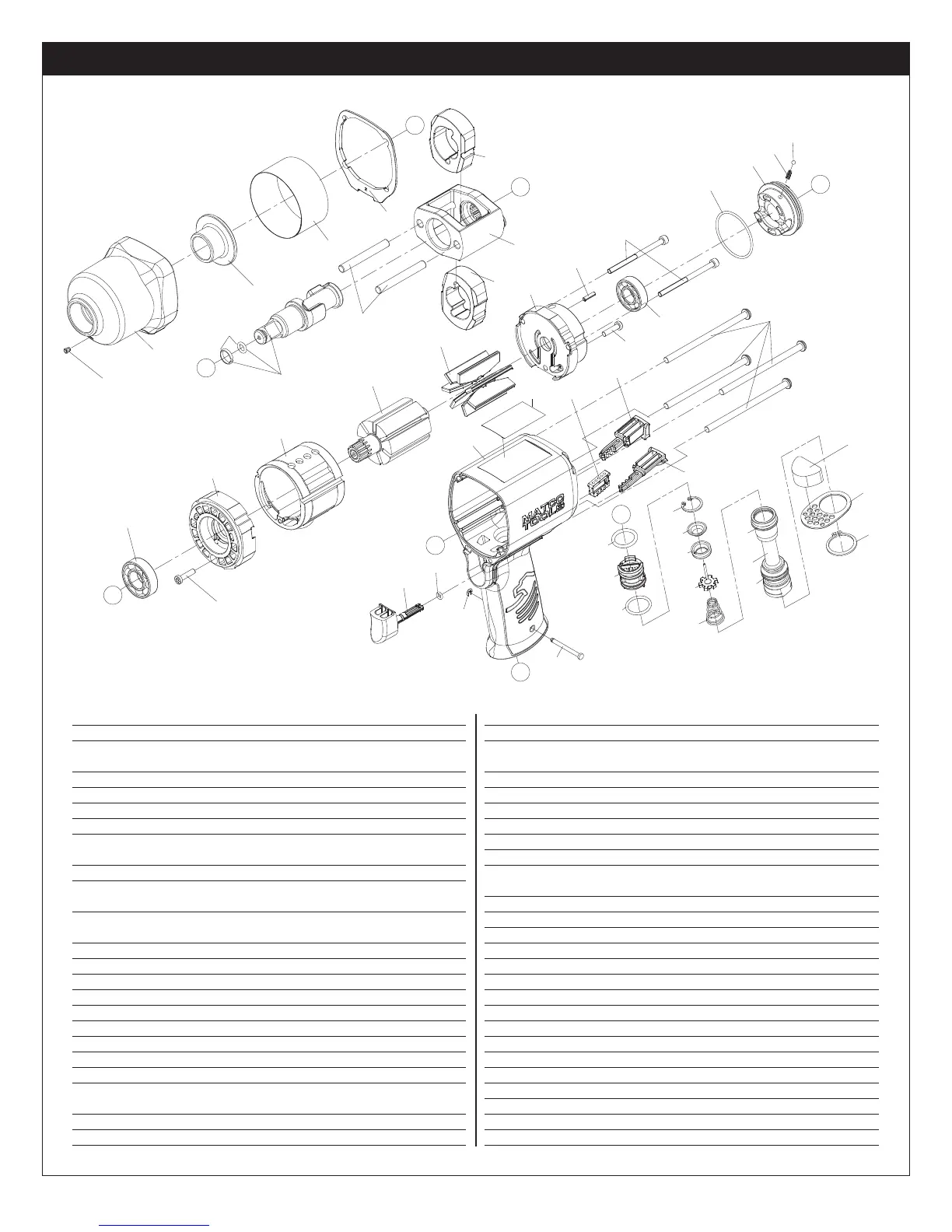

MT2769 1/2" IMPACT WRENCH
101 RS1837220 Hammer Case Grease Fitting 1
102 RS0260102 Hammer Case Assembly
(Including #101, 103, 104, 105) 1
103 RS0260103 Hammer Case Bushing 1
104 RS0260104 Steel Shield 1
105 RS0260105 Hammer Case Gasket 1
106 RS0260106 Anvil Assembly (Includes #418) 1
107 RS0260107 Hammer Frame Pin
(Pack of 2) 1 pack
108 RS1761109 Hammer Frame 1
109 RS0260109 Hammer
(Pack of 2) 1 pack
201 RS0260201 Housing Assembly
(Includes # 203, 417) 1
202 RS0260202 T25 Housing Screw (Pack of 4) 1 pack
203 RS0260203 Stopper 1
204 RS0260204 Right/Forward Button 1
205 RS0260205 Left/Reverse Button 1
301 RS0260301 Hex. Soc. Hd. Bolt (Pack of 2) 1 pack
302 RS221RA32 Front Bearing (6002ZZ) 1
303 RS0260303 Front Bearing Plate 1
304 RS0260304 Cylinder 1
305 RS0260305 Rotor 1
306 RS0260306 Rotor Blade
(Pack of 7 Blades) 1 pack
307 RS0260307 Rear End Plate 1
308 RS227B25 Bearing (6001ZZ) 1
309 RS0260309 Spring Pin 1
310 RS0260310 Hex. Socket Head Bolt
(Pack of 2) 1 pack
311 RS76817 O-Ring 1
312 RS0260312 Regulator Assembly
(Including #311, 313, 314) 1
313 RS0260313 Detent Spring 1
314 RS1734416 Steel Ball Detent (3mm) 1
401 RS1074410 O-Ring 1
402 RS0260402 Throttle and Reverse Valve Assembly
(Includes #401, 402, 403, 404, 405, 406, 407, 408) 1
403 RS0260403 O-Ring (Pack of 3) 1 pack
404 RS0260404 Snap Ring 1
405 RS0260405 Seal Bushing 1
406 RS0260406 Seal 1
407 RS0260407 Tip Valve 1
408 RS1735406 Spring 1
409 RS0260409 Air Inlet 1
410 RS0260410 Mufer 1
411 RS0260411 Exhaust Plate Assembly (Including #412) 1
412 RS0260412 Snap Ring 1
413 RS0260413 Trigger 1
414 RS0260414 O-Ring 1
415 RS0260415 Retaining Pin 1
416 RS4150424 E Clip 1
417 RS0260417 Warning Label 1
418 RS0260418 (1) O-Ring and (1) Socket Retaining Ring 1 Set
109
105
104
103
102
101
418
106
107
109
108
314
313
312
311
310
309
307
306
305
304
303
302
301
413
414
416
415
403
402
401
404
405
406
407
408
403
409
403
410
411
412
201
417
203
204
301
308
202
205
B
A
A
B
C
C
D
D
