MATE 2-PIN LINE UP TOOL
USAGE INSTRUCTIONS
CHECK MULTI TOOL ALIGNMENT (CONT.)

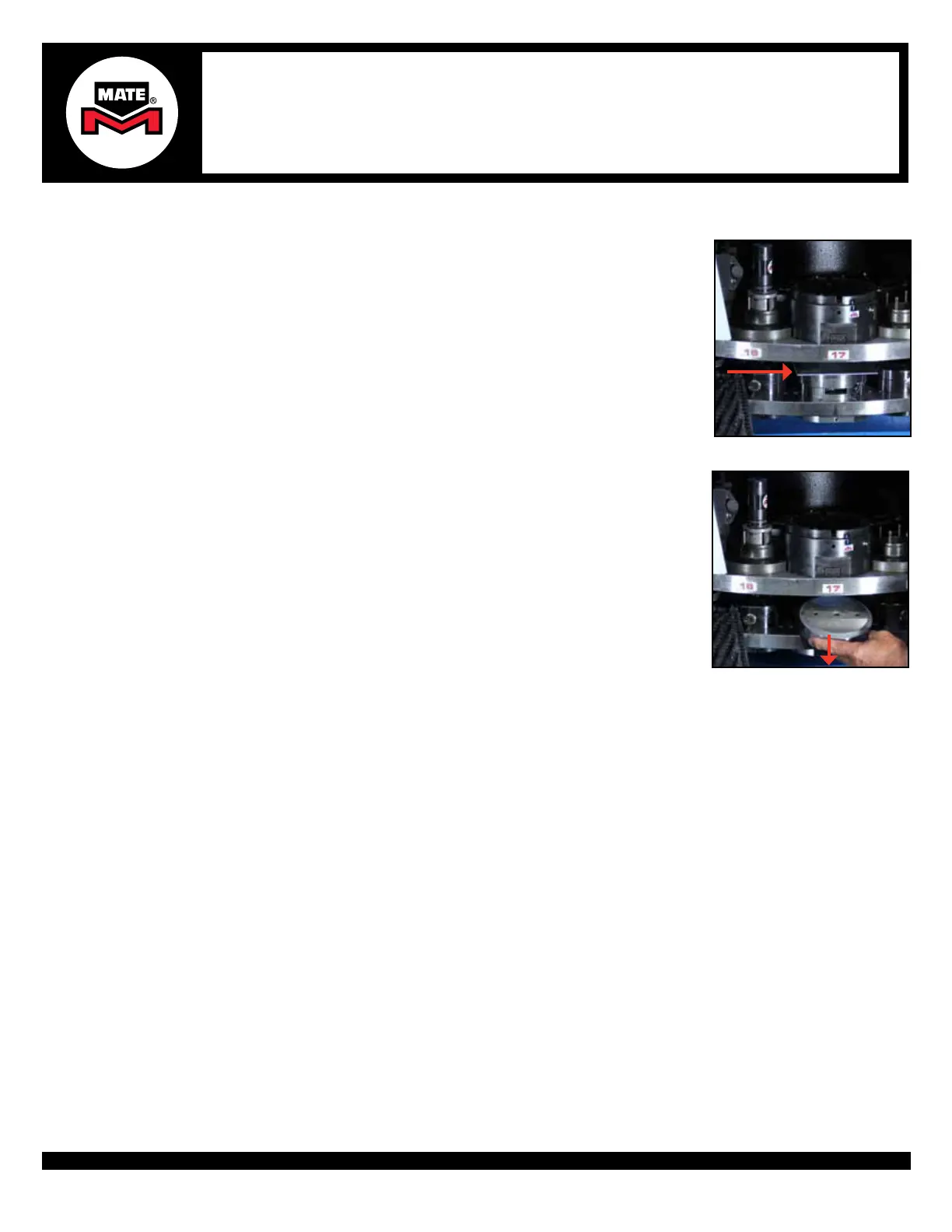

8. Once the piece of metal is in place, dis-engage the machine turret alignment pins and
rotate the station back to the tool change position.
9. Remove the Alignment Punch and Alignment Die or Die Carrier.
Step 8
Step 9
