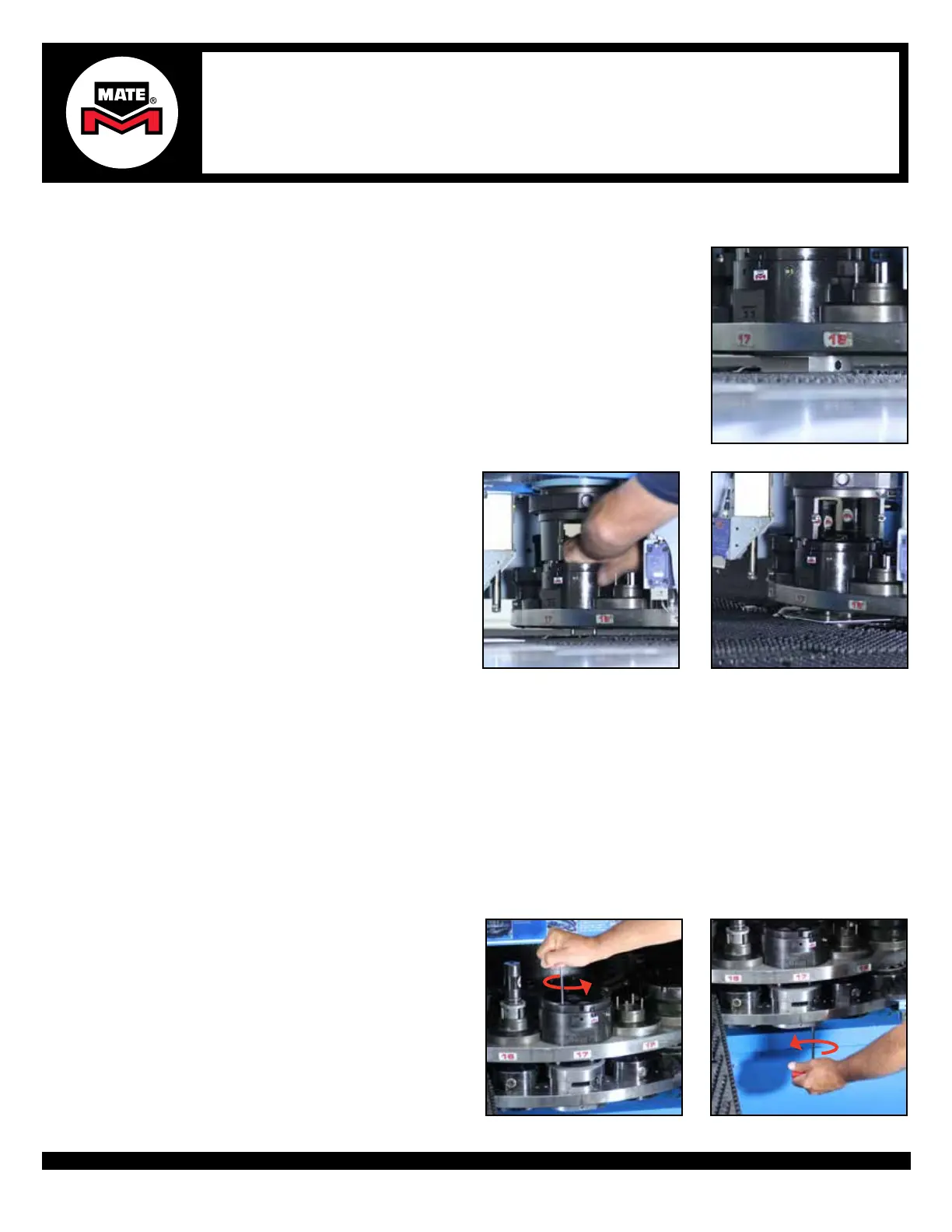

MATE 2-PIN LINE UP TOOL
USAGE INSTRUCTIONS
Step 13bStep 13a
14. Disengage turret locking pins.
15a. Rotate machine to the tool change position
and tighten all upper flange bolts to a torque
of 40 N-m, 29.5 ft-lbf or 354 in-lbf.
15b. Rotate machine to the tool change position
and tighten all lower flange bolts to a torque
of 40 N-m, 29.5 ft-lbf or 354 in-lbf.
ALIGNMENT PROCEDURE (CONT.)
Steps 15bSteps 15a
12. Remove the Alignment Bar while still at the active punching station.
13a. Lift up the Alignment Punch while sliding in a piece
of metal on top of Die or Die Carrier and under the
Alignment Punch to disengage tools.
WARNING: It is very important that the tools are NOT
engaged when rotating the turret. Damage to the
Alignment Tool and/or turret is possible.
13b. Lower alignment punch to rest on piece of metal.
Step 12
To Next Page
