Matko SSD Series - Page 6

Optional
XTP-BIR
Optional
SG-Card-SSD
Input-Card-SSD
6
Section 2: Wiring Conguration
Section 2:
Wiring Conguration

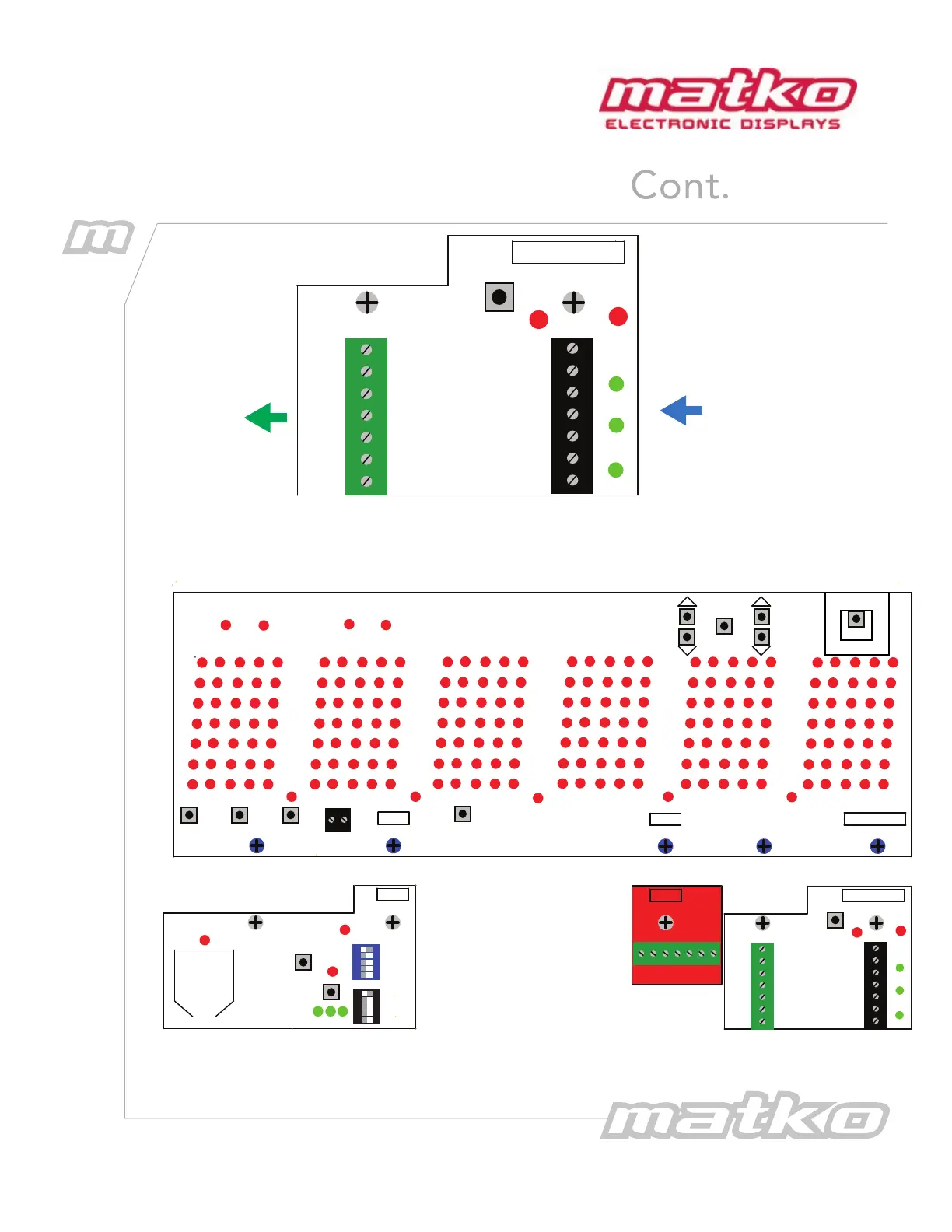

Figure 2.3: L2-SSD with installed cards
Data Input
Data Output
RX 422B
232 RXD
RX 422A
RX CL(+)
RX CL(-)
GROUND
VCC
RESET
+5
NoData
Echo 232
TX 422A
TX 422B
TXD 232
GROUND
Echo CL(+)
Echo CL(-)
Data Input Card
Figure 2.2: Input Card-SSD
RX 422B
232 RXD
RX 422A
RX CL(+)
RX CL(-)
GROUND
VCC
RESET
+5
NoData
Echo 232
TX 422A
TX 422B
TXD 232
GROUND
Echo CL(+)
Echo CL(-)
Data Input Card
VCC Red Ground Green Ground Amber Ground
Signal
Wireless
Receiving
Cong Step
XTP Receiver
Test Mode
ID +8
ID +4
ID +2
ID +1
1200
2400
4800
9600
BAUD
ID
Cong
PWR
CONFIG
RESET
19200
LEARN
RIGHT (+)
LEFT (-)
GND
+12
SSD 2in
Factory
Default
B5
Option
Number
Value
Option
Save
Option Menu
B1
RESET
Wireless Card
SG Card
Input Card
