Matrix A50 Manual

6

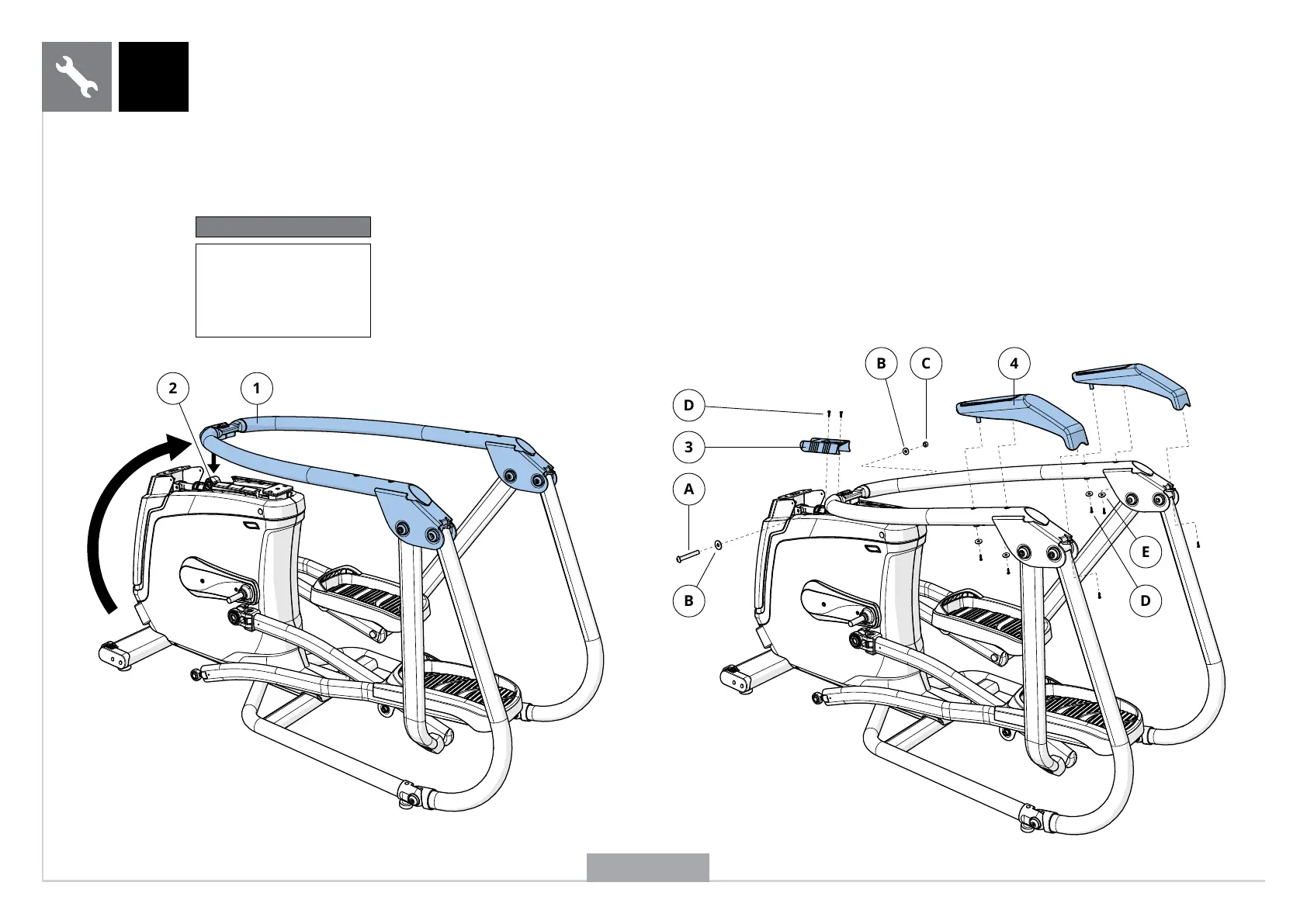

A Open HARDWARE FOR STEP 1.
B Gently lift up top HAND RAIL (1) and align with MAIN FRAME (2).
C Remove the wire tie from the MAIN FRAME (2).
D Attach TOP HAND RAIL (1) to MAIN FRAME (2) using 1 BOLT (A), 2 flat
WASHERS (B), and 1 NUT (C) and tighten to 45.9 Nm / 33.9 lb-ft.
E Attach TOP RAIL BRACKET (3) to TOP HAND RAIL (1) using 2 SCREWS (D).
F Attach HAND RAIL COVERS (4) using 6 SCREWS (D) and 4 FLAT WASHERS (E).
1
2
1
C
4
B
3
D
A
B
E
D
A50 SHOWN
Hardware For Step 1
Description Qty
A
B
C
D
E
Bolt
Flat Washer
Nut
Screw
Flat Washer
1
2
1
8
4
