Matrix C3x - Page 12

12
8
R
L
GREEN BAG
CURVED WASHER x2
8
6
6
6
6
UPPER HANDLEBAR
BOTTLE HOLDER
6
CURVED WASHER x2
SOCKET HEAD BOLT(M8x20L)
20
BLUE
SOCKET HEAD BOLT(M8x16L)
3
GREEN
SOCKET HEAD BOLT(M8x35L)
2
GREEN
SOCKET HEAD BOLT(M8x16L)
4
BLUE
CURVED WASHER
4
BLUE
FLAT WASHER
8
BLUE
FLAT WASHER
5
GREEN

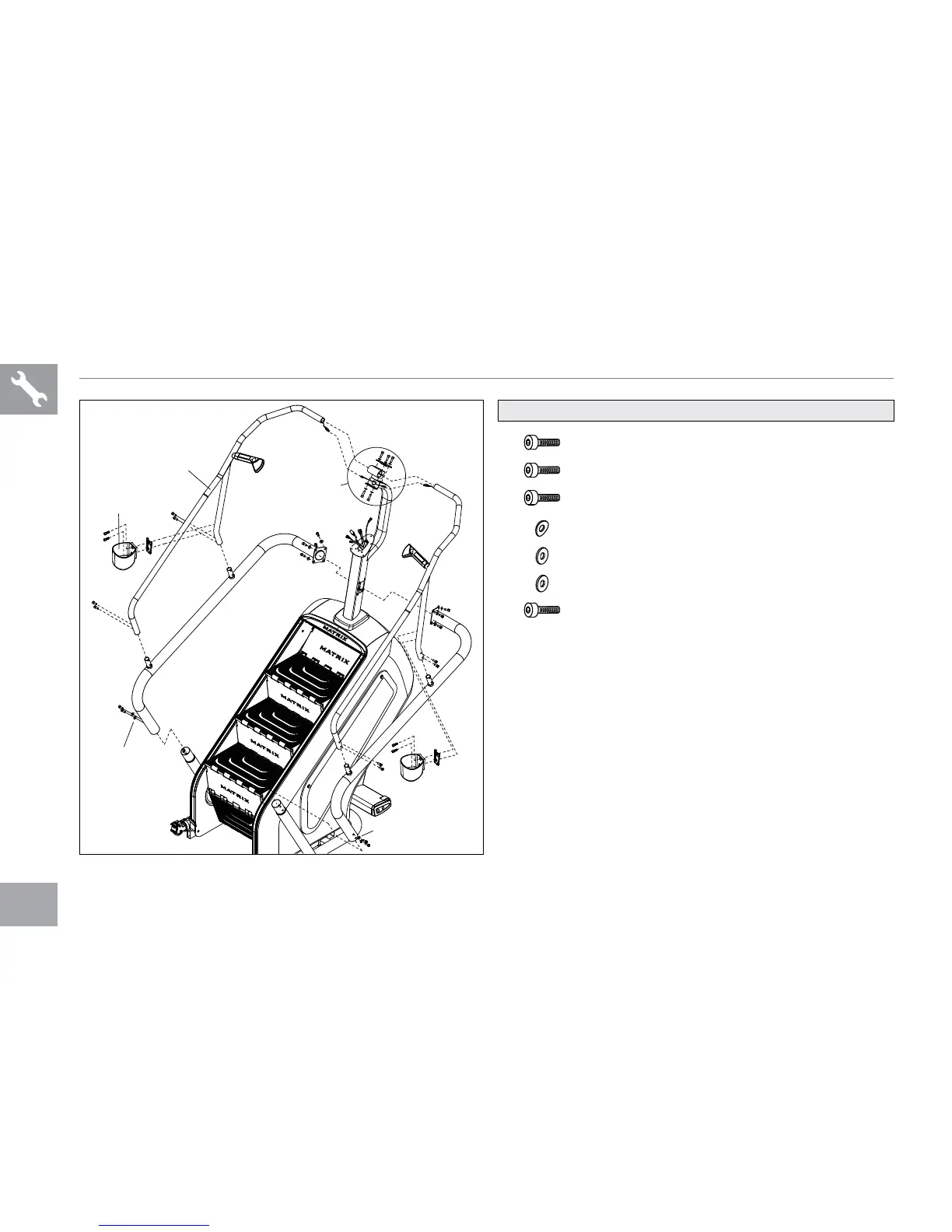

ASSEMBLY STEP 2
 Open BLUE HARDWARE BAG
 Attach Lower Handlebar using provided bolts.
Tighten securely at base and mast.
 Attach Upper Handlebar using provided blots.
Carefully route and connect all wires to the
console mast. Tighten securely.
 Attach Bottle Holder using provided bolts.
 Repeat on the other side.
BLUE & GREEN HARDWARE BAG CONTENTS
