Matrix H5x User Manual

14
8
9
7
G
2
H
I

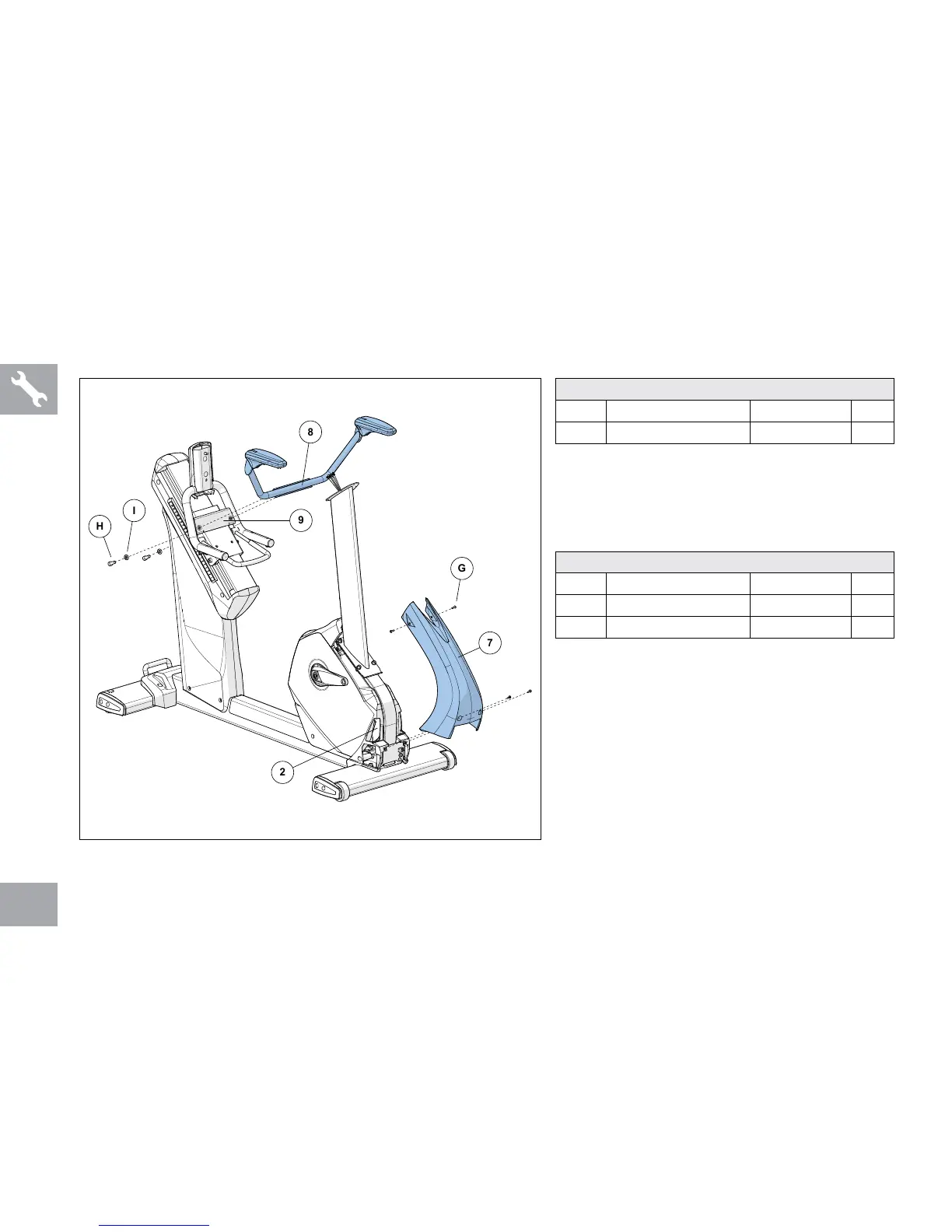

HYBRID ASSEMBLY STEP 3
A Open GREEN HARDWARE BAG.
B Attach the FRONT SHROUD COVER (7) to
the MAIN FRAME (2) using 4 BOLTS (G).
GREEN HARDWARE BAG
PART TYPE DESCRIPTION QTY
G PHILLIP HEAD BOLT M5X12L 4
BLUE HARDWARE BAG
PART TYPE DESCRIPTION QTY
H SOCKET HEAD BOLT M10X25L 2
I HEAVY WASHER Φ10.0XΦ28.0X5.0T 2
A Open BLUE HARDWARE BAG.
B Attach the ARM REST HANDLEBARS (8)
to the SEAT FRAME (9) using 2 BOLTS (H)
and 2 HEAVY WASHERS (I).

Matrix H5x Specifications

General

Brand	Matrix
Model	H5x
Category	Exercise Bike
Language	English
